| Storage Temperature | -20 to 75℃ |
| Type of Product | Switching Power Supply |

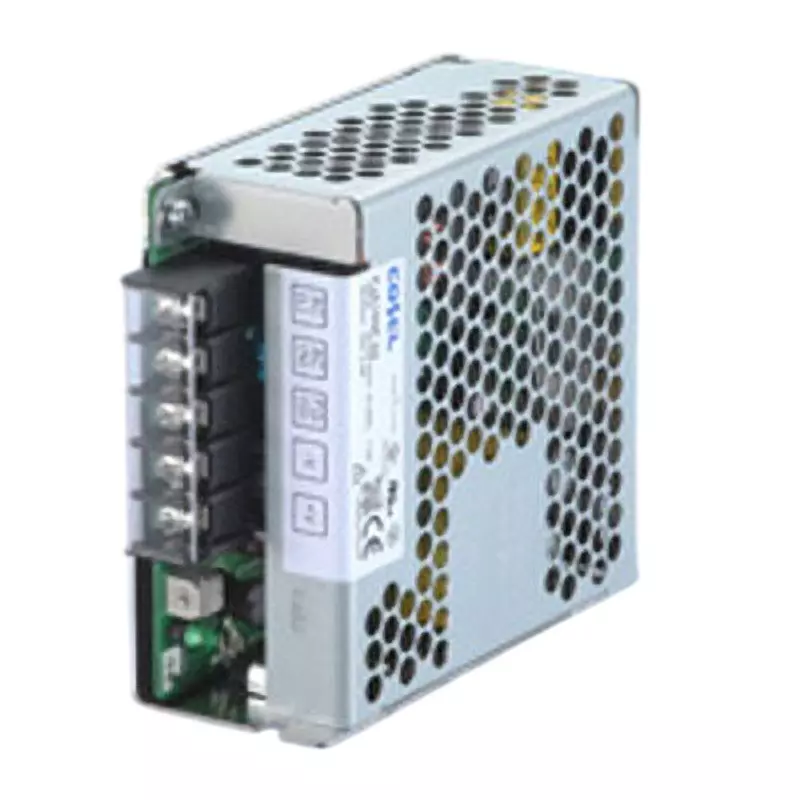

| Model No | PJA100F-24-N2 |
| Power Factor | ACIN 100 V：0.98 typ(Io=90%), ACIN 115/230 V：0.98/0.9 typ(Io=100%) |
Storage Temperature |
-20 to 75℃ |
Type of Product |
Switching Power Supply |
Model No |
PJA100F-24-N2 |
Power Factor |
ACIN 100 V：0.98 typ(Io=90%), ACIN 115/230 V：0.98/0.9 typ(Io=100%) |
Terminal Shape |
Screw |
Rated Output Current (A) |
ACIN 85-115 V: Below ACIN 115 V, output derating is required / ACIN 115-264 V: 4.3 |
Monotaro ID |
19717189 |
Rated Input Voltage (V) |
AC 85 to 264 1Φ |
Shape |
With cover |
Rated Output Power (W) |
ACIN 85-115 V: Output derating required below ACIN 115 V / ACIN 115-264 V: 103.2 |
Function |
Remote sensing: None, Remote control (RC): Optional (option -R external drive power supply required) |
Inrush current (A) |
ACIN 100 V: 16 typ (Io=90%) [Ta=25℃ cold start], ACIN 115/230 V: 16/32 typ (Io=100%) [Ta=25℃ cold start] |
Input Frequency (Hz) |
50/60(47 to 63) |
Safety Standard |
UL62368-1, C-UL (CSA62368-1), EN62368-1, UL508 certified, compliant with the Electrical Safety Law |
Series |
PJ |
Vibration |
19.6 m/s² [10 to 55Hz (2G) cycle 3 minutes each in X, Y, and Z directions for 1 hour] |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Capacity (W) |
100 |
Name of Manufacturer/Packer/Importer |
Cosel |
Input Voltage (V) |
AC85 to 264 1Φ (Output derating is required for voltages less than AC115V. "Derating") |
Operating Temperature (c) |
-20 to 70℃ |
Specifications |
With DIN rail mounting bracket |
Outer Dimensions, Width W x Height H x Depth D (mm) |
41 x 97 x 109 (excluding terminal block and screws) [W x H x D] |
Mass (Kg) |
0.5 (max) |
Cooling Method |
Natural air cooling |
