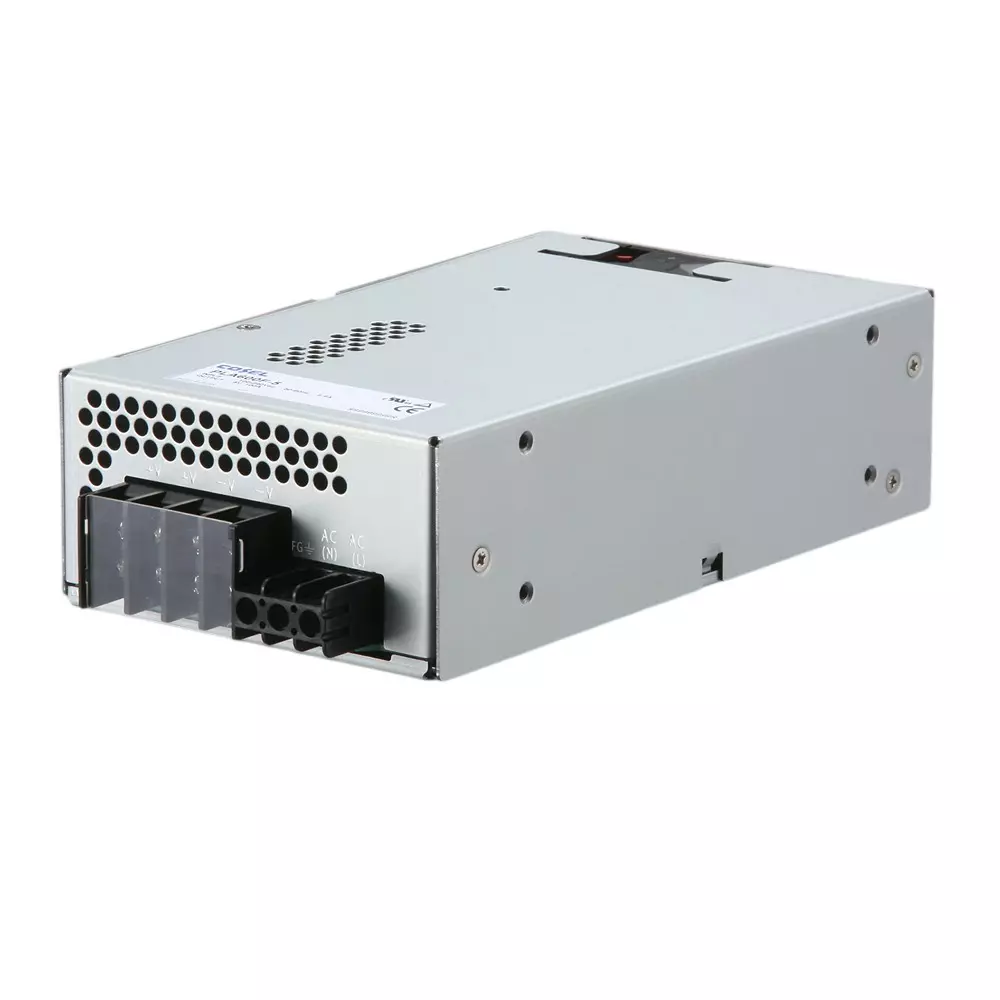

Cosel Power Supply Unit AC 85 to 264 V Input Voltage, PLA600F-24-T2

Name: Cosel Power Supply Unit AC 85 to 264 V Input Voltage, PLA600F-24-T2
Brand: Cosel
SKU: IND.MIS.144146012
Price: 25959 INR
Availability: InStock

Visit the Cosel Store

EMI starts at ₹2306/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Storage Temperature	-20 to 75℃
Type of Product	Power Supply Unit
Model No	PLA600F-24-T2
Power Factor	ACIN 100 V：0.98 typ(Io=90%), ACIN 115/230 V：0.98/0.95 typ(Io=100%)

More Cosel Misc Switch Mode Power Supply (SMPS) products More Misc Switch Mode Power Supply (SMPS) products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Storage Temperature	-20 to 75℃
Type of Product	Power Supply Unit
Model No	PLA600F-24-T2
Power Factor	ACIN 100 V：0.98 typ(Io=90%), ACIN 115/230 V：0.98/0.95 typ(Io=100%)
Terminal Shape	Screw
Rated Output Current (A)	ACIN + 85-115 V: Output derating is required below ACIN + 115 V + / ACIN + 115-264 V: 25
Monotaro ID	19753799
Shape	With cover
Rated Output Power (W)	ACIN 85-115 V: Below 115 V ACIN, output derating is required / ACIN 115-264 V: 600
Function	Remote sensing: Option (Option-W), Remote control (RC) option (Option-R requires external power supply)
Inrush current (A)	ACIN 100 V: 20/24 typ (Io=90%) [primary inrush current value/secondary inrush current value, restart interval 3 seconds or more], ACIN 115 V: 20/40 typ (Io=100%) [primary inrush current value/secondary inrush current value, restart interval 3 seconds or more], ACIN 230 V: 40/40 typ (Io=100%) [primary inrush current value/secondary inrush current value, restart interval 3 seconds or more]
Input Frequency (Hz)	50/60(47 to 63)
Safety Standard	UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No. 62368-1), EN62368-1 certified Den-an law compliant
Series	PL
Vibration	19.6 m/s² [10 to 55Hz (2G) cycle 3 minutes each in X, Y, and Z directions for 1 hour]
Input Current (A)	ACIN 100 V：6.7 typ(Io=90%), ACIN 115/230 V：6.5/3.2 typ(Io=100%)
Country of Origin	Japan
Import Country	Direct Import from Japan
Name of Manufacturer/Packer/Importer	Cosel
Input Voltage (V)	AC85 to 264 1Φ (Output derating is required below AC115V.)
Operating Temperature (c)	-20 to 70℃
Specifications	Horizontal terminal block (without drop prevention mechanism)
Outer Dimensions, Width W x Height H x Depth D (mm)	120 x 61 x 215 (excluding terminal block and screws) [W x H x D]
Mass (Kg)	2 (max)
Cooling Method	Natural air cooling
Output Voltage Adjustment Range	21.6 to 26.4 V
