| Storage Temperature | -20 to 75℃ |

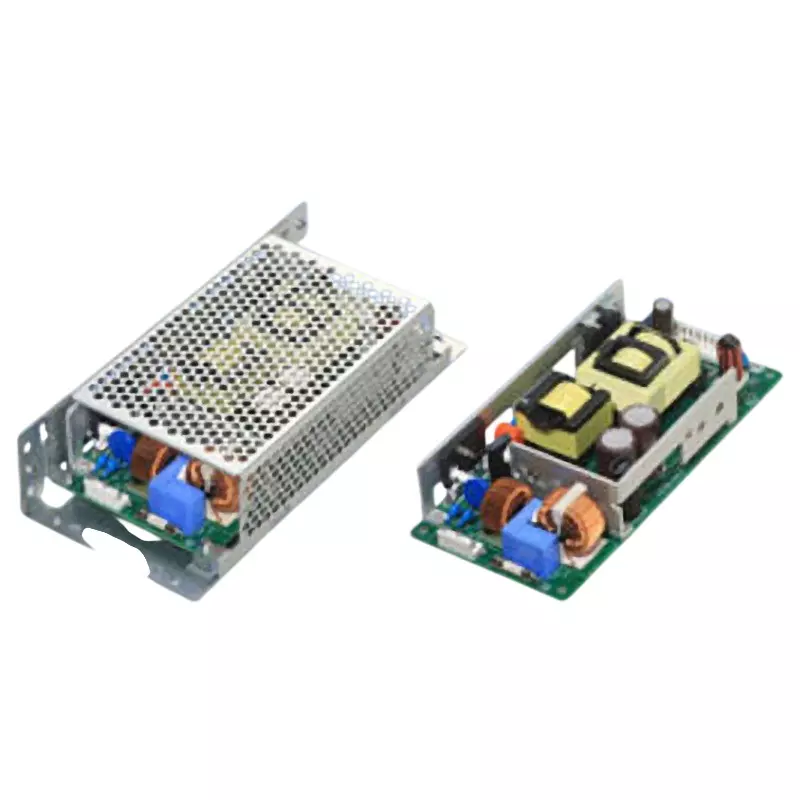

| Type of Product | Switching Power Supply |
| Model No | LHA300F-24-CY |
| Power Factor | ACIN 100/230 V：0.99/0.93 typ |
Storage Temperature |
-20 to 75℃ |
Type of Product |
Switching Power Supply |
Model No |
LHA300F-24-CY |
Power Factor |
ACIN 100/230 V：0.99/0.93 typ |
Rated Output Current (A) |
12.5 |
Monotaro ID |
65056899 |
Rated Output Power (W) |
300 |
Mass (g) |
580 (max) |
Function |
Remote sensing: None, Remote control (RC): Optional (requires external power supply) |
Inrush current (A) |
ACIN 100/230 V: 20/40 typ (Io=100%) [Ta=25℃ cold start] |
Input Frequency (Hz) |
50/60(45 to 66) |
Safety Standard |
UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1), EN62368-1 certified, EN62477-1 (overvoltage category Ⅲ) certified Den-an law compliant |
Series |
LH |
Vibration |
19.6 m/s² [10 to 55Hz (2G) cycle 3 minutes each in X, Y, and Z directions for 1 hour] |
Input Current (A) |
ACIN 100/230 V：3.5/1.6 typ |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Cosel |
Input Voltage (V) |
AC : 85 to 264 1Φ [derating] |
Operating Temperature (c) |
-10 to 70℃ |
Maximum output power |
300 W |
Specifications |
coating |

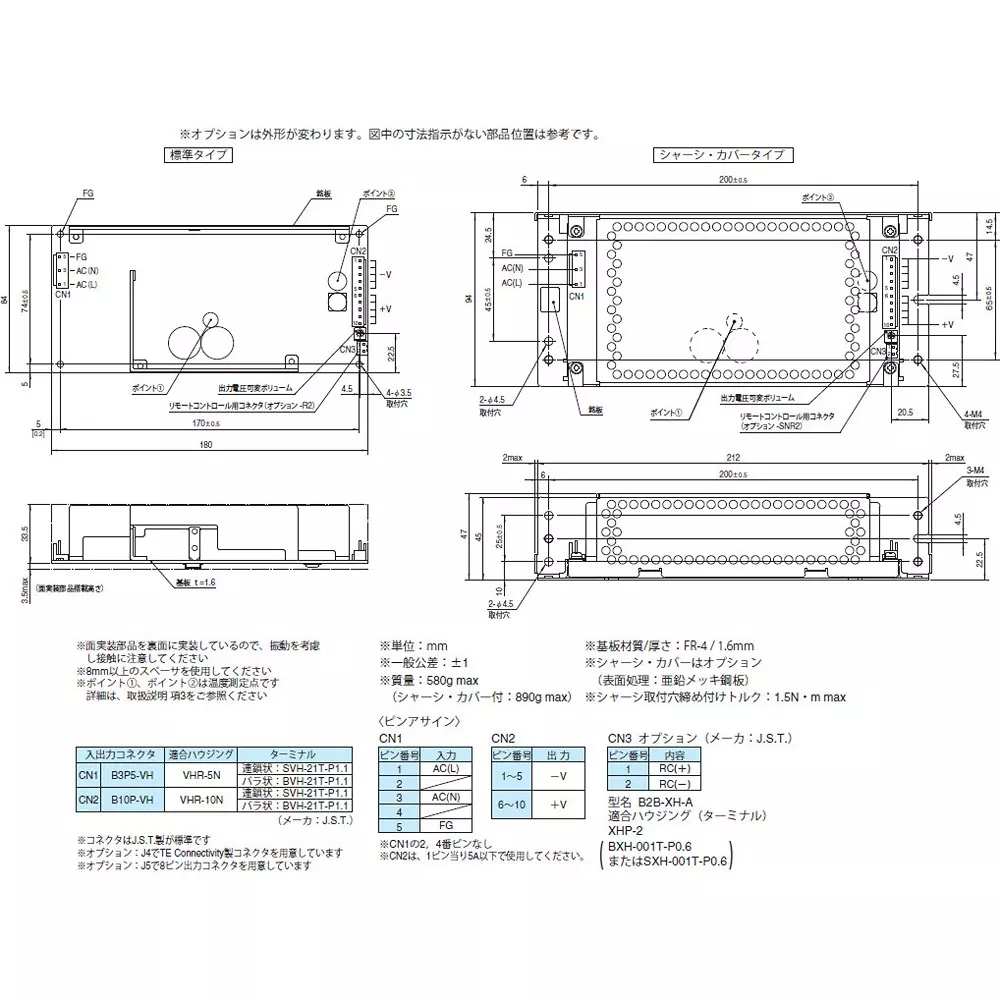

Outer Dimensions, Width W x Height H x Depth D (mm) |
84x37x199(WxHxD) |
Cooling Method |
Natural cooling/forced ventilation [derating] |
Options |
Coating specifications |
Output Voltage Adjustment Range |
22.8 to 26.4 V |
