| Storage Temperature | -20 to 75℃ |
| Type of Product | Switching Power Supply |
| Model No | LHA10F-24 |
| Rated Output Current (A) | 0.5 |
Storage Temperature |
-20 to 75℃ |
Type of Product |
Switching Power Supply |
Model No |
LHA10F-24 |
Rated Output Current (A) |
0.5 |
Monotaro ID |
65058177 |
Rated Output Power (W) |
10 |
Mass (g) |
45 (max) |
Function |
Remote sensing: None |
Inrush current (A) |
ACIN 100/230 V：15/35 typ(Io=100%) |
Input Frequency (Hz) |
50/60(45 to 440) |
Safety Standard |
UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1), EN62368-1 certified, DEN-AN compliant [except for DC input] |
Overcurrent Protection |
Operates at 105% min of rated current, automatically recovers |
Series |
LH |
Vibration |
19.6 m/s² [10 to 55Hz (2G) cycle 3 minutes each in X, Y, and Z directions for 1 hour] |
Input Current (A) |
ACIN 100/230 V：0.26/0.14 typ |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Cosel |
Input Voltage (V) |
AC : 85 to 264 1Φ [derating] |
Operating Temperature (c) |
-10 to 70℃ |
Maximum output power |
12 W |

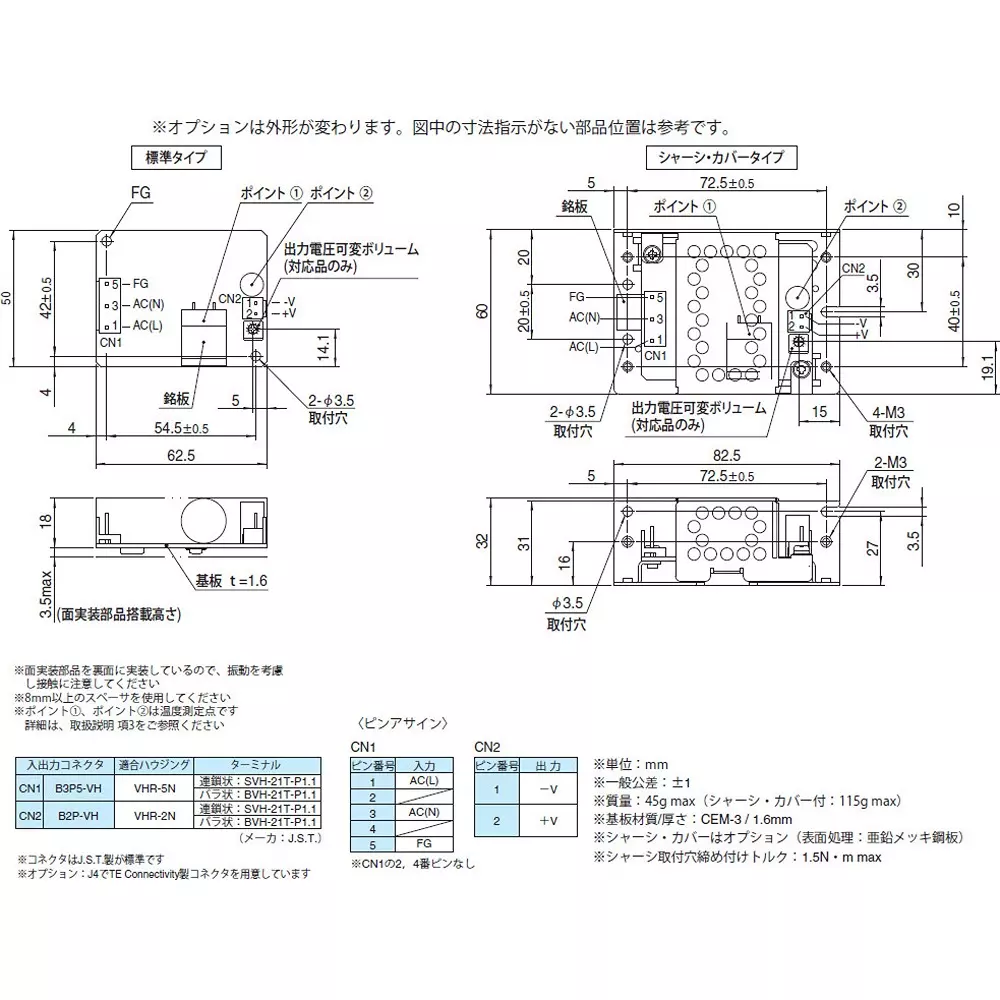

Outer Dimensions, Width W x Height H x Depth D (mm) |
50x21.5x62.5(WxHxD) |
Cooling Method |
Natural cooling/forced ventilation [derating] |
Output Voltage Adjustment Range |
Internally fixed (variable ±10% with option Y specification) |
