| Storage Temperature | -20 to 75℃ |

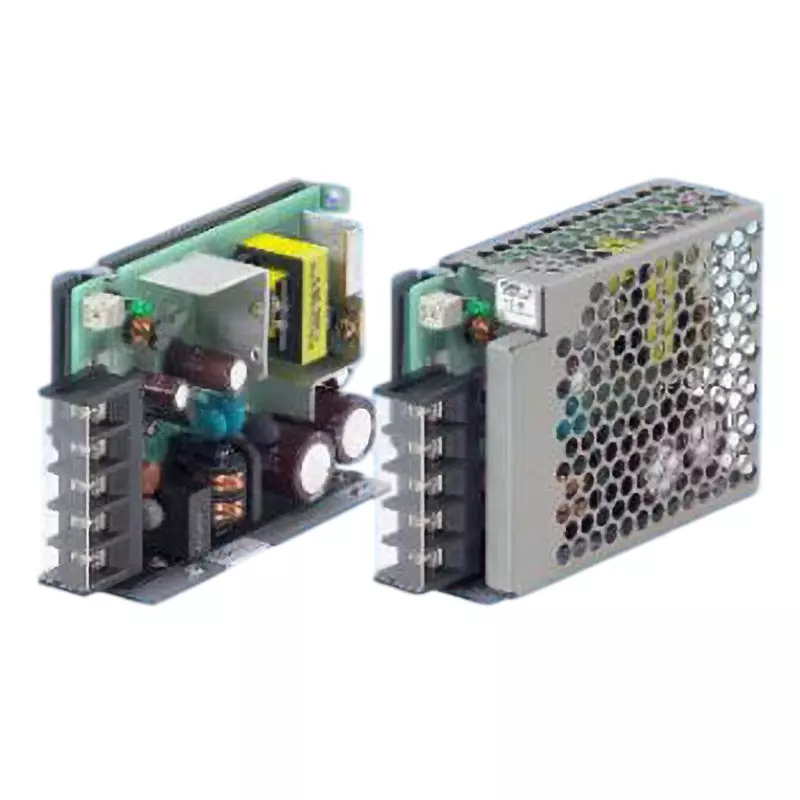

| Type of Product | Power Supply Unit |
| Model No | PBA30F-3R3-CN1 |
| Terminal Shape | Screw |
Storage Temperature |
-20 to 75℃ |
Type of Product |
Power Supply Unit |
Model No |
PBA30F-3R3-CN1 |
Terminal Shape |
Screw |
Rated Output Current (A) |
6 |
Monotaro ID |
89506095 |
Rated Input Voltage (V) |
AC 85 to 264 1Φ or DC 110 to 370 |
Shape |
With cover / Directly on DIN rail |
Rated Output Power (W) |
30 |
Mass (g) |
310 (max) |
Function |
Remote Control (RC): No |
Inrush current (A) |
ACIN 100/200 V: 15/30 typ(lo=100%)(at cold start) |
Input Frequency (Hz) |
50/60(47 to 440)or DC |
Safety Standard |
UL60950-1, C-UL (CSA60950-1), EN62368-1 certified, compliant with the Electrical Safety Act (except for DC input) |
Series |
PB |
Vibration |
19.6 m/s² [10 to 55Hz (2G) cycle 3 minutes each in X, Y, and Z directions for 1 hour] |
Input Current (A) |
ACIN 100/200 V：0.5/0.3 typ(lo=100%) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Cosel |
Input Voltage (V) |
AC 85 to 264 1Φ/DC 110 to 370 |
Operating Temperature (c) |
-10 to 71℃ (with derating) |
Specifications |
Coating, case cover, DIN rail mounting bracket included (UL508 certified [5V, 12V, 24V]) |
Outer Dimensions, Width W x Height H x Depth D (mm) |
31 x 78 x 103 (excluding terminal block) [W x H x D] |
Cooling Method |
Natural air cooling |
