| Storage Temperature | -20 to 75℃ |
| Type of Product | Switching Power Supply |
| Model No | LHA75F-24-SNY |
| Power Factor | ACIN 100/230 V：0.97/0.8 typ |
Storage Temperature |
-20 to 75℃ |
Type of Product |
Switching Power Supply |
Model No |
LHA75F-24-SNY |
Power Factor |
ACIN 100/230 V：0.97/0.8 typ |
Rated Output Current (A) |
3.2 |
Monotaro ID |
65057915 |
Shape |
With cover |
Rated Output Power (W) |
75 |
Mass (g) |
370 (max) |
Function |
Remote sensing: None |
Inrush current (A) |
ACIN 100/230 V: 15/35 typ (Io=100%) [Ta=25℃ cold start] |
Input Frequency (Hz) |
50/60(45 to 66) |
Safety Standard |
UL62368-1, C-UL (equivalent to CAN/CSA-C22.2 No.62368-1), EN62368-1 certified, DEN-AN compliant [except for DC input] |
Series |
LH |
Vibration |
19.6 m/s² [10 to 55Hz (2G) cycle 3 minutes each in X, Y, and Z directions for 1 hour] |
Input Current (A) |
ACIN 100/230 V：0.9/0.5 typ |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Cosel |
Input Voltage (V) |
AC : 85 to 264 1Φ [derating] |
Operating Temperature (c) |
-10 to 70℃ |
Maximum output power |
76.8 W |
Specifications |
Chassis cover with volume |

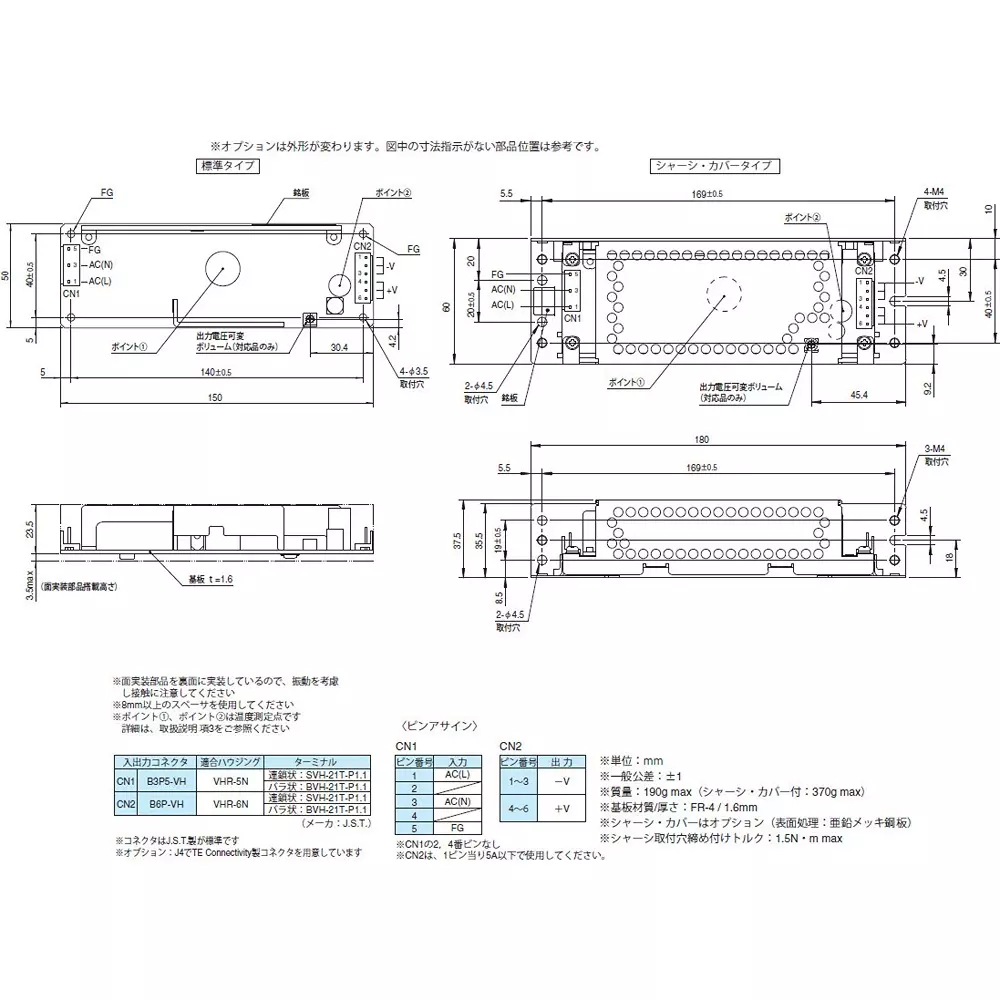

Outer Dimensions, Width W x Height H x Depth D (mm) |
50x27x150(WxHxD) |
Cooling Method |
Natural cooling/forced ventilation [derating] |
Options |
Chassis cover with volume control |
