| Storage Temperature | -20 to 75℃ |

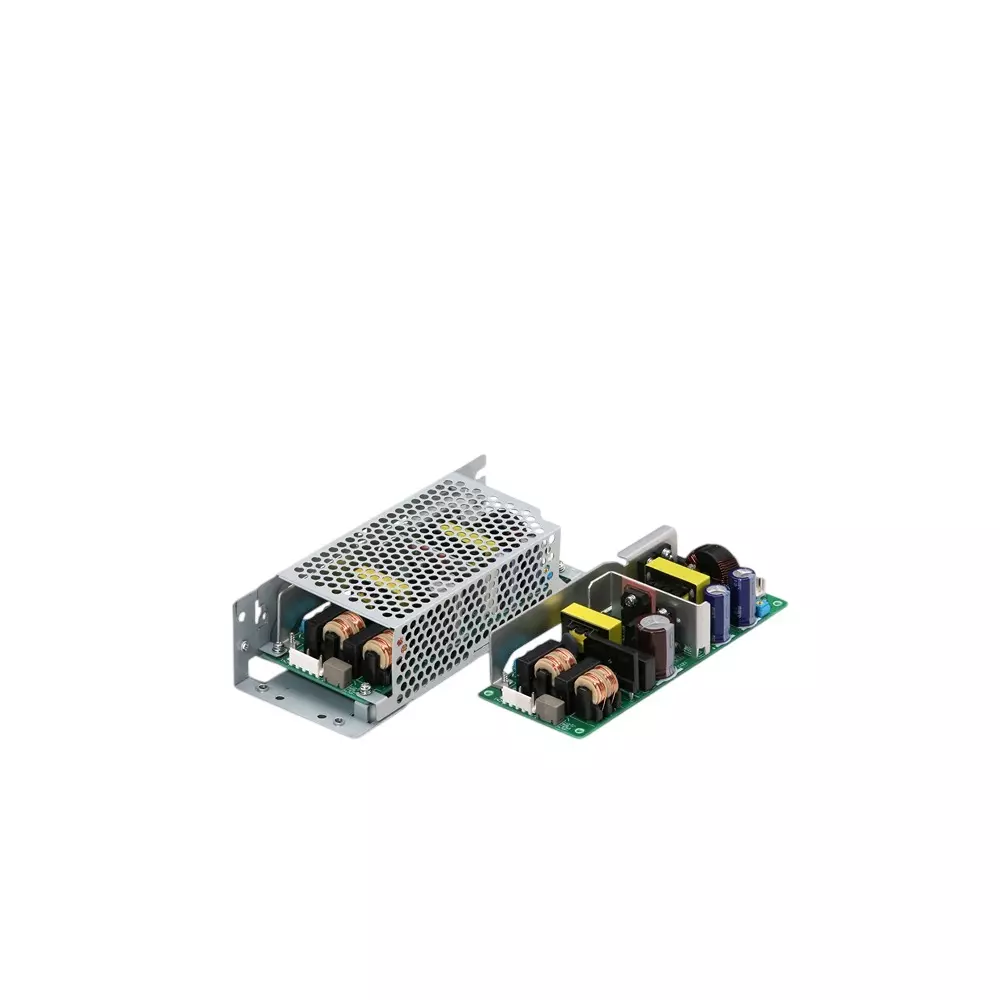

| Type of Product | Switching Power Supply |
| Model No | LFA100F-12-J1Y |
| Power Factor | ACIN 100/200 V：0.99/0.95 typ(Io=100%) |
Storage Temperature |
-20 to 75℃ |
Type of Product |
Switching Power Supply |
Model No |
LFA100F-12-J1Y |
Power Factor |
ACIN 100/200 V：0.99/0.95 typ(Io=100%) |
Rated Output Current (A) |
8.5 |
Monotaro ID |
19714337 |
Rated Input Voltage (V) |
AC 85 to 264 1Φ |
Shape |
Substrate alone |
Rated Output Power (W) |
100 |
Mass (g) |
280 (max) |
Function |
Remote sensing: None, Remote control (RC): Optional (requires external power supply) |
Inrush current (A) |
ACIN 100/200 V: 15/30 typ (Io=100%) [cold start, room temperature] |
Input Frequency (Hz) |
50/60(47 to 63) |
Safety Standard |
UL60950-1, C-UL (CSA60950-1), EN62368-1 certified, compliant with the Electrical Safety Law |
Series |
LF |
Vibration |
19.6 m/s² [10 to 55Hz (2G) cycle 3 minutes, 1 hour each in X, Y, and Z directions] |
Input Current (A) |
ACIN 100/200 V：0.13/0.7 typ(Io=100%) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Cosel |
Input Voltage (V) |
AC 85 to 264 1Φ [derating] |
Operating Temperature (c) |
-10 to 70℃ |
Specifications |
With volume, VH (JST) connector |
Outer Dimensions, Width W x Height H x Depth D (mm) |
62x33.5x155(WxHxD) |
Cooling Method |
Natural cooling [derating] |
