| Type of Product | Standard Power Supply |
| Model No | PDA15F-24-N |
| Frequency (Hz) | 50 / 60(45 to 440) |
| Rated Output Voltage (V) | DC 24 |
Type of Product |
Standard Power Supply |
Model No |
PDA15F-24-N |
Frequency (Hz) |
50 / 60(45 to 440) |
Rated Output Voltage (V) |
DC 24 |
Rated Output Current (A) |
0.7 |
Monotaro ID |
61629367 |
Rated Output Power (W) |
15 |
Mass (g) |
210 max |

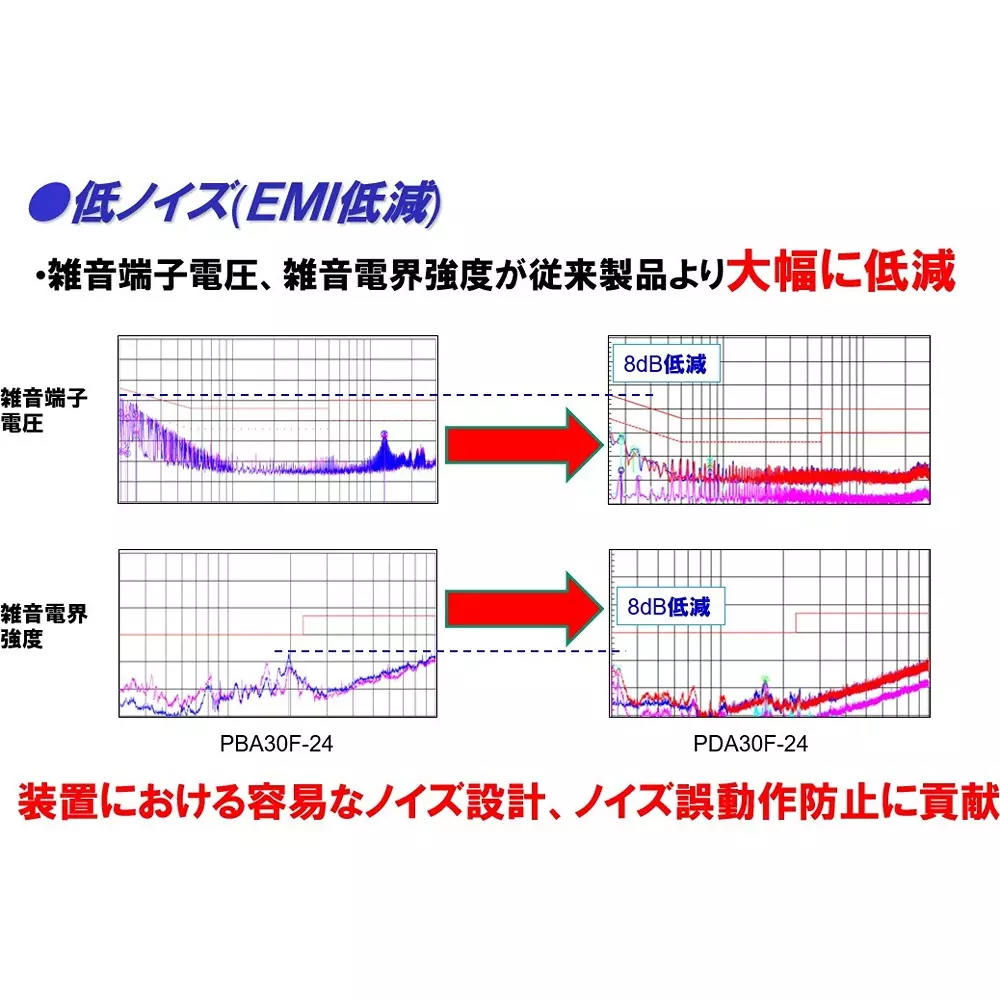

Output ripple noise voltage |
max150mVp-p(0 to +50℃), max180mVp-p(- 10 to 0℃), max360mVp-p(Io=0 to 10%) |
Mounting |
With cover |

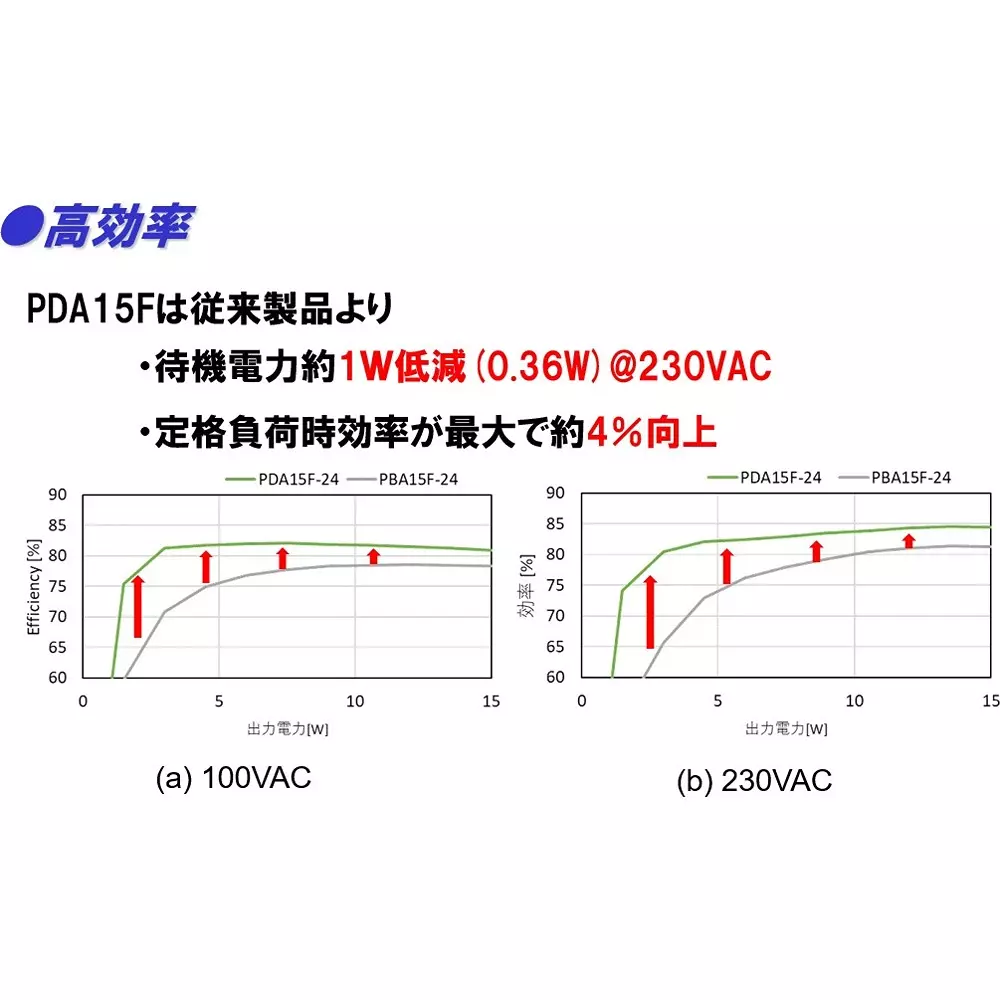

Efficiency (%) |
(100/230 V)81.5typ (%)/83.5typ (%) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Cosel |
Input Voltage (V) |
AC 85 to 264/1Φ |
Maximum output power |
16.8 |
RoHS Directive |
Correspondence |

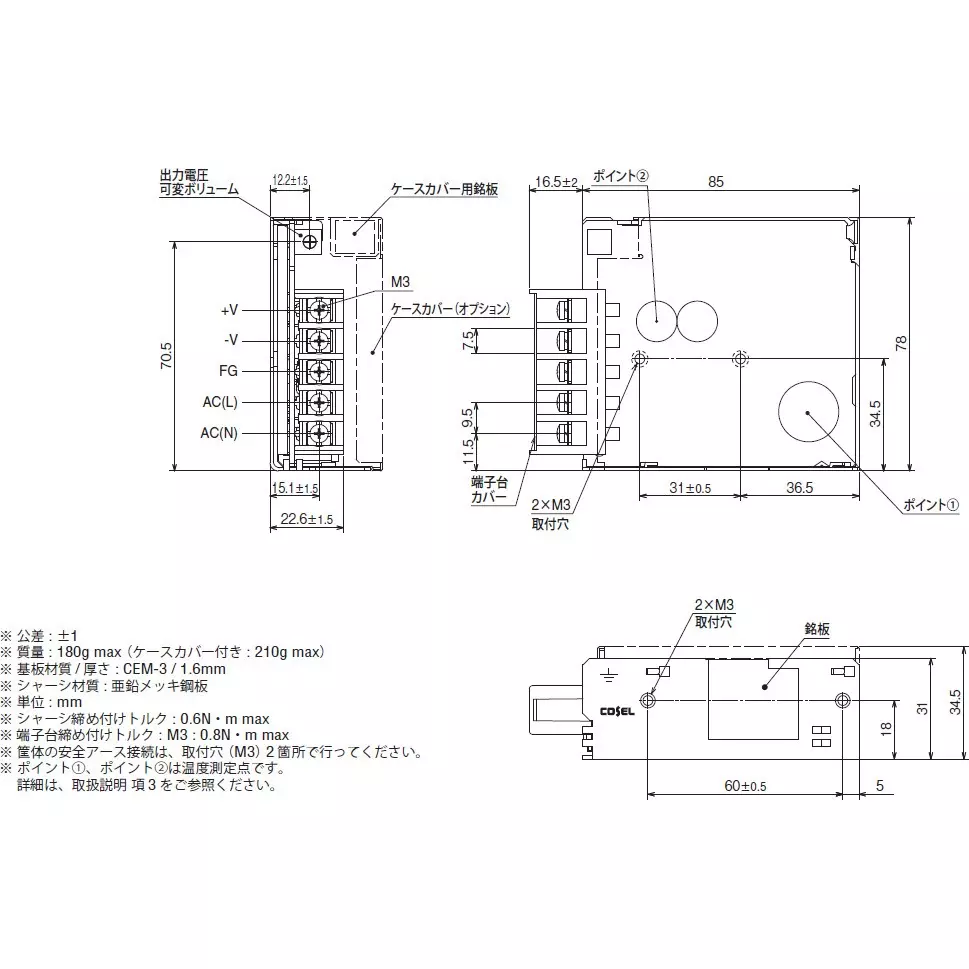

Outer Dimensions, Width W x Height H x Depth D (mm) |
31x78x85 mm (not including terminal block) |
