| Storage Temperature | -25 to 75 °C |

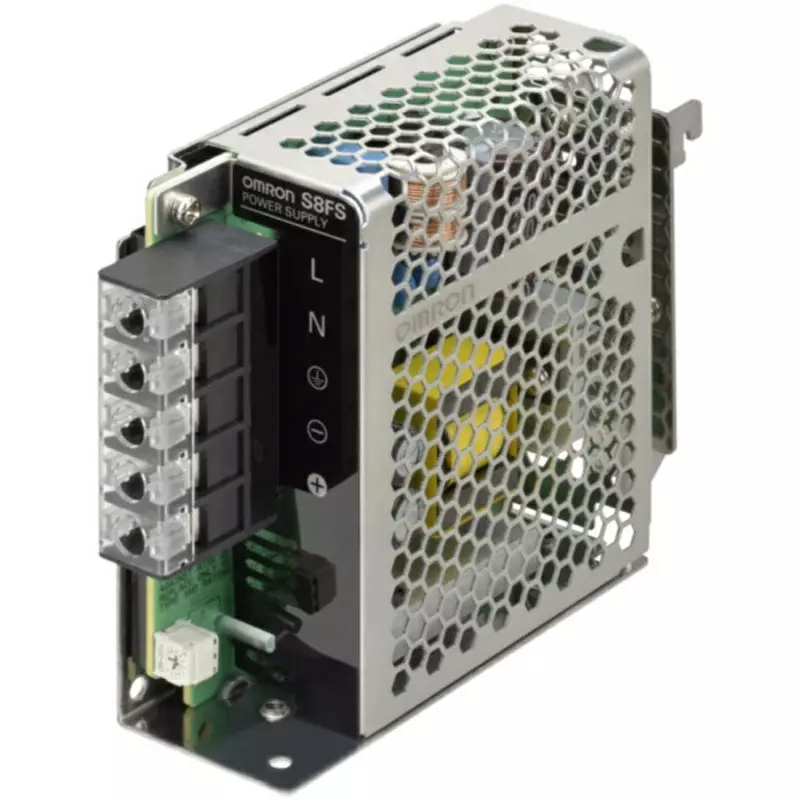

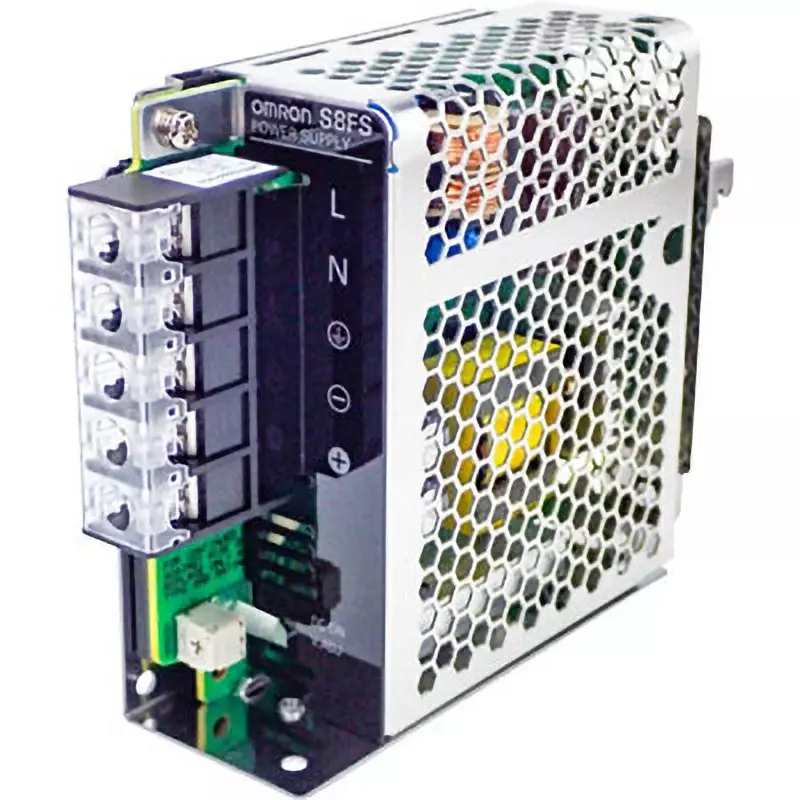

| Type of Product | Switching Power Supply |
| Model No | S8FS-G05012CD |
| Category | Misc Switch Mode Power Supply |
Storage Temperature |
-25 to 75 °C |
Type of Product |
Switching Power Supply |
Model No |
S8FS-G05012CD |
Category |
Misc Switch Mode Power Supply |
Terminal Shape |
Screw terminal block |
Rated Output Current (A) |
4.3 |
Monotaro ID |
66517955 |
Rated Input Voltage (V) |
AC100 to 240 |
Shape |
With cover |
Mass (g) |
300 |
Insulation Resistance |
100 or more, DC500V (between all output terminals) and (all input terminals) |
Structure |
With cover / DIN rail mounting |
Output Voltage (V) |
12 |
Output Current (A) |
4.3 |
Standard |
EMS: EN 61204-3 high severity levels/SEMI F47-0706 (at AC200 V input) |
Country of Origin |
China |
Import Country |
Direct Import from Japan |
Type of Sign |
DIN rail mounting |
Capacity (W) |
50 |
Connection Type |
Terminal Block |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Input Voltage (V) |
AC100-240 (acceptable range AC85-264, DC80-370) |
