Ships within 19 days
Rated Output Current (A)
Model No
View
View
View
View
| Storage Temperature | -40 to 85 (no condensation or freezing) |
| Type of Product | Switching Power Supply |

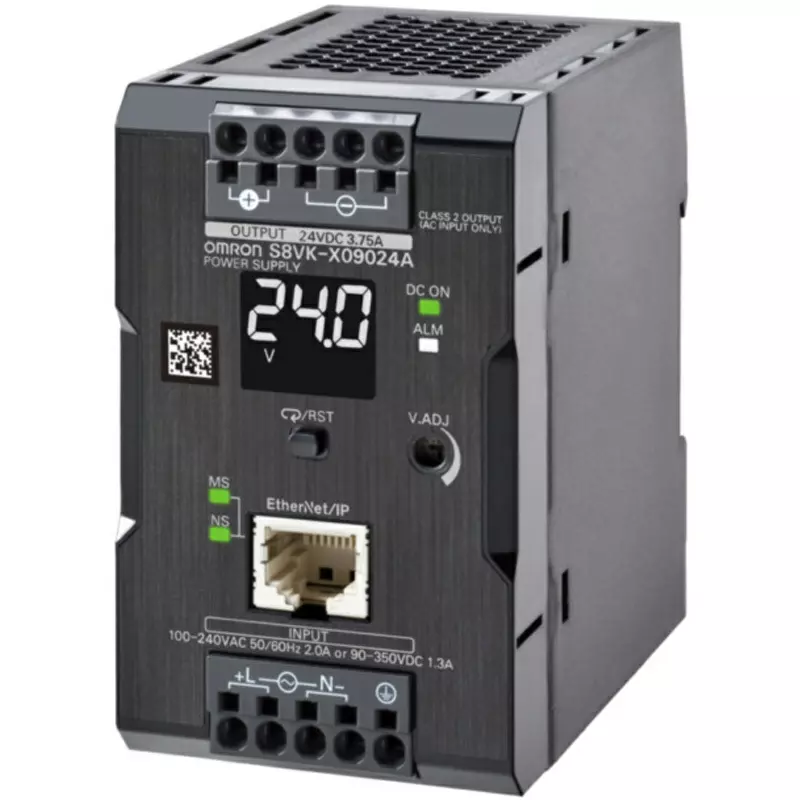

| Model No | S8VK-X09024A-EIP |
| Power Factor | - |
Storage Temperature |
-40 to 85 (no condensation or freezing) |
Type of Product |
Switching Power Supply |
Model No |
S8VK-X09024A-EIP |
Power Factor |
- |
Protection Class |
According to IP20, EN / IEC 60529 |
Rated Output Voltage (V) |
24 V |
Rated Output Current (A) |
3.75 A |
Monotaro ID |
63702145 |
Rated Input Voltage (V) |
AC100~240 |
Rated Output Power (W) |
90 W |
Mass (g) |
350 or less |
Inrush current (A) |
At AC115/230V input: 16/32 typ |
Safety Standard |
- |
Operation Ambient Temperature |
-40 to 70 (with derating depending on temperature) (no condensation or freezing) |
Insulation Resistance |
100 or more, DC500V (between all output terminals) and (all input terminals) / 100 or more, DC500V (between all EtherNet/IP ports) and (all input terminals) |
Shock Resistance |
150 (3 times in 6 directions) |
Structure |
Type with cover |
Output Voltage (V) |
DC24 |
Standard |
- |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Capacity (W) |
90 |
Connection Type |
Terminal block |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Included Components |
- |
Terminal Block |
Push-in Plus terminal block |
Looking for bulk pricing or different specifications?
