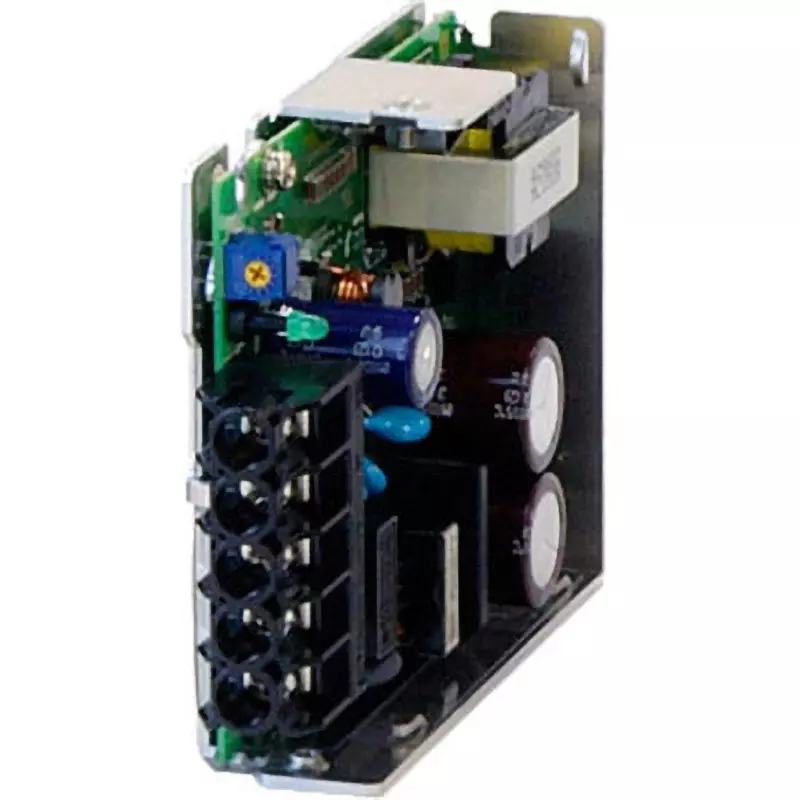

| Type of Product | Switching Power Supply |
| Model No | HWS30A-15/HD |
| Rated Output Voltage (V) | DC 15 |
| Terminal Shape | Screw |
Type of Product |
Switching Power Supply |
Model No |
HWS30A-15/HD |
Rated Output Voltage (V) |
DC 15 |
Terminal Shape |
Screw |
Monotaro ID |
49728124 |
Input Voltage Range (V) |
DC 120 to 370 |
Shape |
Open frame |
Rated Output Power (W) |
30 |
Input Frequency (Hz) |
47 to 63 |
Output ripple noise voltage |
150 mV(0≦Ta≦70℃), 180 mV(－10≦Ta<0℃) |
Output Current (A) |
(Maximum) 2 |
Efficiency (%) |
(100/200 V AC) 85%/87% |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
TDK-LAMBDA |
Maximum output power |
30 W |
Cooling Method |
Natural air cooling |
Output Voltage Adjustment Range |
DC 12 to DC 18 V |
Precautions & Limitations |
Be careful not to turn the voltage adjustment volume knob too much. It may cause a product failure. |
