| Storage Temperature | -30 to 85℃ |

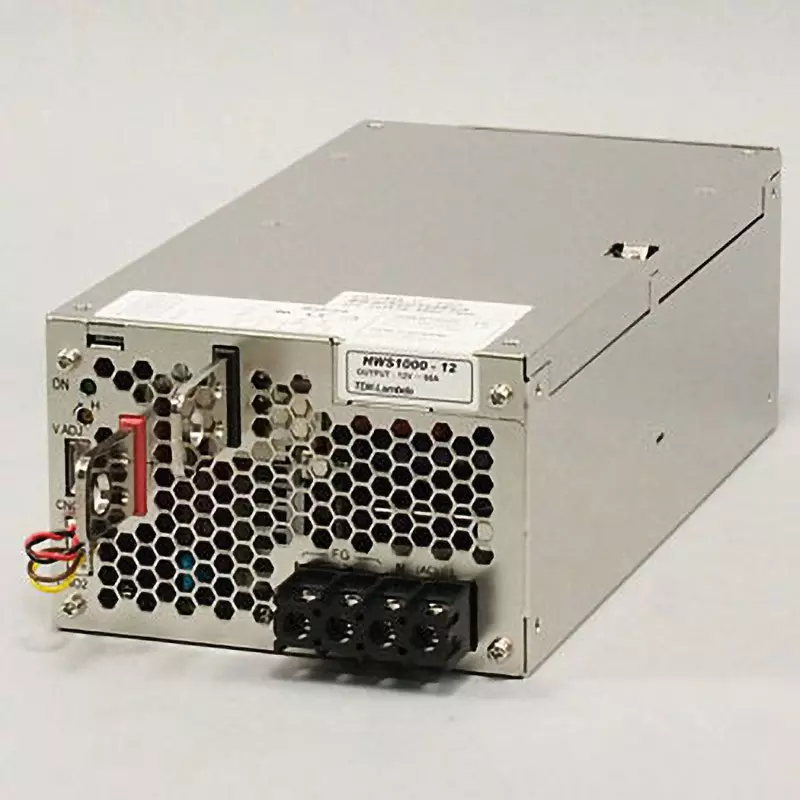

| Type of Product | Switching Power Supply |
| Model No | HWS1000-12 |
| Power Factor | (100/200 V AC) 0.98/0.95 |
Storage Temperature |
-30 to 85℃ |
Type of Product |
Switching Power Supply |
Model No |
HWS1000-12 |
Power Factor |
(100/200 V AC) 0.98/0.95 |
Terminal Shape |
Screw |
Monotaro ID |
39182735 |
Shape |
With cover |
Mass (g) |
3200 |
Function |
Overvoltage protection, overcurrent protection, remote sensing, remote ON / OFF, parallel operation, series operation, monitoring signal (PF / open collector output), input instantaneous voltage drop protection (SEMI-F47 compliant / 200 VAC only) |
Type |
Standard type |
Mounting |
With chassis (unit) |
Withstand Voltage |
Input-FG / 2 kV AC (20 mA), Input-Output / 3 kV AC (20 mA), Output-FG / 500 V AC (300 mA), Output-CNT / 100 V AC (100 mA) 1 min each |
Output Current (A) |
(Maximum) 88 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Width (mm) |
126.5 |
No. of Phases |
Single-phase |
Name of Manufacturer/Packer/Importer |
TDK-LAMBDA |
Length (mm) |
240 |
Leakage Current |
1.2 mA or less |
Specifications |
ROHS directive compliant |

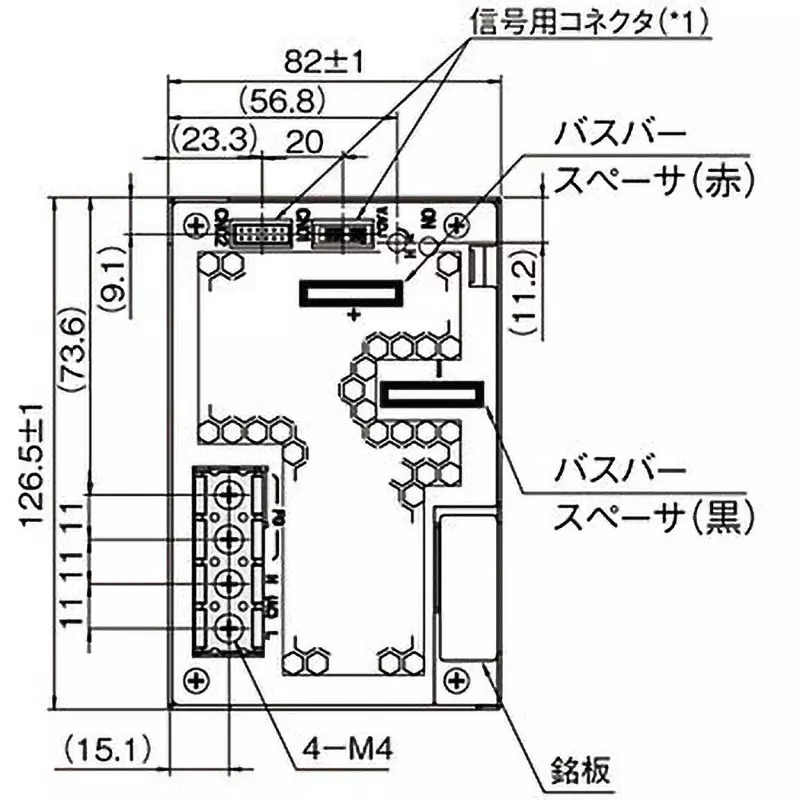

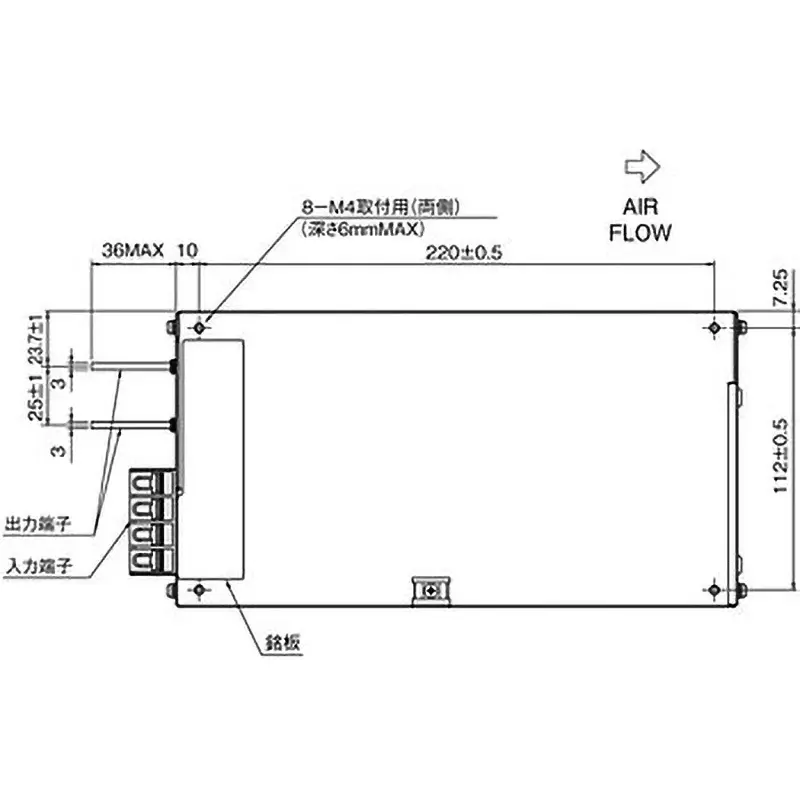

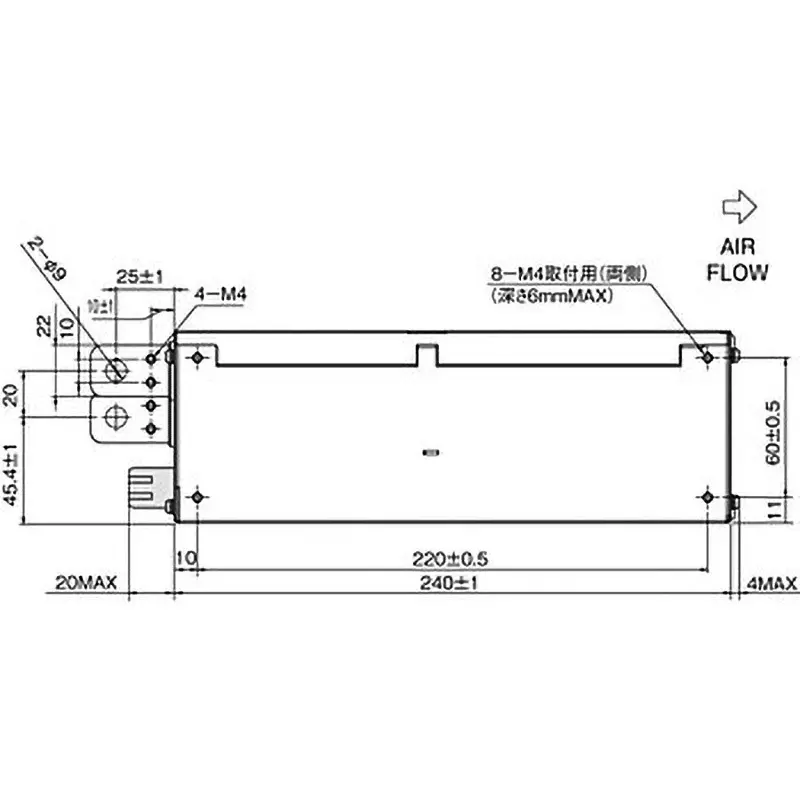

Outer Dimensions, Width W x Height H x Depth D (mm) |
126.5x82x240 |
Cooling Method |
Forced air cooling |
Insulation Resistance (MOhm) |
100min (between output and FG: 500VDC, 25℃, 70%RH), 10min (between output and CNT: 100VDC, 25℃, 70%RH) |
Applicable Standard |
Noise terminal voltage, noise electric field strength: Compliant with EN55011/EN55032-B, FCC-B, VCCI-B, CISPR-B |
Height (mm) |
82 |
