TDK-LAMBDA Switching Power Supply 1000 W Rated Output Power, HWS1000L-24

Name: TDK-LAMBDA Switching Power Supply 1000 W Rated Output Power, HWS1000L-24
Brand: TDK-LAMBDA
SKU: IND.MIS.644070910
Price: 71979 INR
Availability: InStock

Visit the TDK-LAMBDA Store

EMI starts at ₹6395/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Storage Temperature	-40 to +85℃
Type of Product	Switching Power Supply
Model No	HWS1000L-24
Power Factor	(115/230 V AC)0.98/0.95

More TDK-LAMBDA Misc Switch Mode Power Supply (SMPS) products More Misc Switch Mode Power Supply (SMPS) products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Storage Temperature	-40 to +85℃
Type of Product	Switching Power Supply
Model No	HWS1000L-24
Power Factor	(115/230 V AC)0.98/0.95
Terminal Shape	Screw
Monotaro ID	39182665
Shape	With cover
Rated Output Power (W)	1000
Mass (g)	2300
Function	Overcurrent protection, overvoltage protection, remote sensing, remote ON / OFF, parallel operation, series operation, monitoring signal (ALM / open collector output), input instantaneous voltage drop protection (SEMI-F47 / 200VAC only) compliant
Type	Standard type
Input Frequency (Hz)	47 to 63
Safety Standard	UL60950-1, CSA60950-1, EN60950-1, EN50178, UL60601-1, EN60601-1, CSA-C22.2 + No.601.1-M90 + Certified, Electrical Appliance and Material Safety Law, EN61010-1 + compliant
Load Fluctuation	(Max) 144 mA
Input Fluctuation	(Maximum) 96 mV
Withstand Voltage	Input-Output / 4.0 kV AC (20 mA), Input-FG / 2.0 kV AC (20 mA), Output-FG / 500 V AC (100 mA), Output-CNT / ALM / AUX / 100 V AC (100 mA) 1min each
Output Current (A)	(Maximum) 44 (at 51 / 170-265 V AC)
Country of Origin	Japan
Import Country	Direct Import from Japan
Name of Manufacturer/Packer/Importer	TDK-LAMBDA
Leakage Current	115VAC / 0.1 ( typ), 230VAC / 0.2 ( typ)
Specifications	Compliant with RoHS directive

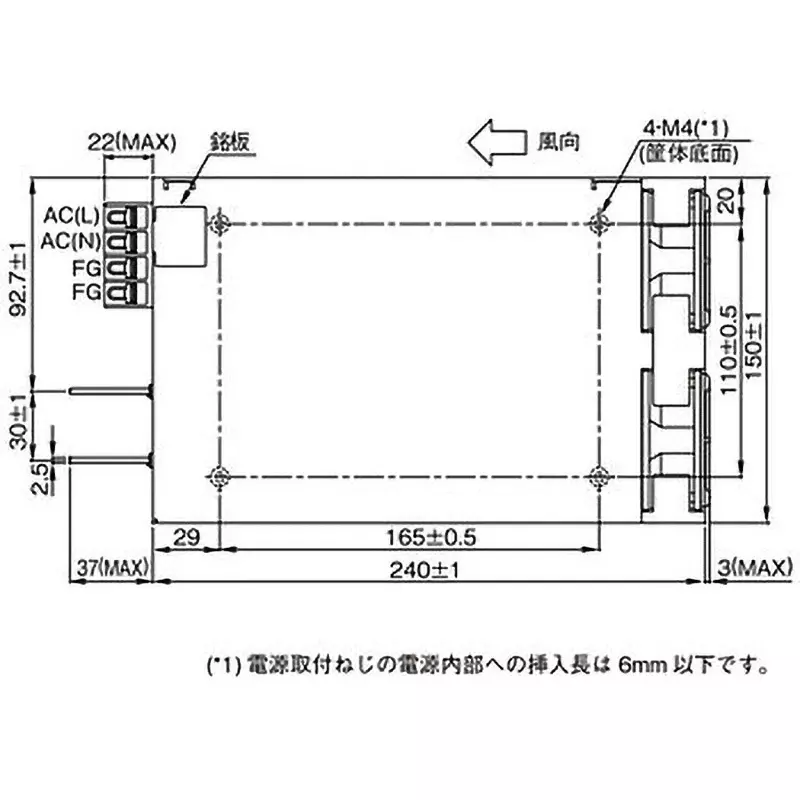

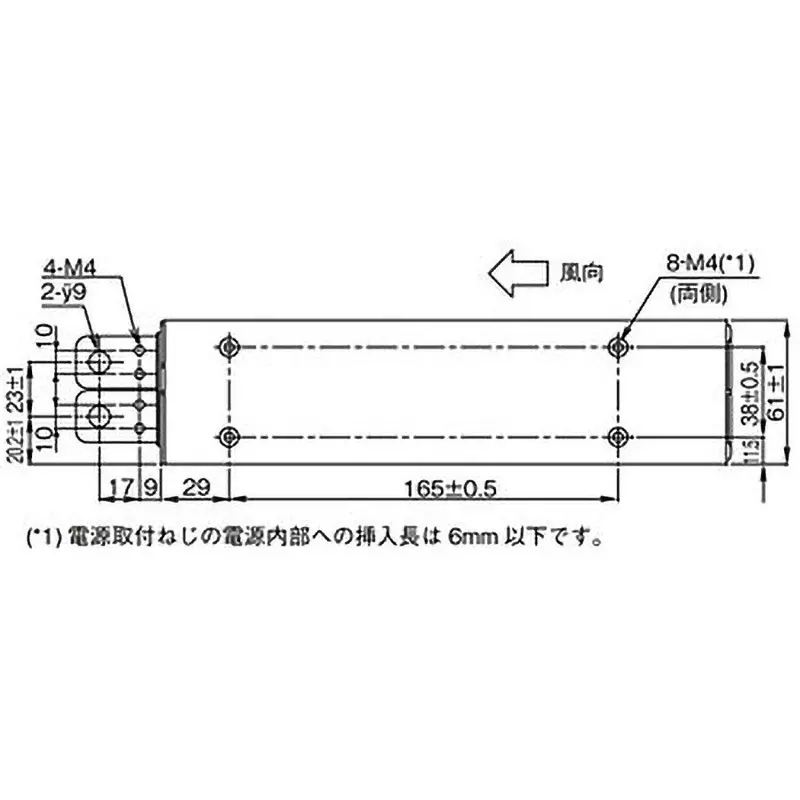

Outer Dimensions, Width W x Height H x Depth D (mm)	150x61x240
Cooling Method	Forced air cooling with built-in fan
Insulation Resistance (MOhm)	50 or more (500VDC / input-FG, input-output, output-FG), 50 or more (100VDC / output-CNT / ALM / AUX) Ta = 25 ° C, 70% Rh
Applicable Standard	Noise terminal voltage, noise field strength: VCCI-B, FCC-B, EN55011/EN55022-B compliant Immunity: EN61000-4-2 (Level 2, 3), -3 (Level 3), -4 (Level 3), -5 (Level 3, 4), -6 (Level 3), -8 (Level 4), -11 compliant
