| Storage Temperature | -30 to 85℃ |

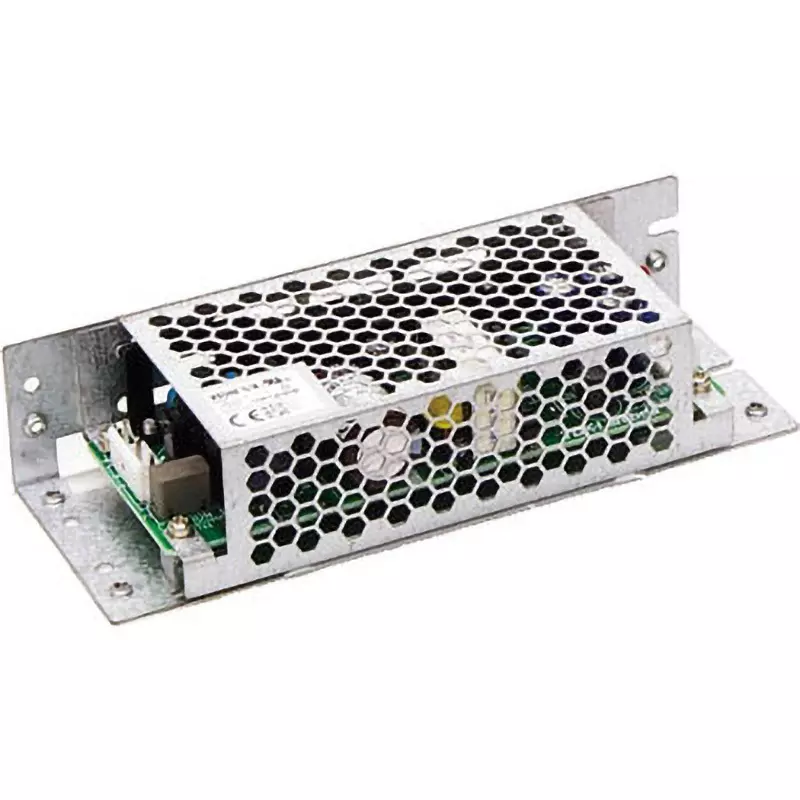

| Type of Product | Switching Power Supply |
| Model No | VS50E-15/A |
| Terminal Shape | Connector |
Storage Temperature |
-30 to 85℃ |
Type of Product |
Switching Power Supply |
Model No |
VS50E-15/A |
Terminal Shape |
Connector |
Monotaro ID |
25552827 |
Rated Output Power (W) |
50 |
Mass (g) |
280 |
Type |
With cover |
Vibration Resistance |
10 to 55 Hz (sweep for 1 minute) 19.6 m/s² constant, 1 hour in each of X, Y, and Z directions |
Input Frequency (Hz) |
47 to 63 |
Safety Standard |
Certification: CSA60950-1, EN60950-1, UL60950-1, CSA62368-1, EN62368-1, UL62368-1, EN50178, Compliant with: Electrical Appliance and Material Safety Act |
Input Current (A) |
1.1000000000000001 |
Mounting |
Cover and L-shaped metal plate included |
Withstand Voltage |
Input-FG / 2kVAC (10 mA), Input-Output / 2kVAC (10 mA), Output-FG / 500VAC (20 mA) 1min each |
Output Current (A) |
(Maximum) 3.5 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Width (mm) |
60 |
No. of Phases |
Single-phase |
Name of Manufacturer/Packer/Importer |
TDK-LAMBDA |
Length (mm) |
162 |
Leakage Current |
0.5 mA or less |
Cooling Method |
Natural air cooling |
Insulation Resistance (MOhm) |
100min (Output-FG: 500 V DC, 25℃, 70%RH) |
Applicable Standard |
Noise terminal voltage, noise field strength: Compliant with EN55011/EN55032-B, FCC-B, and VCCI-B |
Height (mm) |
36 |
