| RoHS Directive | Correspondence |
| Monotaro ID | 50969625 |
| Rated Input Voltage (V) | AC100/110/115/120 |
| Battery | No expansion support |
RoHS Directive |
Correspondence |
Monotaro ID |
50969625 |
Rated Input Voltage (V) |
AC100/110/115/120 |
Battery |
No expansion support |
Type of Product |
Inverter UPS |
Standard |
VCCI ClassA, UL1778 compliant |
Import Country |
Direct Import from Japan |
Model No |
YEUP-061SPAM4 |
Type |
EIA standard 19 inch rack, 1U type |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Yutaka Electric Manufacturing Co., Ltd. |
Rated Output Voltage (V) |
AC100/110/115/120 |
Included Components |
Rack mounting bracket, rack guide rail |
Shape |
With cover |
Input Capacity |
600W or less |

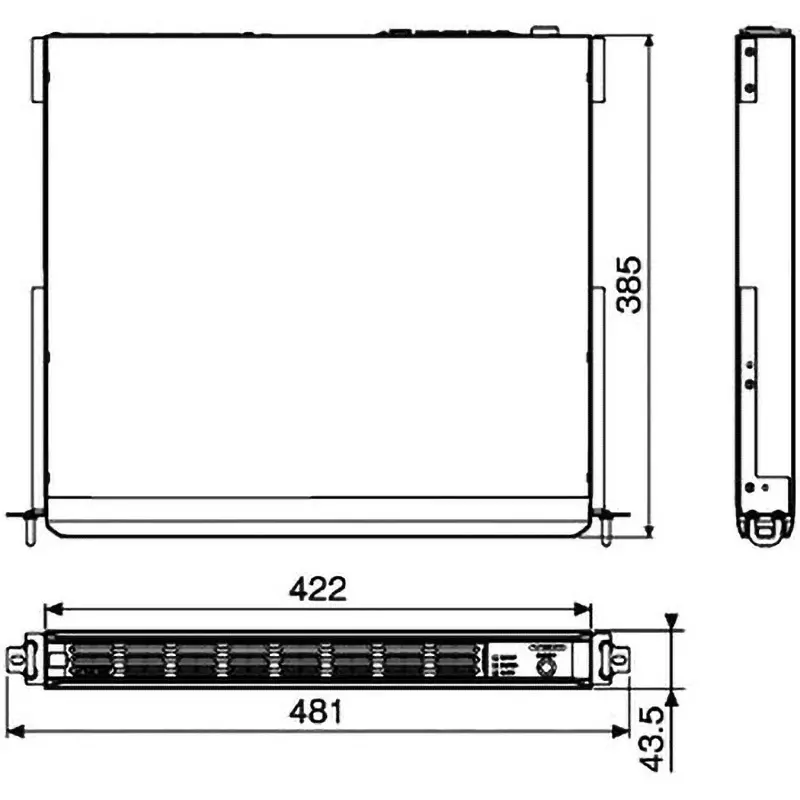

Dimensions (H x W x D) (mm) |
43.5x422x385 mm |
Rated Input Current (A) |
5.55/5.05/4.8/4.6 |
Mass of Main Unit (kg) |
(Body) About 11 |
Rated Capacity |
600VA |
Rated/Max Power Output (VA) |
480 |
Power Outage Compensation Time |
7 minutes or more (at 420 W load) (fully charged, initial value, ambient temperature 20 ° C) |
Power failure compensation time |
[AC output] Power supply quality priority mode (always inverter): No interruption / Eco mode: About 10 ms |
Voltage Fluctuation Tolerance |
Rated voltage-22% (at 100% load) -146 V AC |
Input Voltage Range (V) |
Start: Rated voltage-15% to 146AC |
