| Output Waveform | sine wave |
| No. of Phases | Single-phase |
| Input Plug | NEMA 5-15P |
| Cooling Method | Natural cooling (standby, eco mode operation) / forced cooling (inverter operation, when internal temperature rises) |
Output Waveform |
sine wave |
No. of Phases |
Single-phase |
Input Plug |
NEMA 5-15P |
Cooling Method |
Natural cooling (standby, eco mode operation) / forced cooling (inverter operation, when internal temperature rises) |
Monotaro ID |
50969458 |
Power Consumption (W) |
Normal/maximum: 90/130 |
Rated Input Voltage (V) |
AC100/110/115/120 |
Type of Product |
Inverter UPS |
Noise Level (dB) |
48 |
Standard |
VCCI ClassA, UL1778 compliant, RoHS directive compliant |
Import Country |
Direct Import from Japan |
Model No |
YEUP-101STAM5 |

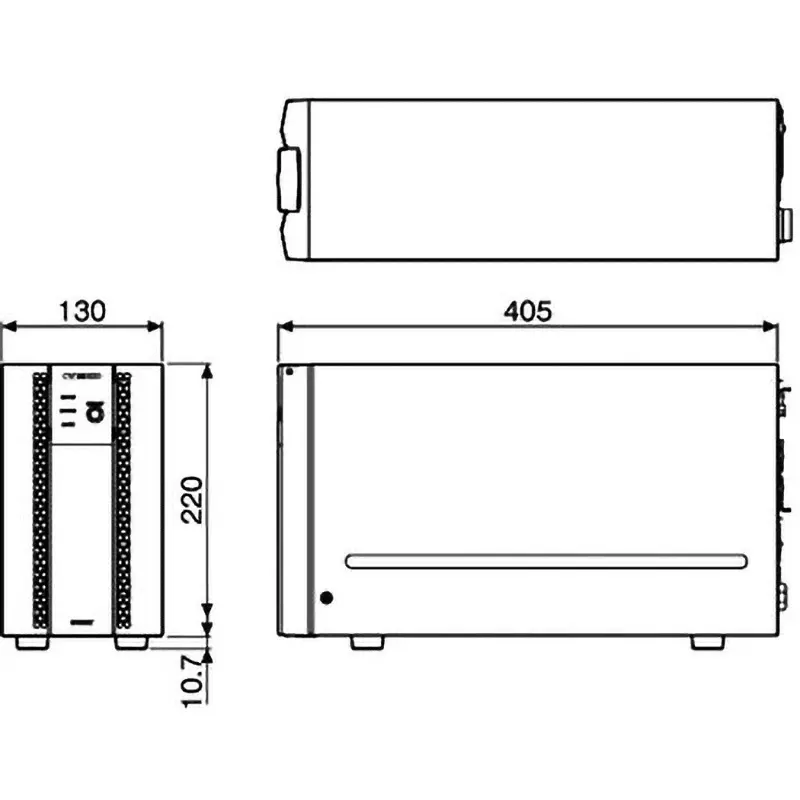

Outer Dimensions (W x D x H) (mm) |
130x405x220 mm |
Type |
Tower type |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Yutaka Electric Manufacturing Co., Ltd. |
Storage Temperature |
-15 to +50℃ |
Recharging Time(hours) |
Approximately 8 hours (90% recovery charge time after 100% load discharge) |
Shape |
With cover |
Input Capacity |
1000W or less |
Dimensions (H x W x D) (mm) |
220x130x405 mm |
Rated Input Current (A) |
9/8.2/7.8/7.5 |
Warranty Type |
5-year on-site maintenance service |
Mass of Main Unit (kg) |
About 16.5 |
Rated Capacity |
1000VA |
