| Type of Product | Box Header |
| Model No | 3431-5002 LCPL |
| Withstand Voltage | No arc breakdown etc. |
| Material | Contact/Copper alloy, gold plating over nickel base (flash plating on tail) Body/Glass reinforced polyester (UL94V-O, gray) Clip/Glass reinforced polyester (UL94V-O, gray) Spring pin/Stainless steel |
Type of Product |
Box Header |
Model No |
3431-5002 LCPL |
Withstand Voltage |
No arc breakdown etc. |
Material |
Contact/Copper alloy, gold plating over nickel base (flash plating on tail) Body/Glass reinforced polyester (UL94V-O, gray) Clip/Glass reinforced polyester (UL94V-O, gray) Spring pin/Stainless steel |
Type |
Standard socket / header box header right angle type |
Rated Voltage (V) |
AC 250/DC300 |
Monotaro ID |
34730202 |
Rated Current (A) |
1 |
No. of Pole |
34 |
Connection Type |
One touch |
Shape |
angle |
Dimension D (Φmm) |
16 |
Suitable For |

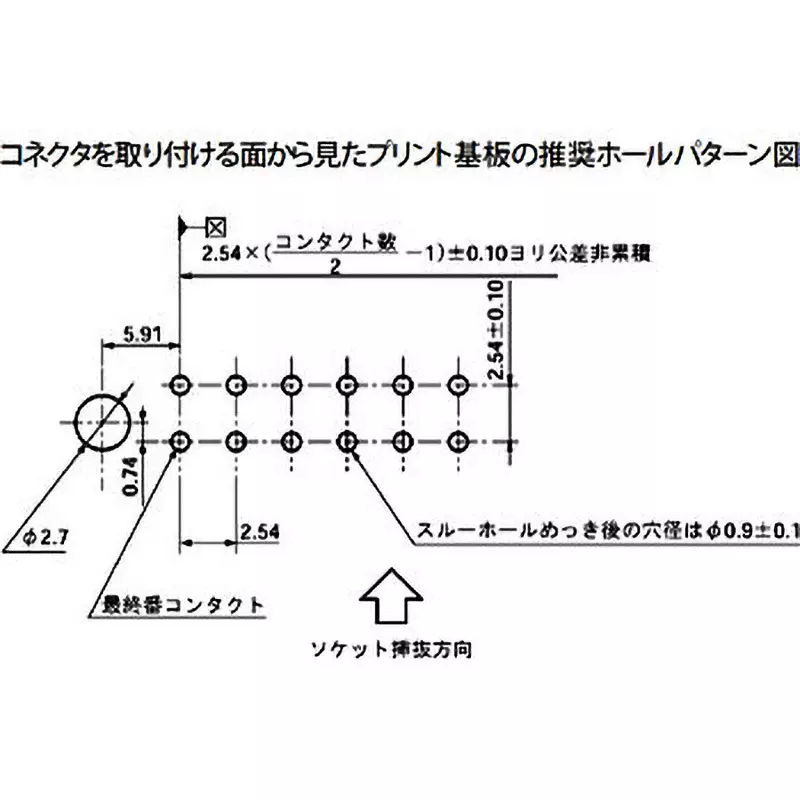

Connector/socket connector board/thickness 1.6mm |
Country of Origin |
Japan |
Contact Type |
Male |
Import Country |
Direct Import from Japan |
Plating Type |
Contact part gold plating thickness 0.2μm or more (others are gold flash plating) |
Name of Manufacturer/Packer/Importer |
3M Japan Limited |

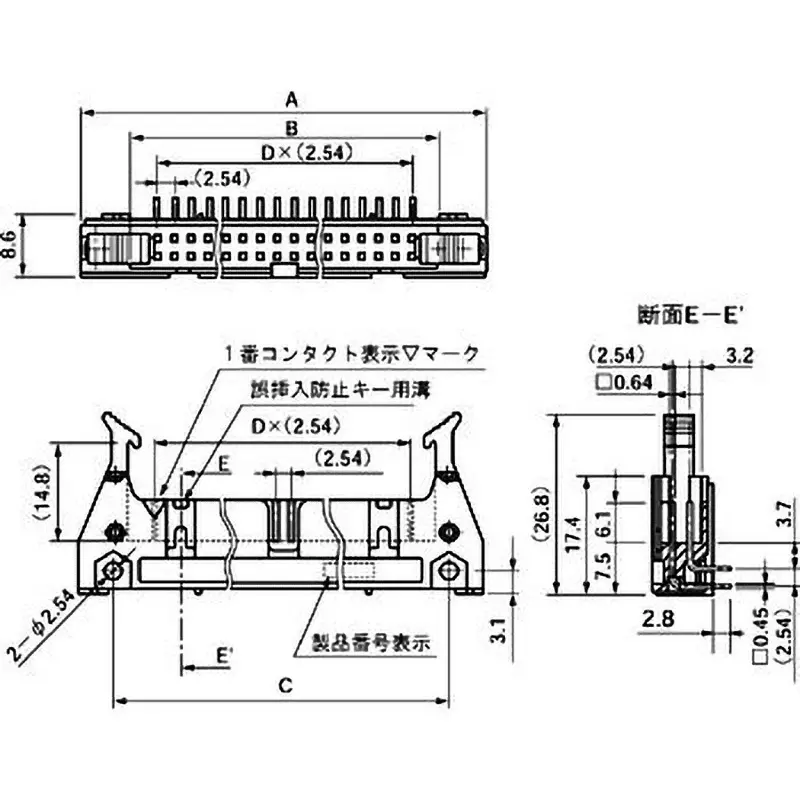

Dimension A (Φmm) |
62.6 |
Insulation Resistance (MOhm) |
1000 or more |
Contact Resistance (ohm) |
Initial 20 mΩ or less (contact resistance increase value after mechanical test and environmental test must be 20 mΩ or less) |
Dimension B (Φmm) |
48.8 |
Ambient Temperature (℃) |
-55 to 105 |
Specifications |
Solderability/wetting of 95% or more, or zero cross time of 3 seconds or less Soldering heat resistance/no significant deformation after the test |
Dimension C (Φmm) |
52.4 |
