| Type of Product | Socket Connector |
| Connection Method | Board mounting |
| Model No | 7920-B500 FL |
| Withstand Voltage | No arc breakdown etc. |
Type of Product |
Socket Connector |
Connection Method |
Board mounting |
Model No |
7920-B500 FL |
Withstand Voltage |
No arc breakdown etc. |
Material |
Contact/Copper alloy, gold plating over nickel base (1.27 μm min. front surface over nickel base) Body/Glass-reinforced polyester (UL94V-O, gray) Cover/Glass-filled polyester, pressure-sensitive adhesive with liner paper (UL94V-O, gray) |
Type |
Square |
Rated Voltage (V) |
AC 250/DC300 |
Monotaro ID |
34729895 |
Rated Current (A) |
1 |
No. of Pole |
20 |
Connection Type |
One touch |
Shape |
Straight |
Suitable For |
Wire / 28 AWG strand UL style 2651 equivalent |
Country of Origin |
Japan |
Contact Type |
Female |
Import Country |
Direct Import from Japan |
Plating Type |
Contact part gold plating thickness 0.2μm or more (others are nickel plating) |
Name of Manufacturer/Packer/Importer |
3M Japan Limited |
Housing Type |
1 nose center for preventing incorrect insertion |

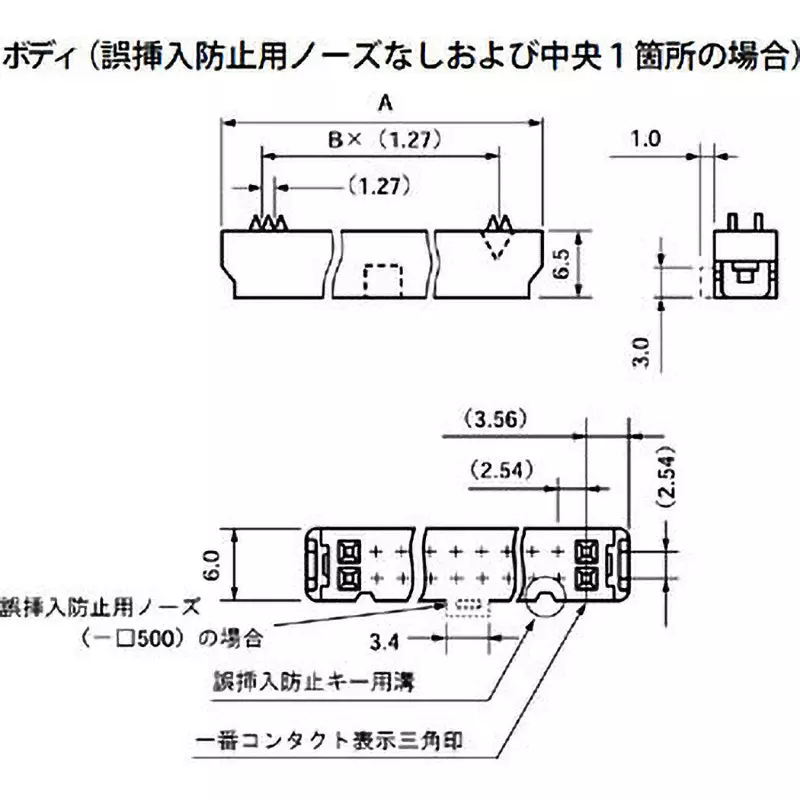

Dimension A (Φmm) |
29.9 |

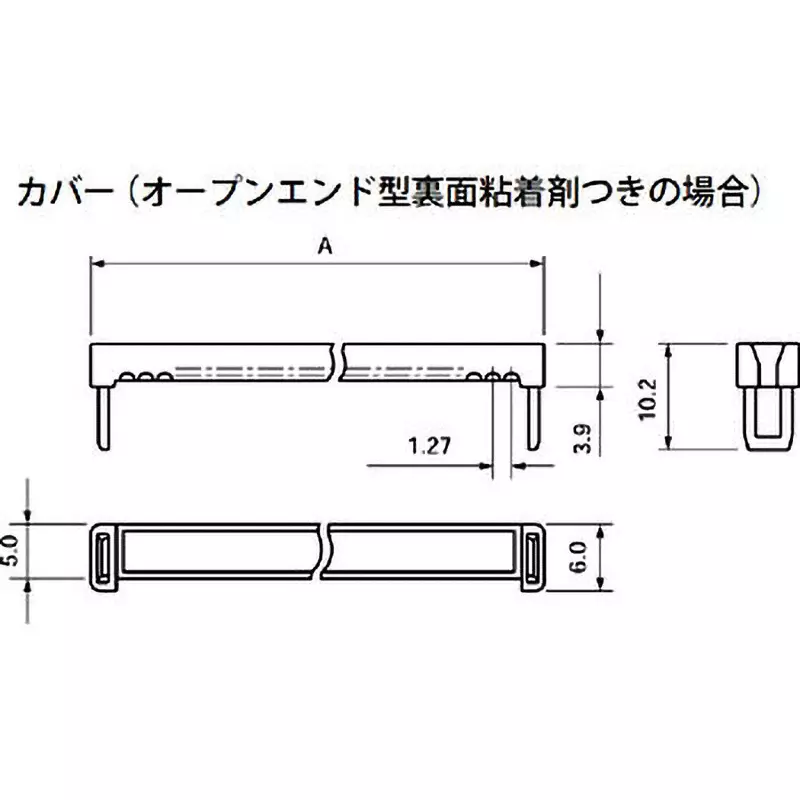

Cover Type |
Open end type No adhesive on back side |
Insulation Resistance (MOhm) |
1000 or more |
Contact Resistance (ohm) |
Initial 20 mΩ or less (contact resistance increase value after mechanical test and environmental test must be 20 mΩ or less) |
Dimension B (Φmm) |
19 |
Ambient Temperature (℃) |
-55 to 105 |
Terminal Connection Type |
Crimping |
