Ships within 25 days
View
View
View
View
| Type of Product | Header Connector Right Angle Type |
| Model No | FRC5-C34L53T-0L-FA |
| Withstand Voltage | AC 500 V (RMS) / 1 minute |
| Material | Housing/Lock/PBT resin (UL94V-0) Contact/Copper alloy spring pin/Stainless copper |
Type of Product |
Header Connector Right Angle Type |
Model No |
FRC5-C34L53T-0L-FA |
Withstand Voltage |
AC 500 V (RMS) / 1 minute |
Material |
Housing/Lock/PBT resin (UL94V-0) Contact/Copper alloy spring pin/Stainless copper |
Type |
Square |
Rated Voltage (V) |
AC 250 |
Monotaro ID |
29473957 |
Rated Current (A) |
1 |
No. of Pole |
34 |
Surface Treatment |
Housing/Lock/Black Contact/Au plating Connector Contact area/Ni base Au (flash) plating Connection area/Sn-Ag plating |
Shape |
Angle |
Country of Origin |
Japan |
Operating Temperature Range |
-55 to +105℃ |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |

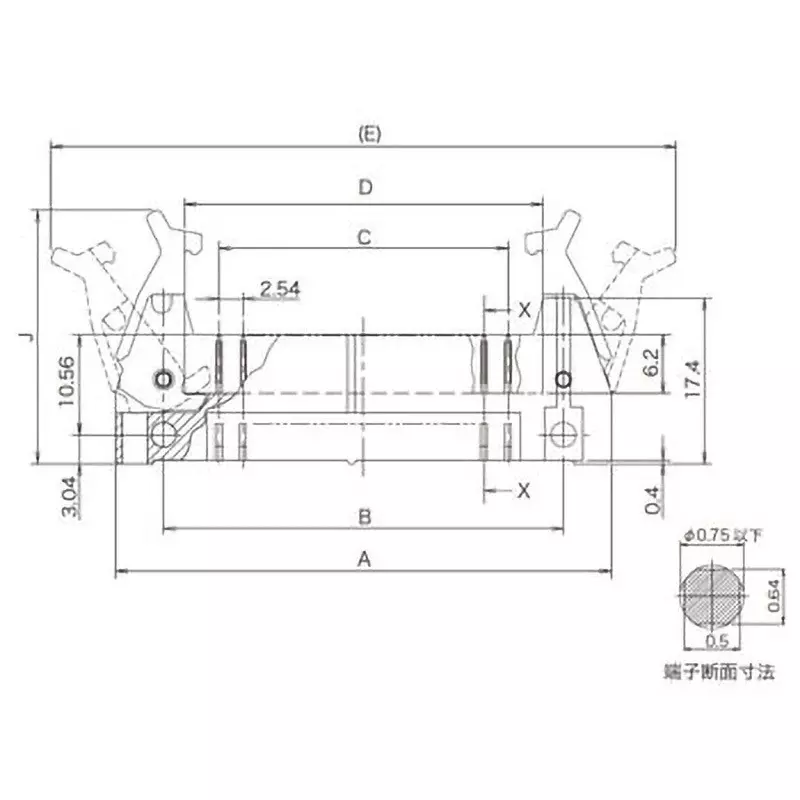

Dimension A (Φmm) |
62.48 |
Pack of |
100 Pcs |
Insulation Resistance (MOhm) |
1000 or more (DC 500 V) |
Contact Resistance (ohm) |
15 or less |
Dimension B (Φmm) |
52.32 |
Dimension C |
40.64 mm |
Dimension d |
48 mm |

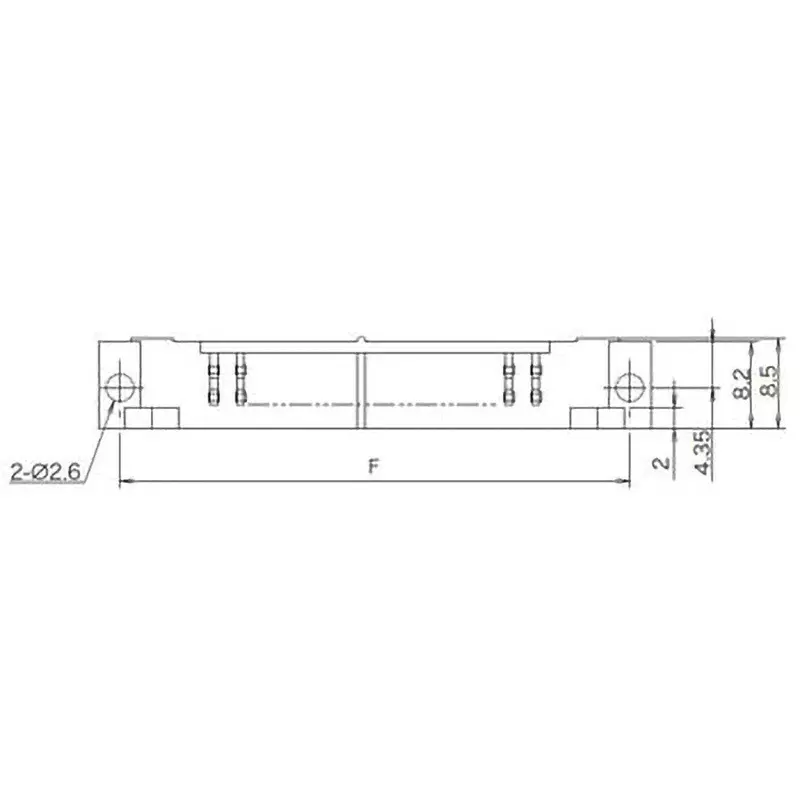

Dimension F (Φmm) |
58.42 |
Dimension E (Φmm) |
76.1 mm |
Specifications |
Lead-free compatible products |

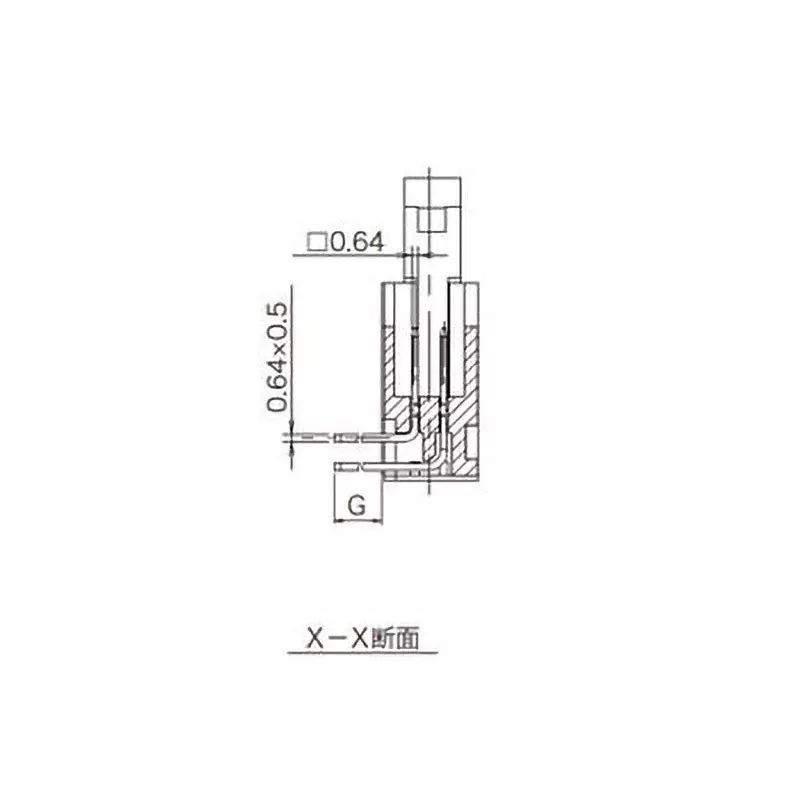

Dimension G |
2.9 mm |
Dimension J (mm) |
26.7 |
