| Type of Product | Header Connector Straight Type |
| Model No | FRC5-C40S53T-0L-FA |
| Withstand Voltage | AC 500 V (RMS) / 1 minute |
| Material | Housing/Lock/PBT resin (UL94V-0) Contact/Copper alloy spring pin/Stainless copper |
Type of Product |
Header Connector Straight Type |
Model No |
FRC5-C40S53T-0L-FA |
Withstand Voltage |
AC 500 V (RMS) / 1 minute |
Material |
Housing/Lock/PBT resin (UL94V-0) Contact/Copper alloy spring pin/Stainless copper |
Type |
Square |
Rated Voltage (V) |
AC 250 |
Monotaro ID |
29473878 |
Rated Current (A) |
1 |
No. of Pole |
40 |
Surface Treatment |
Housing/Lock/Black Contact/Au plating Connector Contact area/Ni base Au (flash) plating Connection area/Sn-Ag plating |
Shape |
Straight |
Country of Origin |
Japan |
Operating Temperature Range |
-55 to +105℃ |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |

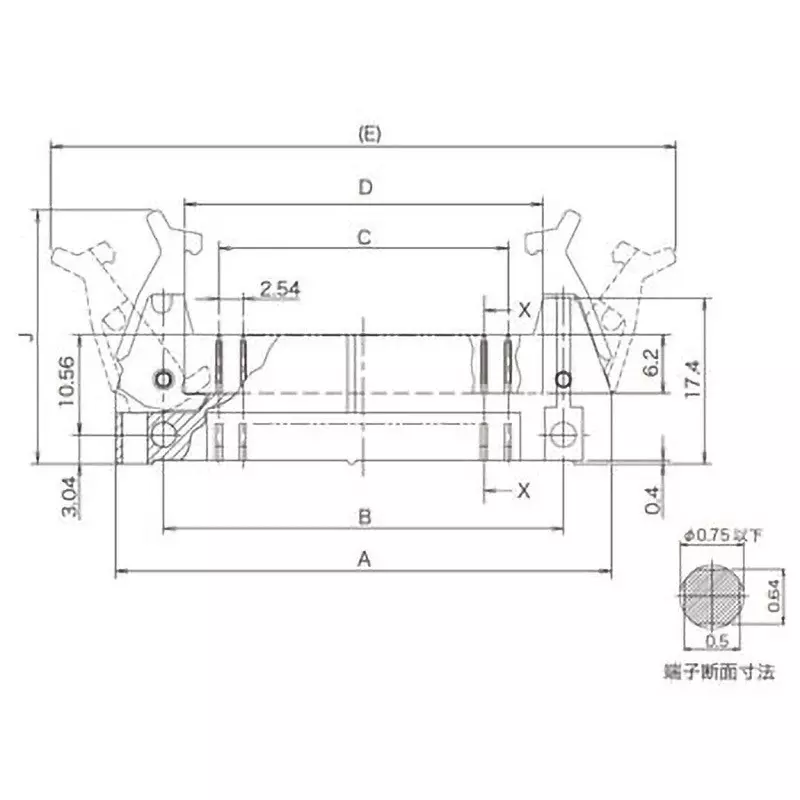

Dimension A (Φmm) |
70.099999999999994 |
Pack of |
100 Pcs |
Insulation Resistance (MOhm) |
1000 or more (DC 500 V) |
Contact Resistance (ohm) |
15 or less |
Dimension B (Φmm) |
59.94 |

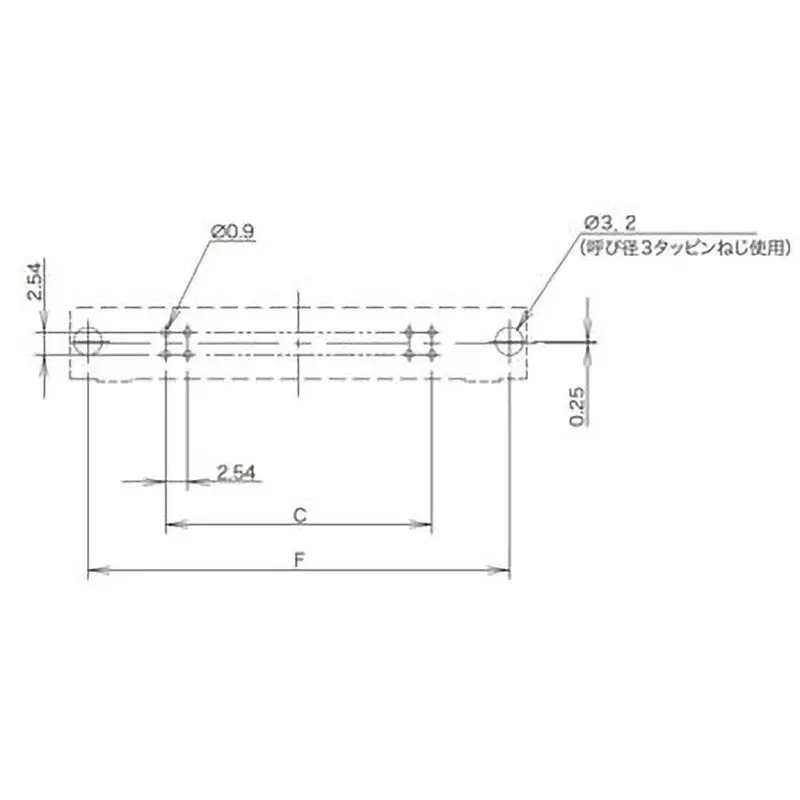

Dimension C |
48.26 mm |
Dimension d |
55.62 mm |

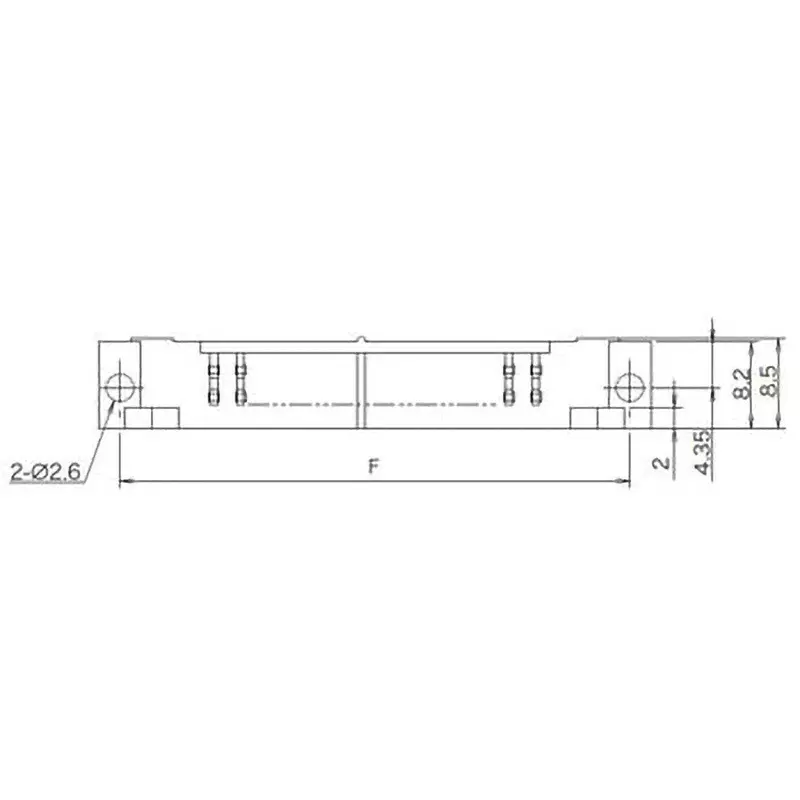

Dimension F (Φmm) |
66.040000000000006 |
Dimension E (Φmm) |
83.7 mm |
Specifications |
Lead-free compatible products |

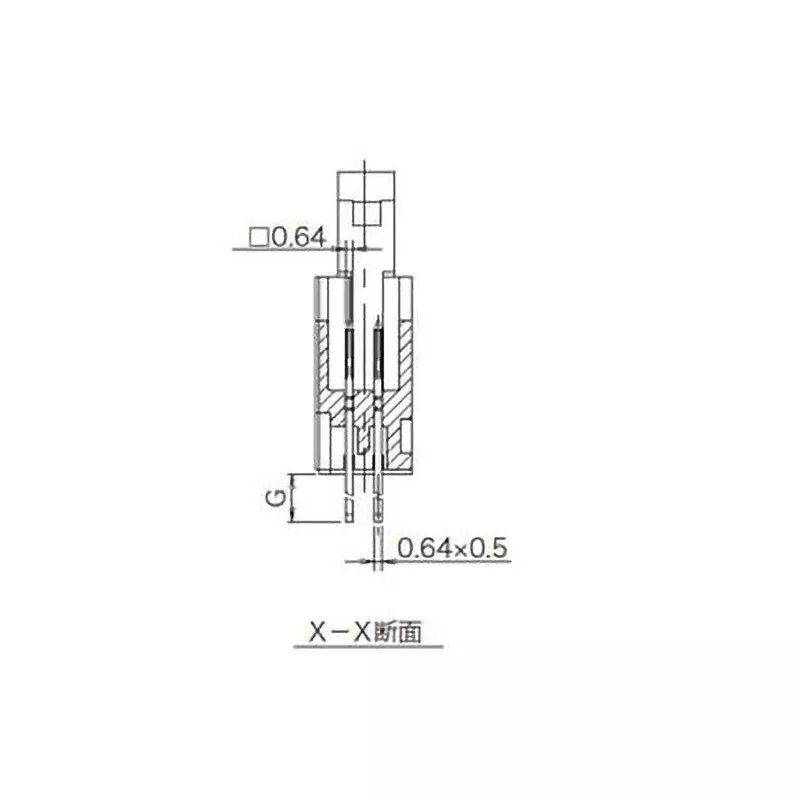

Dimension G |
2.9 mm |
Dimension J (mm) |
26.7 |
