| Type of Product | Ribbon Connector Soldering Type |
| Model No | 57-40240 |
| Withstand Voltage | AC 1200V (RMS) 1 minute |
| Material | Copper alloy / Ni base Au plating |
Type of Product |
Ribbon Connector Soldering Type |
Model No |
57-40240 |
Withstand Voltage |
AC 1200V (RMS) 1 minute |
Material |
Copper alloy / Ni base Au plating |
Type |
Receptacle No rib |
Rated Voltage (V) |
AC 500(RMS) |
Monotaro ID |
2481735 |
Rated Current (A) |
5 / Contact |
Suitable Wire |
Single wire: 0.65 mm (conductor diameter) or AWG22 stranded wire: 0.2 mm² (conductor cross-sectional area) or AWG24 |
Country of Origin |
Japan |
No of Core |
24 |
Operating Temperature Range |
-55 to +105℃ |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |

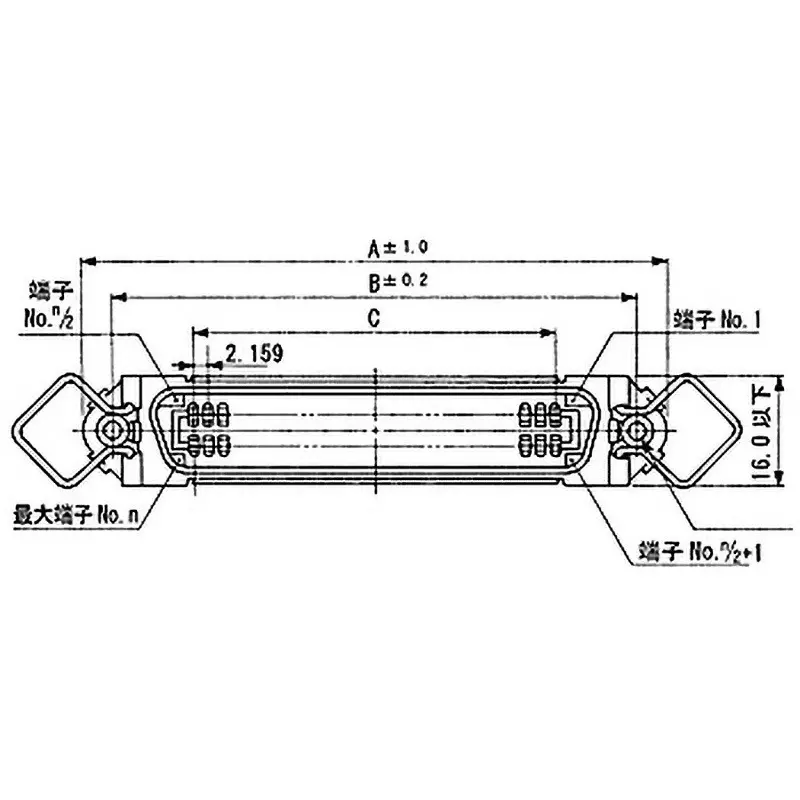

Dimension A (Φmm) |
54.7 |
Insulator Color |
Blue |
Insulator Material |
DAP resin (UL94V-O) |
Insulation Resistance (MOhm) |
1000 or less (at 500 V DC) |
Contact Resistance (ohm) |
5 or less (at 5 A DC) |
Dimension B (Φmm) |
46.78 |
Dimension C |
23.749 mm |
Cable Connection |
For soldering |
