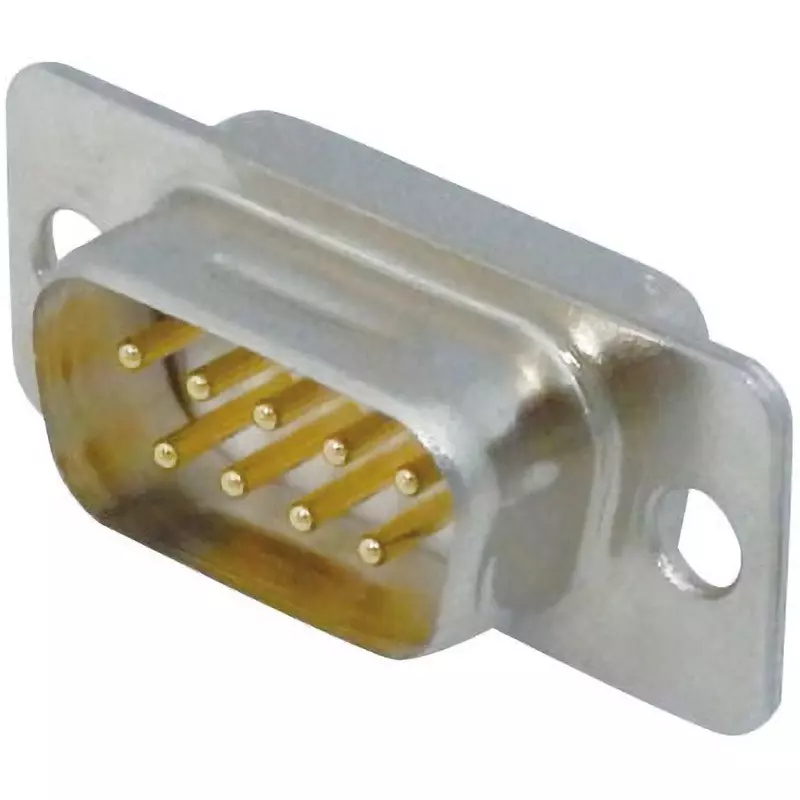

| Type of Product | Pin Connector |
| Connection Method | Solder |
| Model No | 17JE-23090-02(D1) |
| Withstand Voltage | 1000V AC (RMS) for 1 minute |
Type of Product |
Pin Connector |
Connection Method |
Solder |
Model No |
17JE-23090-02(D1) |
Withstand Voltage |
1000V AC (RMS) for 1 minute |
Type |
Square |
Rated Voltage (V) |
AC 300 |
Monotaro ID |
34602486 |
Rated Current (A) |
5 |
No. of Pole |
9 |
Connection Type |
Screw |
Shape |
Straight |
Suitable Wire |
(Single wire) AWG20 or less (stranded wire) AWG22 or less |
Country of Origin |
Japan |
Operating Temperature Range |
-25 to 85℃ |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |

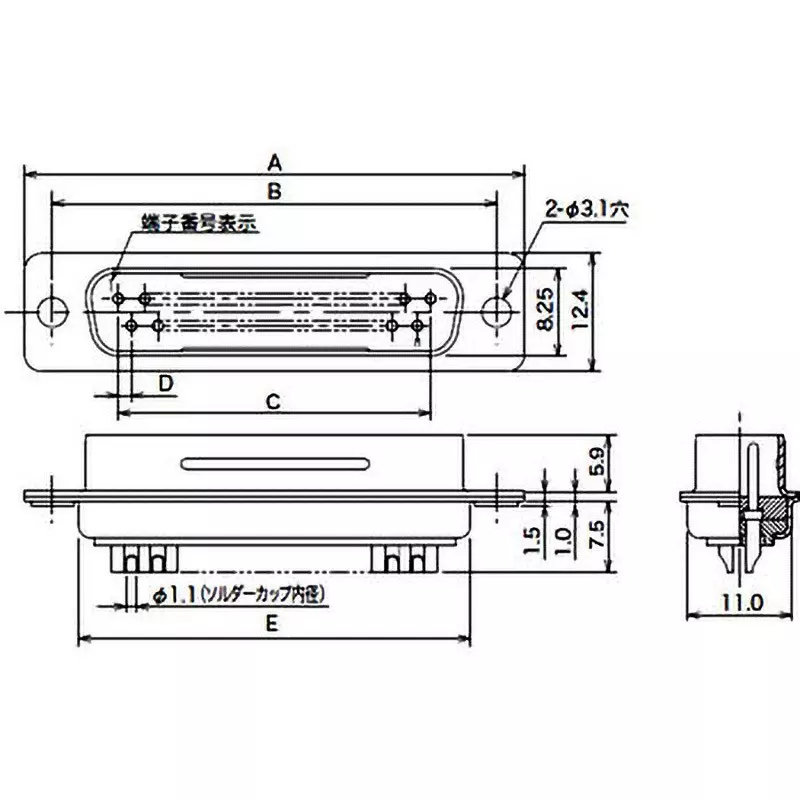

Dimension A (Φmm) |
30.7 |
Insulation Resistance (MOhm) |
1000 or more (DC 500 V) |
Contact Resistance (ohm) |
less than 10 |
Dimension B (Φmm) |
24.99 |
Dimension C |
10.98 mm |
Dimension d |
1.37 mm |
Dimension E (Φmm) |
19.5 mm |
Shape Type |
Female |
Material/Finish |
(Block) Pbt Resin (Ul94V-0) / Milky White (Shell) Steel / Ni Plating (Contact) Copper Alloy / Ni Base Au Plating (Hood) Abs Resin / Ni Plating (Jack Screw) Steel Or Brass / Ni Plating |
