| Type of Product | Socket Connector |
| Connection Method | Crimping |
| Model No | FRC5-A034-3T0S-FA |
| Withstand Voltage | AC 500 V (RMS) / 1 minute |
Type of Product |
Socket Connector |
Connection Method |
Crimping |
Model No |
FRC5-A034-3T0S-FA |
Withstand Voltage |
AC 500 V (RMS) / 1 minute |
Material |
Housing Cover Strain Relief / PBT Resin (UL94V-0) Contact / Copper Alloy |
Type |
Square |
Rated Voltage (V) |
AC 250 |
Monotaro ID |
38563777 |
Rated Current (A) |
1 |
No. of Pole |
34 |
Surface Treatment |
Housing / Cover / Strain Relief / Black Contact / Au Plating Connector Contact / Ni Base Au (Flash) Plating Connection / Sn-Ag Plating |
Connection Type |
One touch |
Shape |
Straight |
Suitable Wire |
AWG28 (stranded, single wire), AWG30 (single wire) |
Country of Origin |
Japan |
Operating Temperature Range |
-55 to +105℃ |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |

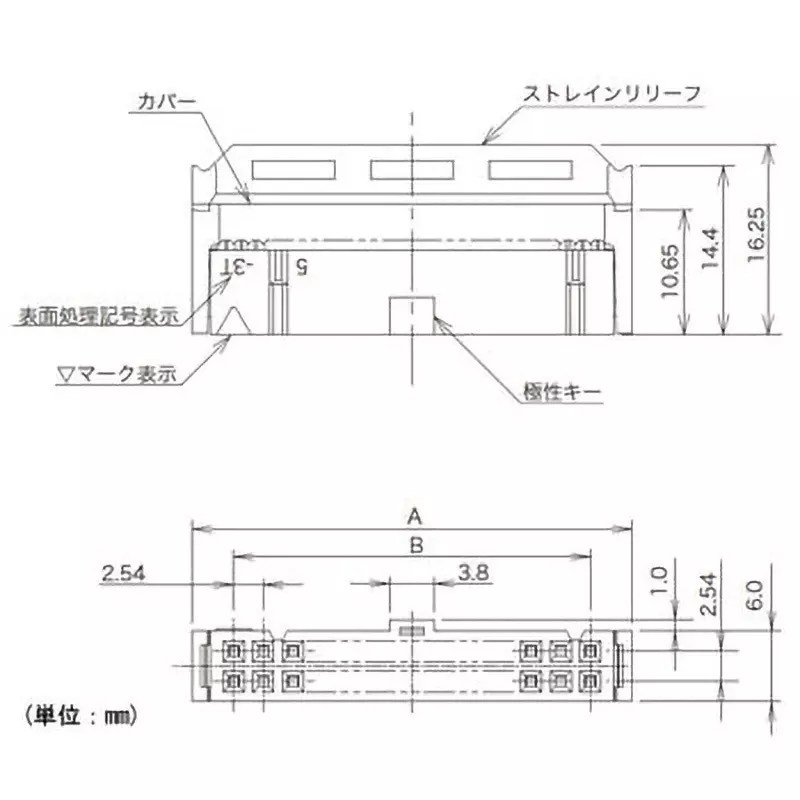

Dimension A (Φmm) |
47.75 |
Insulation Resistance (MOhm) |
1000 or more (DC 500 V) |
Contact Resistance (ohm) |
15 or less |
Dimension B (Φmm) |
40.64 |
Shape Type |
Female |
Cover |
Open end |
Slots |
1 key |
