| Type of Product | Ribbon Connector Printed Circuit Board Type |
| Model No | 57LE-40140-7700(D12)-FA |
| Withstand Voltage | AC 1200V (RMS) 1 minute |
| Material | Copper alloy / Contact part: Ni base Au (0.4μ) plating, tail part: solder plating, Stainless Steel |
Type of Product |
Ribbon Connector Printed Circuit Board Type |
Model No |
57LE-40140-7700(D12)-FA |
Withstand Voltage |
AC 1200V (RMS) 1 minute |
Material |
Copper alloy / Contact part: Ni base Au (0.4μ) plating, tail part: solder plating, Stainless Steel |
Type |
L-shaped dip type |
Rated Voltage (V) |
AC 500(RMS) |
Monotaro ID |
23855195 |
Rated Current (A) |
3 / Contact |
Country of Origin |
Japan |
No of Core |
14 |
Operating Temperature Range |
-55 to +105℃ |
Import Country |
Direct Import from Japan |
Included Components |
Tapping earth plate |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |

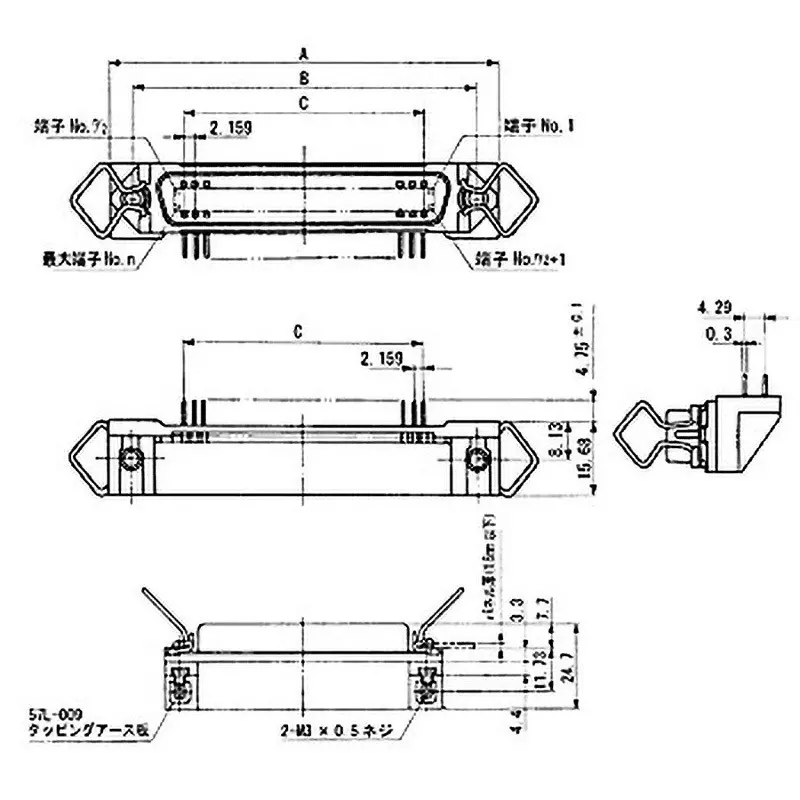

Dimension A (Φmm) |
44 |
Insulator Color |
Blue |
Insulator Material |
PBT resin (UL94V-O) |
Insulation Resistance (MOhm) |
1000 or more (DC 500 V) |
Contact Resistance (ohm) |
35 or less |
Dimension B (Φmm) |
36 |
Dimension C |
12.954 mm |
