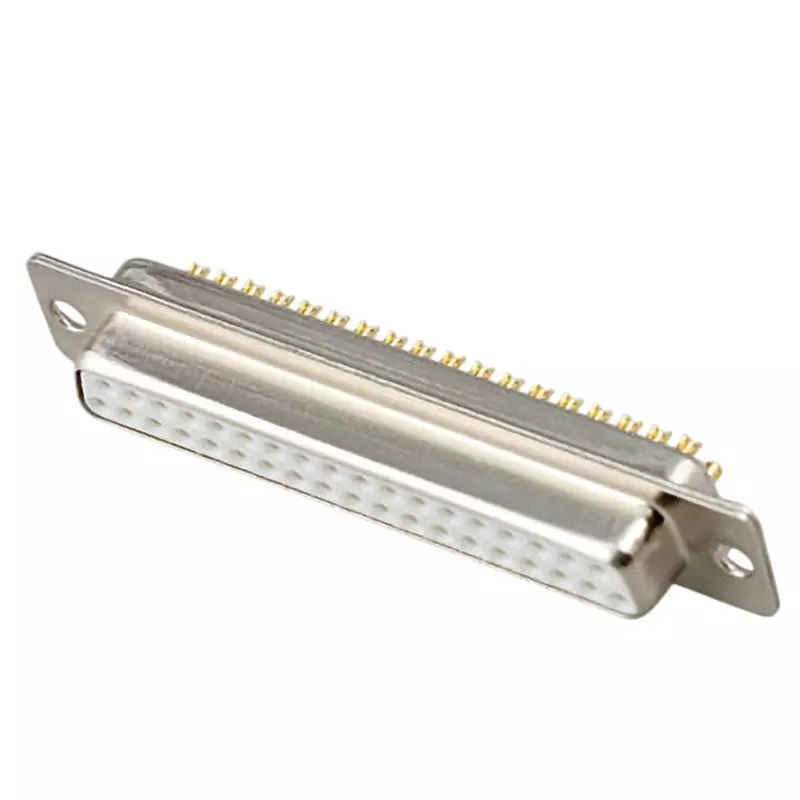

| Type of Product | Solder Type Connector |
| Connection Method | Solder |
| Model No | 17JE-13370-02(D3C)A |
| Material | Ni base Au (flash) plating |
Type of Product |
Solder Type Connector |
Connection Method |
Solder |
Model No |
17JE-13370-02(D3C)A |
Material |
Ni base Au (flash) plating |
Type |
Square |
Rated Voltage (V) |
AC 300 |
Monotaro ID |
29473510 |
Rated Current (A) |
5 |
No. of Pole |
37 |
Connection Type |
Screw |
Shape |
Straight |
Material (Shell) / Finish |
Ni plating |
Country of Origin |
Japan |
Operating Temperature Range |
-25 to +85℃ |
Import Country |
Direct Import from Japan |
Terminal Shape |
Soldering type |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Withstand voltage (V / min) |
AC 1000 |
Pack of |
100 Pcs |
Insulation Resistance (MOhm) |
1000 or more (DC 500 V) |
Contact Resistance (ohm) |
less than 10 |
Shape Type |
Female |
Applicable Wire Range AWG |
(Single wire) 20 or less, (stranded wire) 22 or less |
