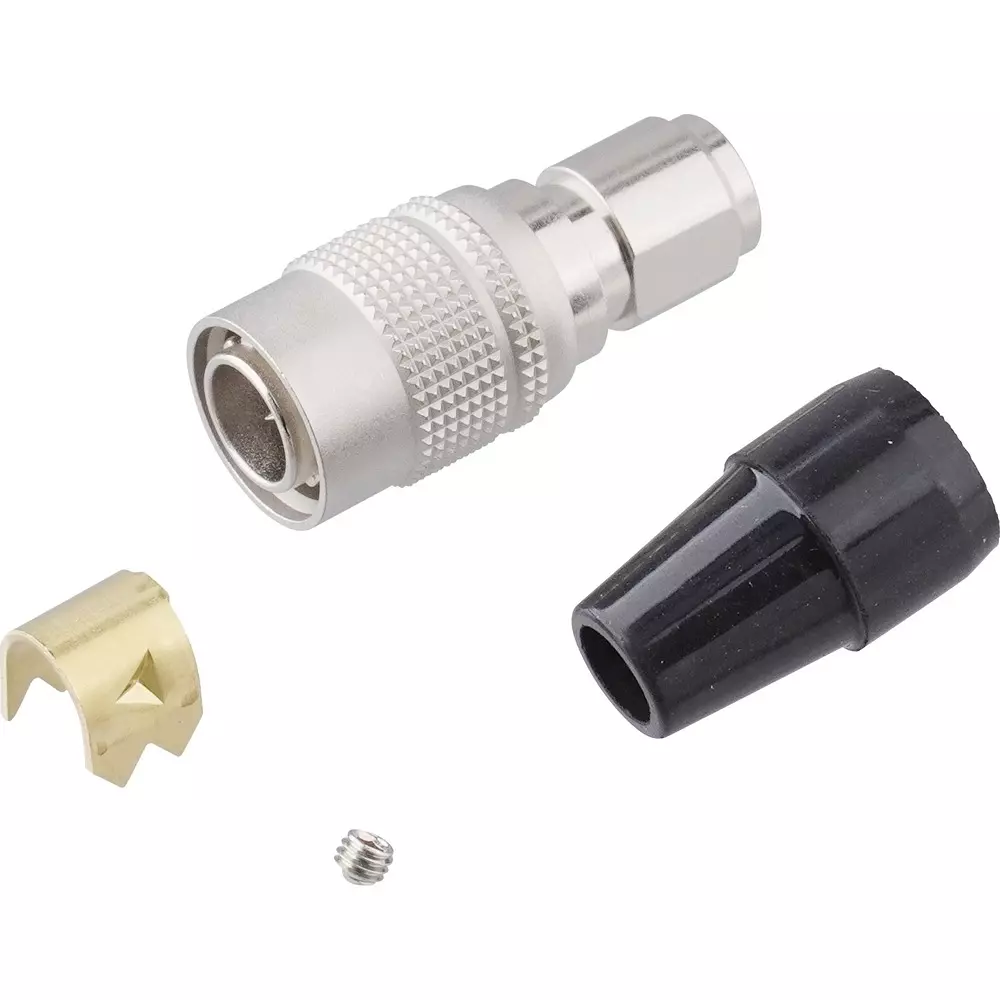

| Type of Product | Compact Round Connector |
| Model No | HR10A-7P-4P(73) |
| Withstand Voltage | No leakage or insulation breakdown (AC300V for 1 minute, 4-pole: AC500V for 1 minute) |
| Material | (Exterior) Zinc alloy, brass |
Type of Product |
Compact Round Connector |
Model No |
HR10A-7P-4P(73) |
Withstand Voltage |
No leakage or insulation breakdown (AC300V for 1 minute, 4-pole: AC500V for 1 minute) |
Material |
(Exterior) Zinc alloy, brass |
Type |
Low cost type |
Rated Voltage (V) |
AC 150, DC 200 |
Monotaro ID |
87072657 |
Rated Current (A) |
2 |
No. of Pole |
4 |
Connection Type |
One-touch push-pull lock |
Shape |
Straight |

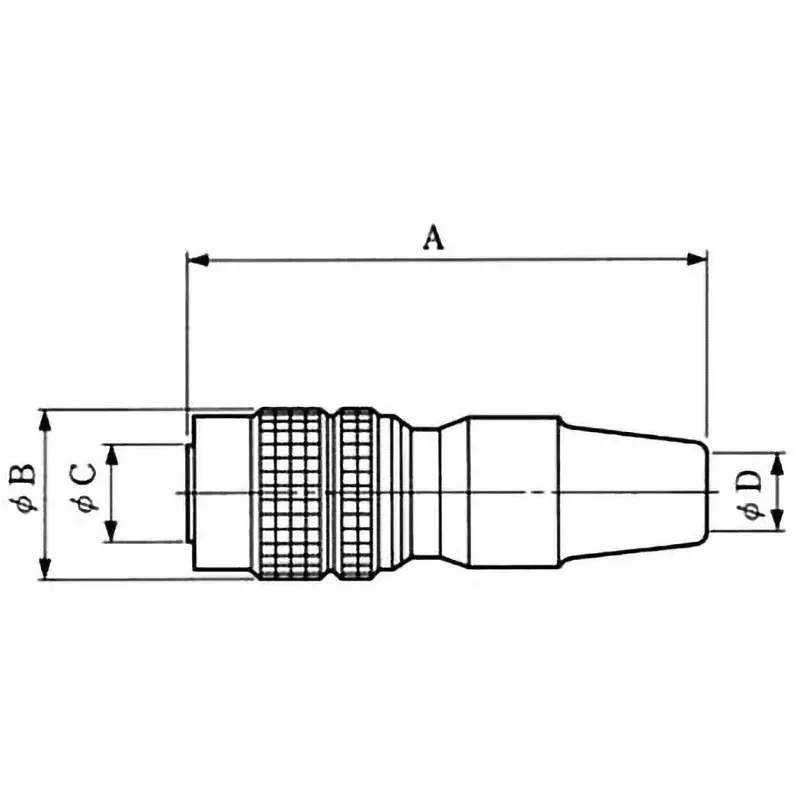

Dimension D (Φmm) |
5 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Finish Type |
(Terminal) Silver plating, (Exterior) Pear-skin nickel plating |
Name of Manufacturer/Packer/Importer |
Hirose |
Shell Size |
7 |
Mass (g) |
9 |
Dimension A (Φmm) |
35 |
Insulator Material |
Polyamide resin, PBT resin |
Terminal Material |
Copper alloy |
Insulation Resistance (MOhm) |
1000 or more (DC 100 V) |
Contact Resistance (ohm) |
10 or less (DC1A) |
Dimension B (Φmm) |
11.5 |
Dimension C (Φmm) |
7 |
