| Type of Product | Cable Connector |
| Model No | HIF3FC-50PA-2.54DSA(71) |
| Withstand Voltage | 650 VAC (rms) energized for 1 minute (no leakage or breakdown) |
| Rated Voltage (V) | AC 200 |
Type of Product |
Cable Connector |
Model No |
HIF3FC-50PA-2.54DSA(71) |
Withstand Voltage |
650 VAC (rms) energized for 1 minute (no leakage or breakdown) |
Rated Voltage (V) |
AC 200 |
Monotaro ID |
87072447 |
Rated Current (A) |
1 |
No. of Pole |
50 |
Operating Humidity Range |
40 to 80% |
Country of Origin |
Japan |
Operating Temperature Range |
-55 to +85 (including temperature rise when energized) |
Import Country |
Direct Import from Japan |
Terminal Shape |
Straight type |
Name of Manufacturer/Packer/Importer |
Hirose |
Storage Temperature Range |
-10 to +60 |

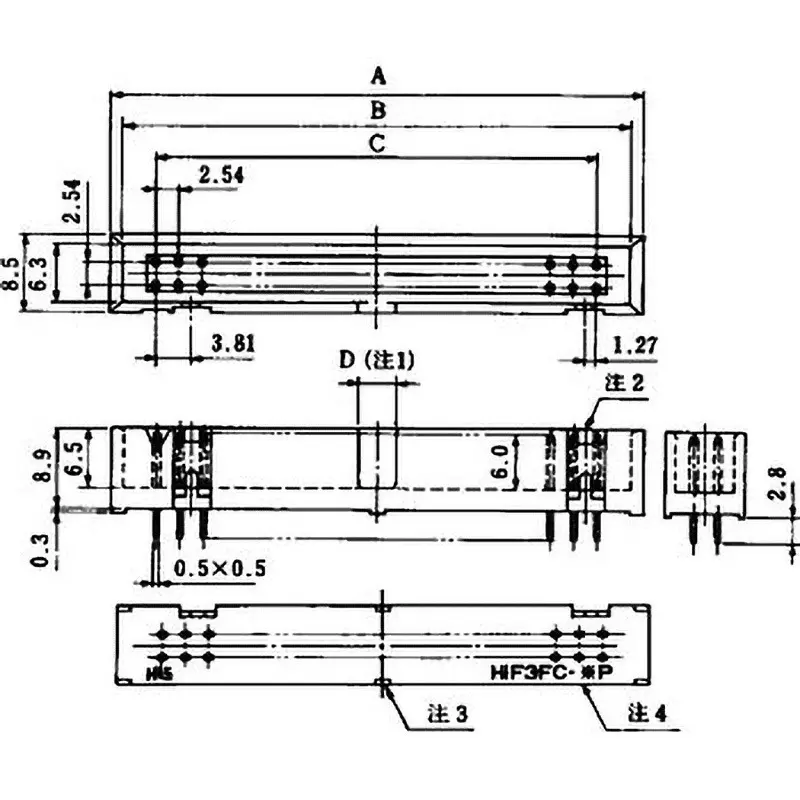

Dimension A (Φmm) |
71 |
Insulator Color |
BlACk |
Insulator Material |
PBT resin (UL94V-0) |
Insulation Resistance (MOhm) |
1000 or more (DC 500 V) |
Contact Resistance (ohm) |
15 or less (0.1A) |
Dimension B (Φmm) |
68.3 |
Dimension C |
60.96 |
Dimension d |
4.0999999999999996 |
Vibration Resistance |
Half amplitude 0.75mm, 3 directions 2 hours (10 to 55Hz) (no electrical interruption for 1μs or more) |
Heat Resistance |
Automatic soldering: 260 ° C, 10 seconds Manual soldering: Soldering iron temperature: 300 ° C, 3 seconds No melting of the resin part that affects performance. |
Storage Humidity Range |
40 to 70% |
Moisture Resistance |
Insulation resistance 1000MΩ or more (Temperature 40 ± 2 ℃, Humidity 90 to 95%, leave for 96 hours) |
