| Type of Product | Pin Header |
| Model No | FSS-41085-09 |
| Material | PBT4830: FSS-41057, nylon: FSS-41035, FSS-41085 (resin part), phosphor bronze: FSS-41035, FSS-41057, brass: FSS-41085 (contact) |
| Monotaro ID | 11348058 |
Type of Product |
Pin Header |
Model No |
FSS-41085-09 |
Material |
PBT4830: FSS-41057, nylon: FSS-41035, FSS-41085 (resin part), phosphor bronze: FSS-41035, FSS-41057, brass: FSS-41085 (contact) |
Monotaro ID |
11348058 |
Contact Resistance |
20 mΩ Max (DC 100 mA) |
Surface Treatment |
Ni base Gold flash (contact) |
No. Of Pin |
9 |
Color |
Black (resin part) |
Country of Origin |
Japan |
Operating Temperature Range |
-40 to +105℃ |
No. of Row |
Single Row |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Hirosugi Instruments Co., Ltd. |
Pack of |
10 Pcs |
Mounting Hole Diameter |
Φ1.02 mm |
Insulation Resistance (MOhm) |
Min. 5000 mΩ (DC 500 V) |
Current Capacity (Amps) |
3 |
RoHS Directive (10 Substances Compliant) |
Correspondence |

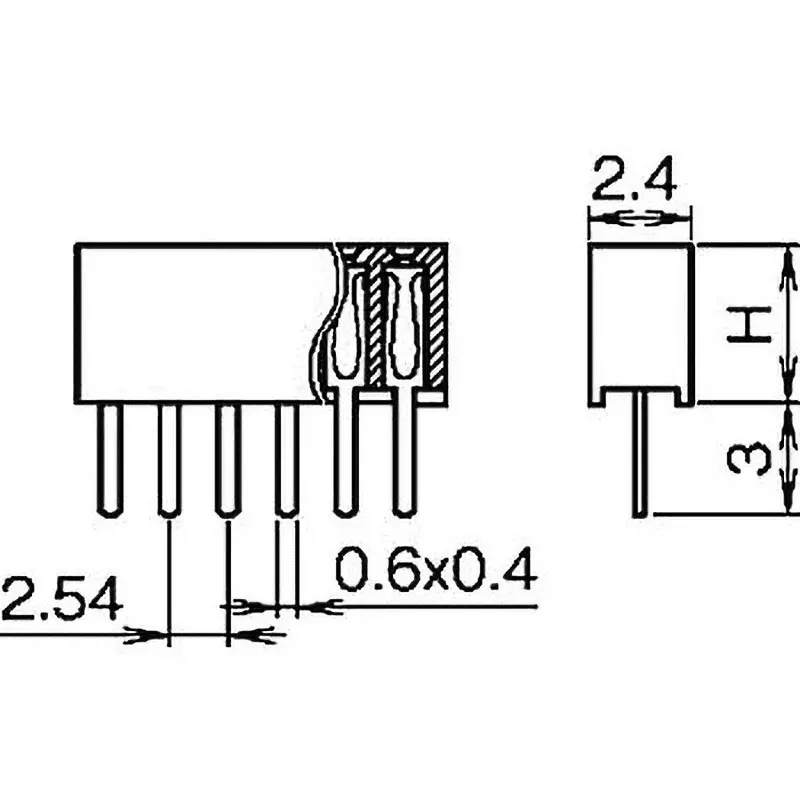

Dimension H |
8.5 mm |
Combustion Efficency |
UL94V-0 (material) (resin part) |
Thermal Deformation Temperature |
208 (PBT4830: 1.82 mPA), 290 (nylon: 1.80 mPA) (resin part)℃ |
