| Type of Product | Pin Header |
| Model No | PSH-410256-09TC |
| Monotaro ID | 55349298 |
| Contact Resistance | 20 mΩ Max (DC 100 mA) |
Type of Product |
Pin Header |
Model No |
PSH-410256-09TC |
Monotaro ID |
55349298 |
Contact Resistance |
20 mΩ Max (DC 100 mA) |
Surface Treatment |
Contact/Ni base Gold flash |
No. Of Pin |
9 |
Contact Material |
Brass |
Country of Origin |
Japan |
Operating Temperature Range |
-40 to +105℃ |
No. of Row |
Single Row |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Hirosugi Instruments Co., Ltd. |
Pack of |
100 Pcs |
Insulation Resistance (MOhm) |
Min. 5000 mΩ (DC 500 V) |
Body Color |
Black |
Main Unit Material |
Nylon |
Current Capacity (Amps) |
3 |

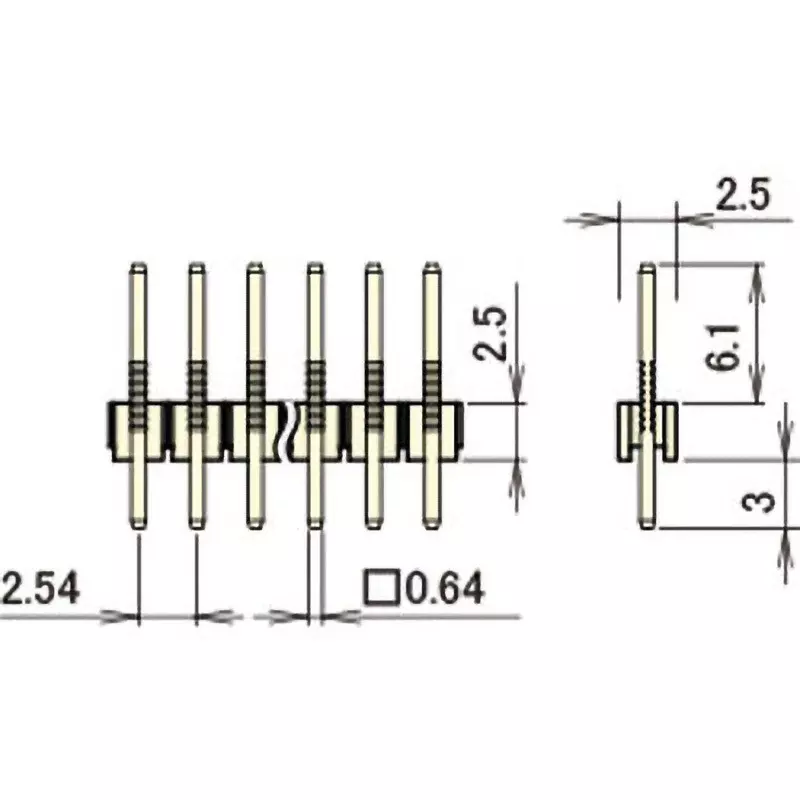

Pitch Size |
2.54 mm |
RoHS Directive (10 Substances Compliant) |
Correspondence |
Combustion Efficency |
Body/UL94V-0 (material) |
Thermal Deformation Temperature |
Body/1.80 mPA...290℃ |
