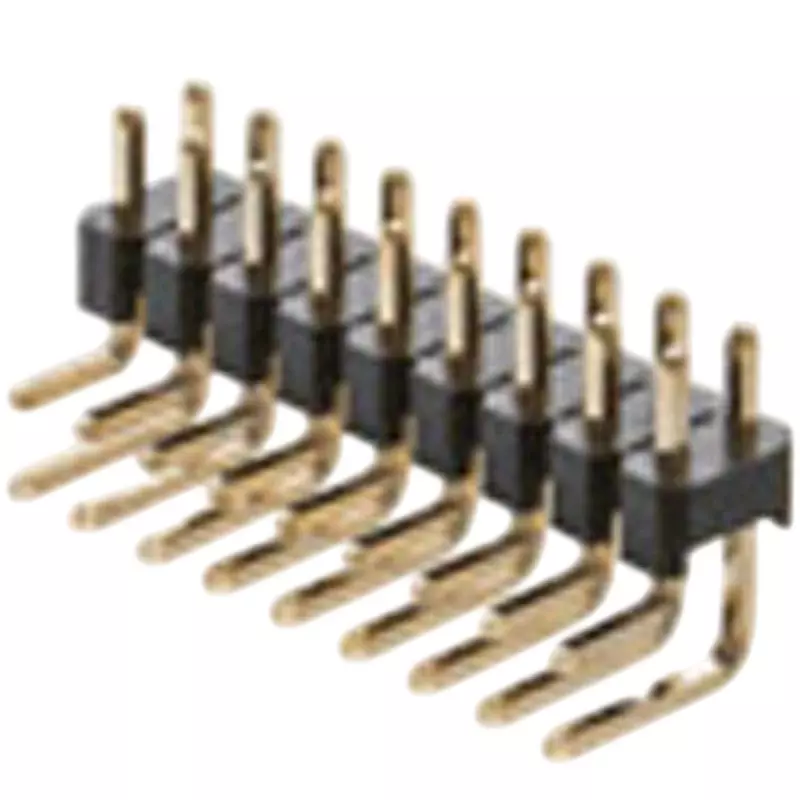

| Type of Product | Pin Header |
| Model No | PSR-410156-04TB |
| Monotaro ID | 57322153 |
| Contact Resistance | 20 mΩ Max (DC 100 mA) |
Type of Product |
Pin Header |
Model No |
PSR-410156-04TB |
Monotaro ID |
57322153 |
Contact Resistance |
20 mΩ Max (DC 100 mA) |
Surface Treatment |
Contact: Ni ground Gold flash |
No. Of Pin |
4 |
Contact Material |
Brass |
Color |
Resin part: Black |
Country of Origin |
Japan |
Operating Temperature Range |
-40 to +105℃ |
No. of Row |
Single/Double Row |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Hirosugi Instruments Co., Ltd. |
Pack of |
200 Pcs |
Insulation Resistance (MOhm) |
Min. 5000 mΩ (DC 500 V) |
Current Capacity (Amps) |
3 |
Pitch Size |
2.54 mm |
Material (Plastic Part) |
PBT 4830 |
RoHS Directive (10 Substances Compliant) |
Correspondence |
Dimension H |
1.5 mm |
Combustion Efficency |
Body resin part: UL94V-0 (material) |
Thermal Deformation Temperature |
1.82 mPA…208℃ |
