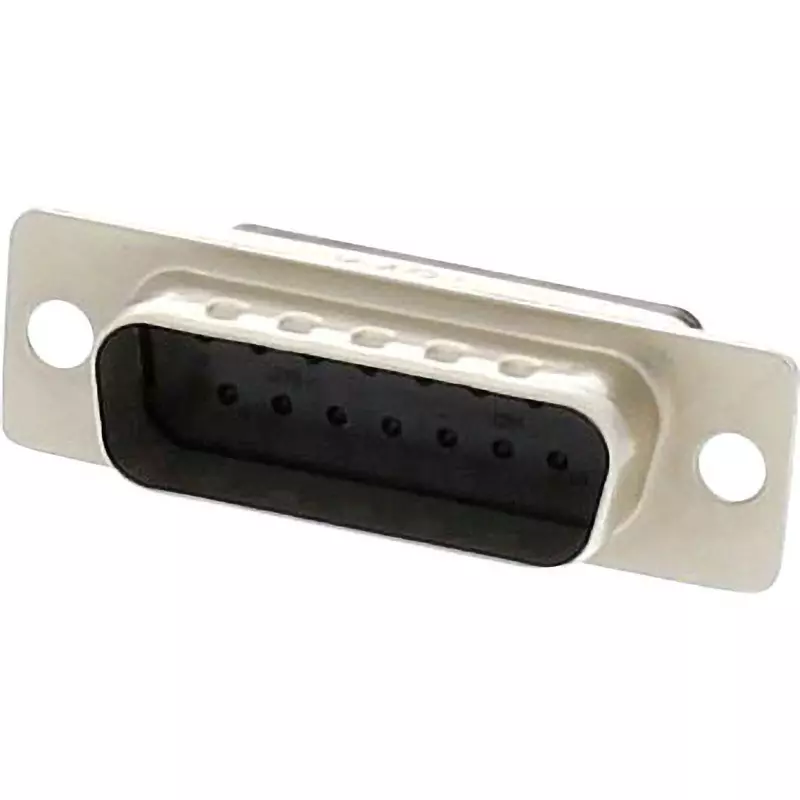

| Type of Product | D-Sub Connector Emi Countermeasure Type Crimp and Through Hole Type |
| Connection Method | Crimping |
| Model No | DAU-15PF-F0 |
| Type | Square |
Type of Product |
D-Sub Connector Emi Countermeasure Type Crimp and Through Hole Type |
Connection Method |
Crimping |
Model No |
DAU-15PF-F0 |
Type |
Square |
Monotaro ID |
41190046 |
Contact Resistance |
(AWG # 18 ~ # 22) 2.7 mΩ or less, (AGW # 24 ~ # 26) 4.5 mΩ or less, (AGW # 28 ~ # 30) 6 mΩ or less |
Rated Current (A) |
5 (per core) |
No. of Pole |
15 |
Connection Type |
Screw |
Shape |
Straight |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Withstand voltage (V / min) |
AC1000 |
Pack of |
1 Pcs |
Compatible Cable |
(AWG#18)0.81, (AWG#20)0.52, (AWG#22)0.32, (AWG#24)0.21, (AWG#26)0.13, (AWG#28)0.08, (AWG#30)0.05 |
Material/Finish |
Steel / nickel plating |
Applicable Wire Range AWG |
#18 to #30 |
Trusco Part No. |
417-7762 |
Insulation_Resistance (MΩ) |
5000 or more |
Contact Shape |
Male |
Classification |
Pin side |
