| Type of Product | Round Connector |
| Model No | SRCN6A13-3P |
| Withstand Voltage | AC1000Vr.ms (1 minute) |
| Material | Shell, barrel, coupling nut, end bell, clamp saddle: Aluminum alloy insulator: Synthetic resin (UL94V-0, green) Contact: Copper alloy retaining ring: Copper alloy set screw: Steel cross-recessed pan head machine screw: Steel |
Type of Product |
Round Connector |
Model No |
SRCN6A13-3P |
Withstand Voltage |
AC1000Vr.ms (1 minute) |
Material |
Shell, barrel, coupling nut, end bell, clamp saddle: Aluminum alloy insulator: Synthetic resin (UL94V-0, green) Contact: Copper alloy retaining ring: Copper alloy set screw: Steel cross-recessed pan head machine screw: Steel |
Type |
Screw fitting type |
Monotaro ID |
8517887 |
Contact Resistance |
5 mΩ |
Rated Current (A) |
10 |
No. of Pole |
3 poles |
Suitable Wire |
AWG: # 16 or less Conductor cross section: 1.25mm <sup>2</sup> or less |
Rated Voltage |
AC250Vr.ms or less or DC350V or less |

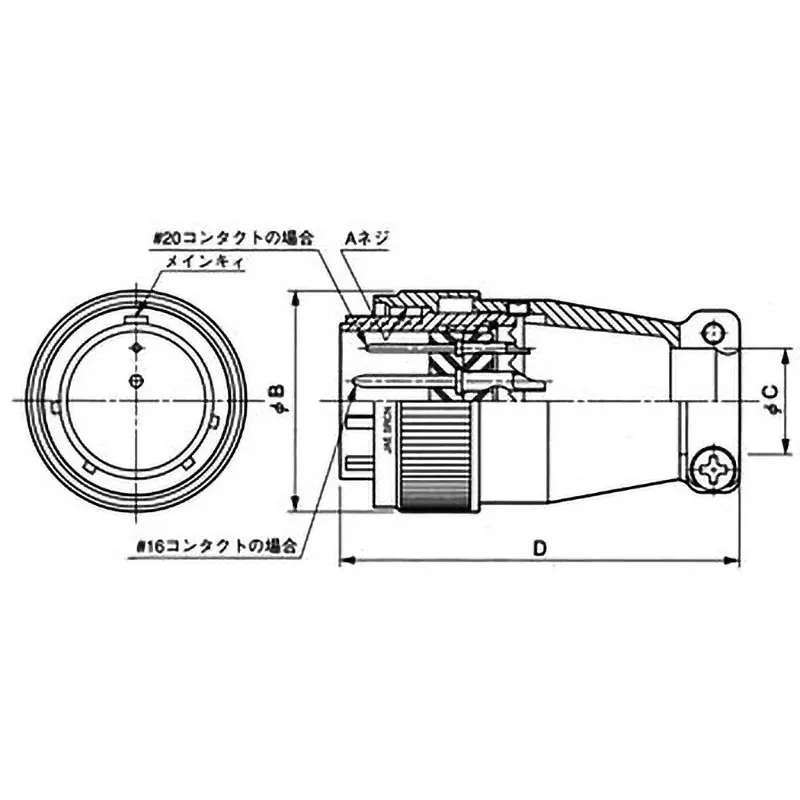

Dimension D (Φmm) |
47±2 |
Suitable For |
(For cable relay / socket insert) SRCN1A13-3S (Panel mounting / socket insert) SRCN2A13-3S |
Country of Origin |
Japan |
Operating Temperature Range |
-25 to +85°C |
Import Country |
Direct Import from Japan |
Finish Type |
Shell, barrel, coupling nut, end bell, clamp saddle: Nickel plated (pear) Contact: Silver plated Retaining ring: Nickel plated Set screw: Nickel plated (black) Cross-recessed pan head screw: Nickel plated |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Shell Size |
13 |
Connector Shape |
Straight plug |
Pack of |
1 Pcs |
Dimension B (Φmm) |
21.2±0.8 |
Specifications |
Conforms to JIS C 5432 standard <br> UL certified product |
Dimension A |
M18x1 |
Terminal Connection Type |
For soldering |
Insulation_Resistance (MΩ) |
1000 |
Dimension C (Φmm) |
8.5±0.5 |
