Ships within 25 days
View
View
View
View
| Type of Product | Straight Plug Pin / Socket Insert |
| Model No | N/MS3106B14S-7P |
| Type | Round Type |
| RoHS Directive | Correspondence |
Type of Product |
Straight Plug Pin / Socket Insert |
Model No |
N/MS3106B14S-7P |
Type |
Round Type |
RoHS Directive |
Correspondence |
Rated Voltage (V) |
AC500/DC700 |

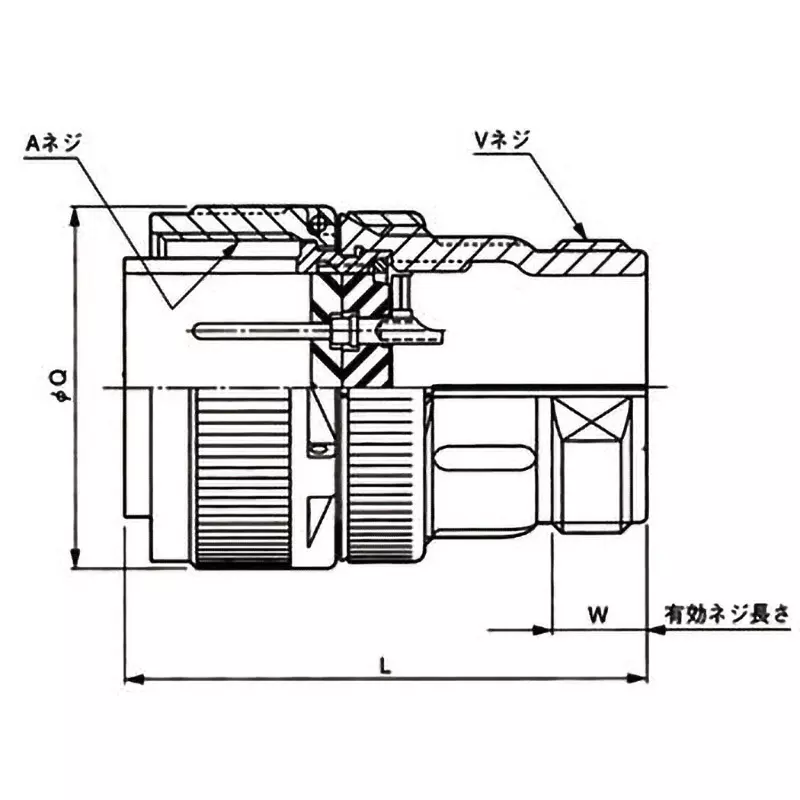

Dimensions A (mm) |
7/8-20UNEF-2B |
Monotaro ID |
34971151 |
Rated Current (A) |
13 |
No. of Pole |
3 |
Connection Type |
Screw |
Shape |
Straight |
Country of Origin |
Japan |
Operating Temperature Range |
-55 to +125°C |
Import Country |
Direct Import from Japan |
Finish Type |
(Contact part) Silver plating |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Shell Size |
14S |
Pack of |
1 Pcs |
Contact Size |
#16 |
Material/Finish |
(Shell, Barrel, Coupling Nut, End Bell, Assembly Nut) Aluminum Alloy / Zinc Plated (Insulator) Synthetic Resin (Contact) Copper Alloy / Silver Plated (Linning Ring) Copper Alloy / Zinc Plated |
Trusco Part No. |
417-9552 |
Dimension Q (mm) |
28.6(±0.8) |
Insulation_Resistance (MΩ) |
5000 mΩ or more |
Contact Shape |
Male |
Dimension W |
9.52 mm or more |
Dimension L (mm) |
42.88 or less |
Dimension V (mm) |
3/4-20UNEF-2A |
