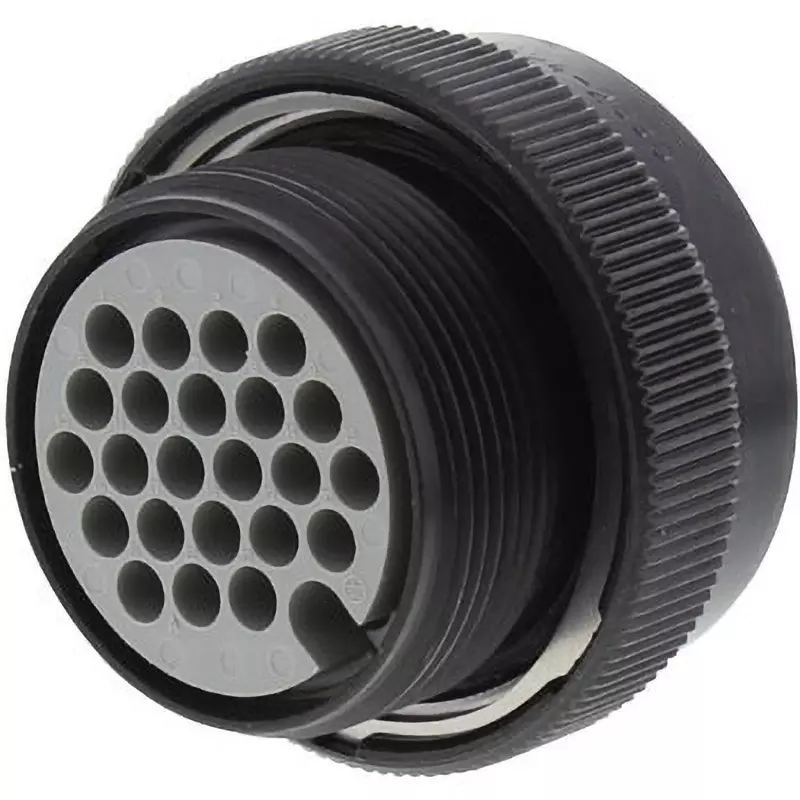

| Type of Product | Jl05 Series Plug |
| Connection Method | Crimping |
| Model No | JL05-6A22-22SC-F0-R |
| Type | Round type |
Type of Product |
Jl05 Series Plug |
Connection Method |
Crimping |
Model No |
JL05-6A22-22SC-F0-R |
Type |
Round type |
Monotaro ID |
41194921 |
Rated Current (A) |
#12/(#12)23(#14)17(#16)13, #8/(#8)46(#10)33(#12)23 |
No. of Pole |
4 |
Connection Type |
One touch |
Shape |
Straight |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Shell Size |
22 |
Pack of |
1 Pcs |
Contact Size |
#8 |
Material/Finish |
(Coupling nut, barrel) Aluminum alloy / Zinc plating (Black interference color trivalent chromate film), (Base insulator) Synthetic resin, (Cover insulator) Synthetic resin, (Contact) Copper alloy / Silver plating, (Retaining ring ) Copper alloy / zinc plating (black interference color trivalent chromate film), (stop ring) stainless steel, (weave spring) stainless steel, (earth lug) copper alloy / silver plating |
Trusco Part No. |
417-8734 |
Contact Shape |
Socket |
Sequence Number |
22-22 |
Matching Connector |
JL05-2A, JL05-2L |
