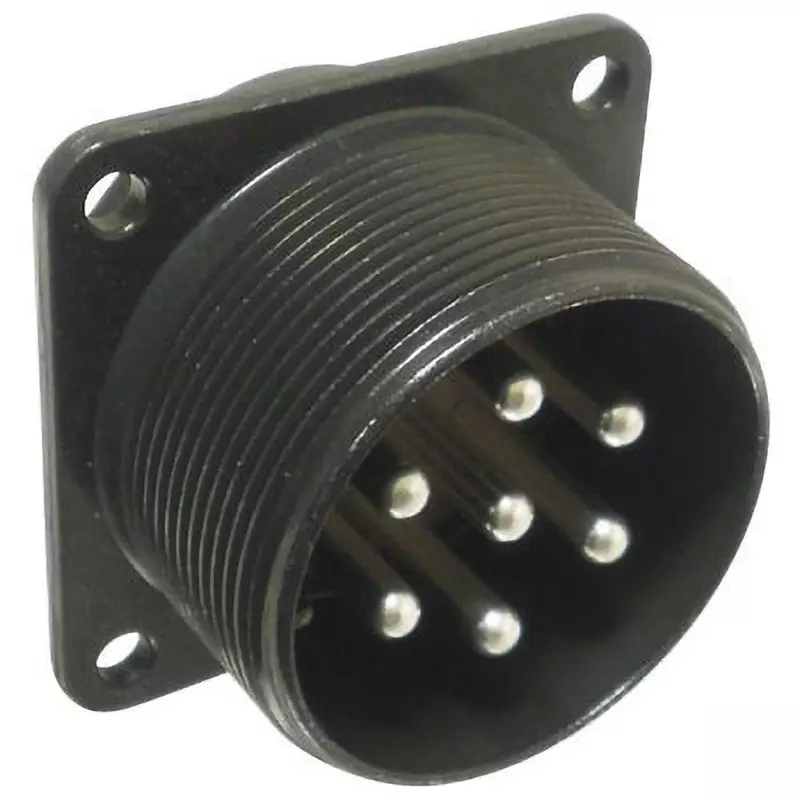

| Type of Product | Panel Mounting Receptacle Pin / Socket Insert |
| Model No | N/MS3102A14S-2P |
| Type | Round type |
| Rated Voltage (V) | AC200/DC250 |
Type of Product |
Panel Mounting Receptacle Pin / Socket Insert |
Model No |
N/MS3102A14S-2P |
Type |
Round type |
Rated Voltage (V) |
AC200/DC250 |

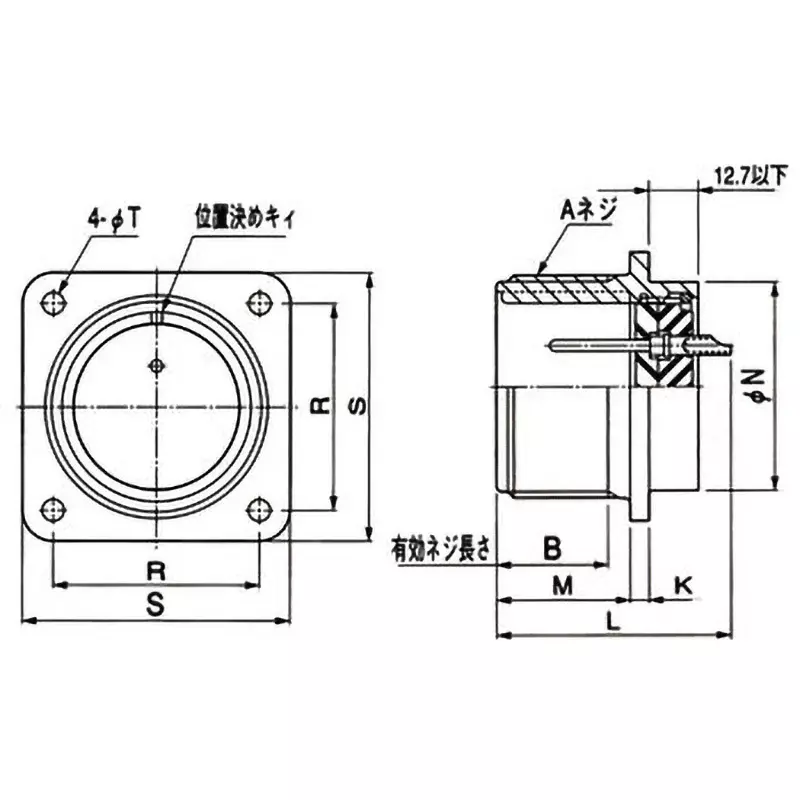

Dimensions A (mm) |
7/8UNEF-2A |
Monotaro ID |
34970415 |
Rated Current (A) |
13 |
No. of Pole |
4 Pole |
Connection Type |
Screw |
Shape |
Straight |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Finish Type |
(Contact part) Silver plating |
Dimensions B (mm) |
9.52 |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Shell Size |
14S |
Pack of |
1 Pcs |
Contact Size |
#16 |
Material/Finish |
(Shell, Barrel, Coupling Nut, End Bell, Assembly Nut) Aluminum Alloy / Zinc Plated (Insulator) Synthetic Resin (Contact) Copper Alloy / Silver Plated (Linning Ring) Copper Alloy / Zinc Plated |
Trusco Part No. |
417-8882 |
Dimension L (mm) |
30.25 or less |
Dimension K |
1.57 to 3.96 mm |
Dimension n (mm) |
23.01 mm (0 to -4.78) |
Dimension S |
30.18 mm (±0.79) |
Dimension R |
23.01 mm (±0.13) |
Dimension T |
3.05 mm (+0.25 to -0.13) |
Dimensions M (mm) |
14.27(+0.79 to 0) |
