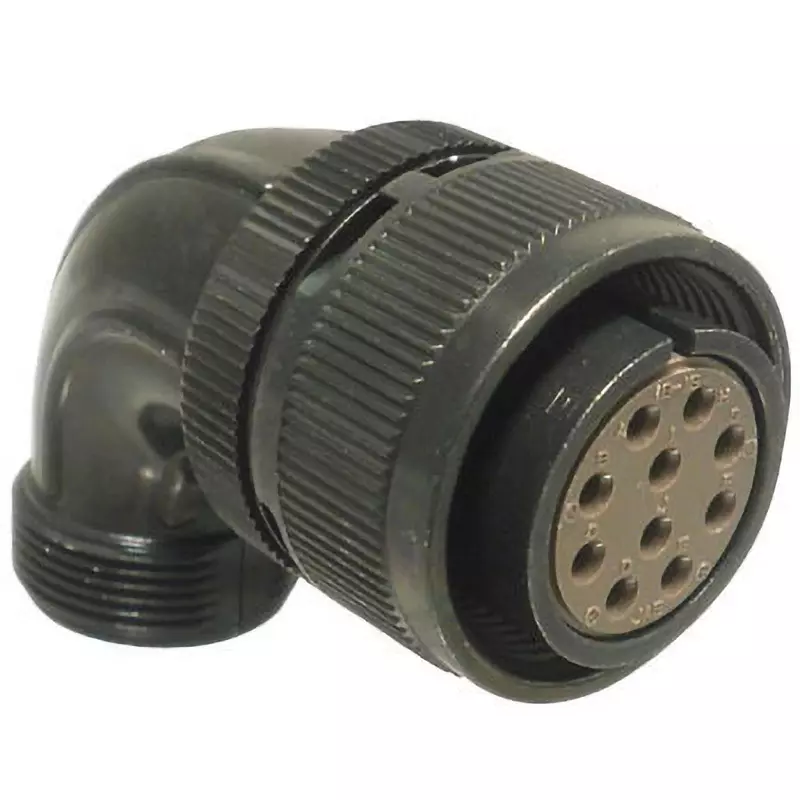

| Type of Product | Right Angle Plug / Socket Insert |
| Model No | N/MS3108B24-28S |
| Type | Round type |
| RoHS Directive | Correspondence |
Type of Product |
Right Angle Plug / Socket Insert |
Model No |
N/MS3108B24-28S |
Type |
Round type |
RoHS Directive |
Correspondence |
Rated Voltage (V) |
AC200/DC250 |

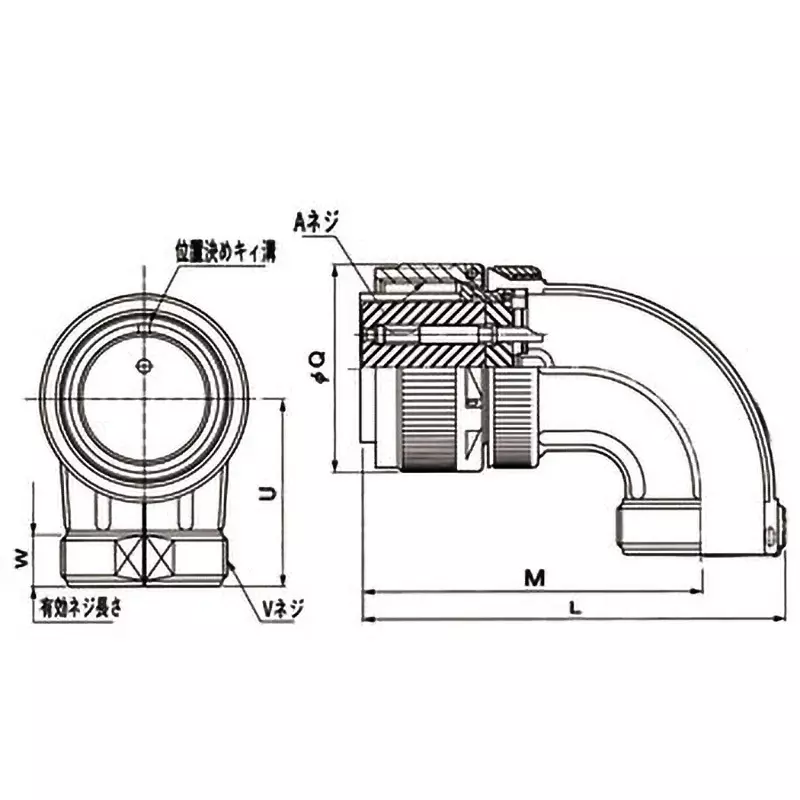

Dimensions A (mm) |
1-1/2-18UNEF-2B |
Monotaro ID |
34972287 |
Rated Current (A) |
13 |
No. of Pole |
24 Pole |
Connection Type |
Screw |
Country of Origin |
Japan |
Operating Temperature Range |
-55 to +125°C |
Import Country |
Direct Import from Japan |
Finish Type |
(Contact part) Silver plating |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Shell Size |
24 |
Pack of |
1 Pcs |
Contact Size |
#16 |
Material/Finish |
(Shell, Barrel, Coupling Nut, End Bell, Assembly Nut) Aluminum Alloy / Zinc Plated (Insulator) Synthetic Resin (Contact) Copper Alloy / Silver Plated (Linning Ring) Copper Alloy / Zinc Plated |
Trusco Part No. |
418-0534 |
Dimension Q (mm) |
43.7(±0.8) |
Contact Shape |
Female |
Dimension W |
9.52 mm or more |
Dimension L (mm) |
86.5 or less |
Dimension V (mm) |
1-7/16-18UNEF-2A |
Dimensions M (mm) |
67.1(±0.8) |
Dimension U (mm) |
34.9(±0.8) |
