| Type of Product | D-Sub Connector Electromagnetic Interference |
| Model No | DE-9SF-N |
| Type | Socket |

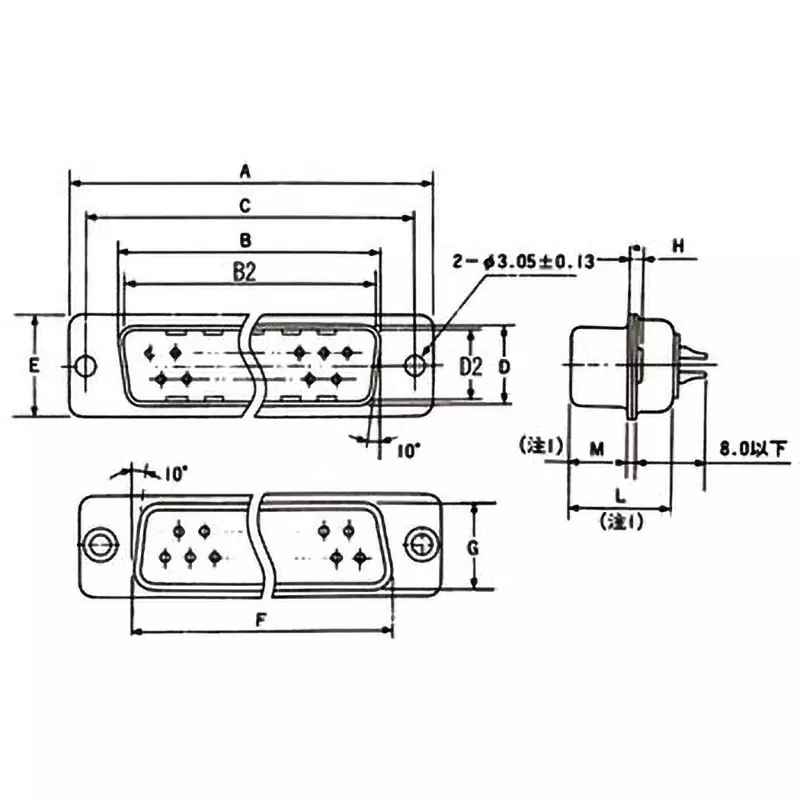

| Dimensions A (mm) | 30.8(±0.5) |
Type of Product |
D-Sub Connector Electromagnetic Interference |
Model No |
DE-9SF-N |
Type |
Socket |
Dimensions A (mm) |
30.8(±0.5) |
Monotaro ID |
34986147 |
Rated Current (A) |
5 (per contact core) |
No. of Pole |
9 |
Dimensions E (mm) |
12.6(±0.5) |
Dimensions F (mm) |
19.3(±0.4) |
Shape |
Straight |
Dimensions g (mm) |
10.7(±0.4) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Finish Type |
(contact part) Gold plating |
Dimensions C (mm) |
24.99(±0.13) |
Dimensions B (mm) |
16.26(±0.25) |
Dimensions H (mm) |
1.2(±0.4) |
Dimensions D (mm) |
7.82(±0.25) |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Pack of |
1 Pcs |
Material/Finish |
(Shell) Steel/Nickel plated, (Insulator) Glass-filled PBT/UL94V-0/Black |
Trusco Part No. |
417-8343 |
Insulation_Resistance (MΩ) |
5000 or less |
Dimension K |
3.05(±0.25) mm |
