| Type of Product | D-Sub Connector Crimp Type High Density Compact |
| Connection Method | Crimping |

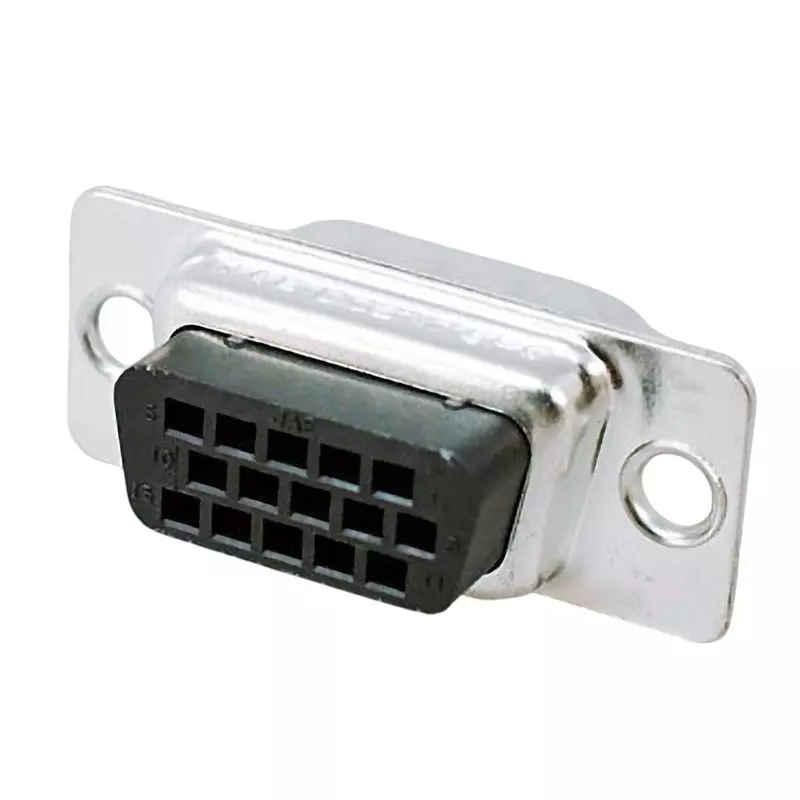

| Model No | D02-M15PG-N-F0 |
| Type | Square |
Type of Product |
D-Sub Connector Crimp Type High Density Compact |
Connection Method |
Crimping |
Model No |
D02-M15PG-N-F0 |
Type |
Square |
Rated Voltage (V) |
AC300 |
Monotaro ID |
41191342 |
Contact Resistance |
(Press type) 20 mΩ or less, (Machine type) 10 mΩ or less |
Rated Current (A) |
3 or less |
No. of Pole |
15 |
Surface Treatment |
Tin plating (shell) |
Connection Type |
Screw |
Shape |
Straight |
Country of Origin |
Japan |
Operating Temperature Range |
-55 to +85°C |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Withstand voltage (V / min) |
AC900 |
Pack of |
1 Pcs |
Applicable Wire Range AWG |
#22 to #28 |
Insulation_Resistance (MΩ) |
500 or more |
Contact Shape |
Male |
Applicable Board Dimensions (mm) |
1.6 (thickness) |
