| Type of Product | D-Sub Connector Metal Hood Electromagnetic Interference |
| Model No | DA-C4-J10 |
| Type | Junction shell |
| RoHS Directive | Correspondence |
Type of Product |
D-Sub Connector Metal Hood Electromagnetic Interference |
Model No |
DA-C4-J10 |
Type |
Junction shell |
RoHS Directive |
Correspondence |

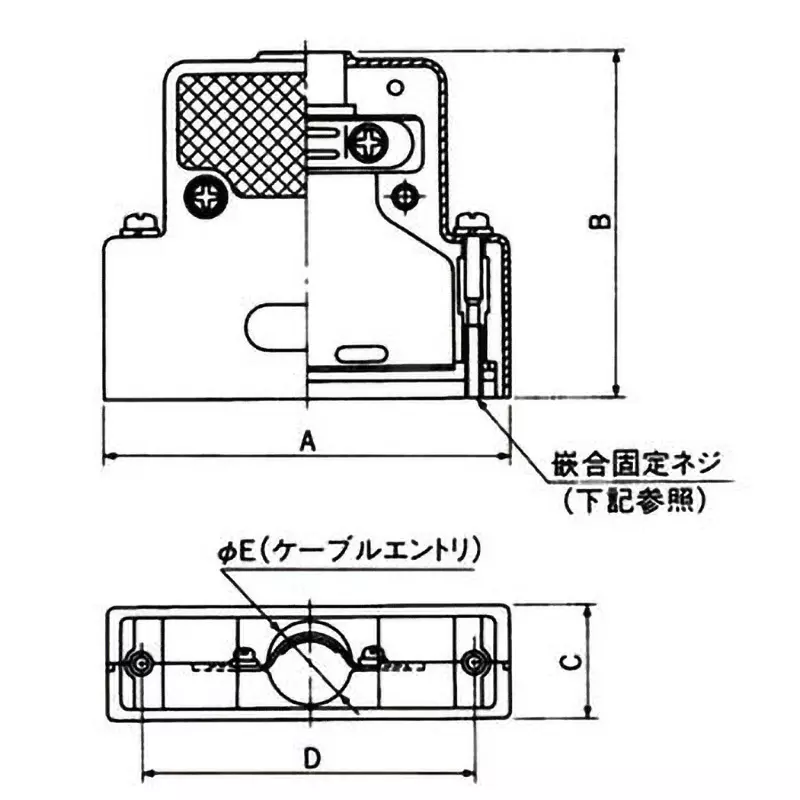

Dimensions A (mm) |
43(±0.5) |
Monotaro ID |
34986192 |
Dimensions E (mm) |
10(±0.5) |
Suitable For |
Shell size DA |
Country of Origin |
Japan |
Operating Temperature Range |
-65to+125，-55to+105，-55to+125°C |
Import Country |
Direct Import from Japan |
Dimensions C (mm) |
16(±0.5) |
Dimensions B (mm) |
46(±0.5) |
Dimensions D (mm) |
33.32(±0.13) |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Shell Size |
Applicable / 15 pin |
Connector Shape |
Junction shell |
Pack of |
1 Pcs |
Screw Size |
M2.6 |
Specifications |
Screw type: Short screw |
Material/Finish |
(Hood) Aluminum die-casting / Nickel plating, (Clamp saddle / Fitting fixing screw) Steel / Nickel plating |
Trusco Part No. |
417-7681 |
