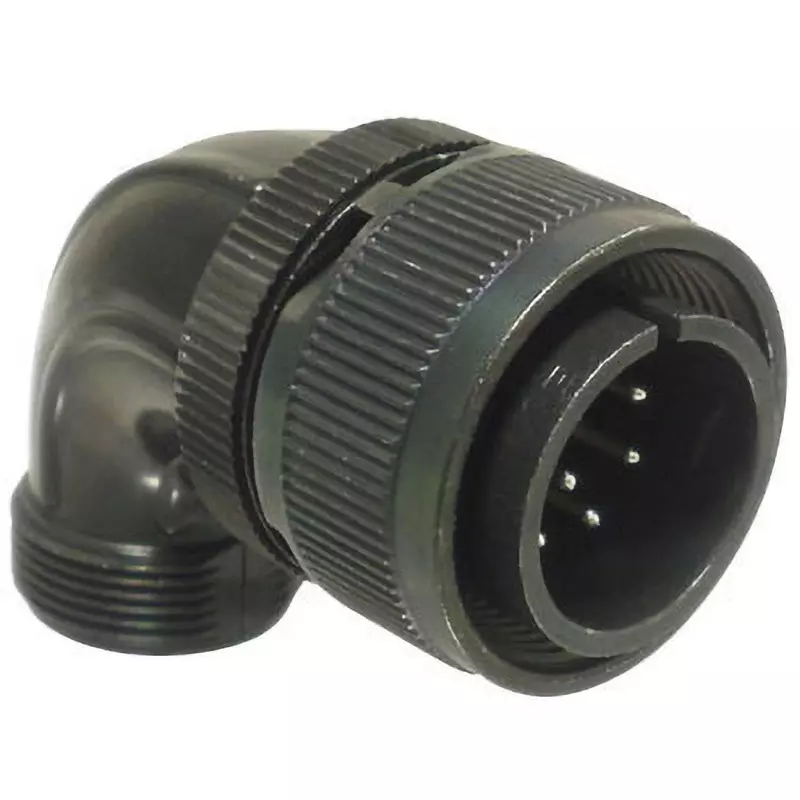

| Type of Product | Right Angle Plug / Socket Insert |
| Model No | N/MS3108B12S-3P |
| Type | Round type |
| RoHS Directive | Correspondence |
Type of Product |
Right Angle Plug / Socket Insert |
Model No |
N/MS3108B12S-3P |
Type |
Round type |
RoHS Directive |
Correspondence |
Rated Voltage (V) |
AC500/DC700 |

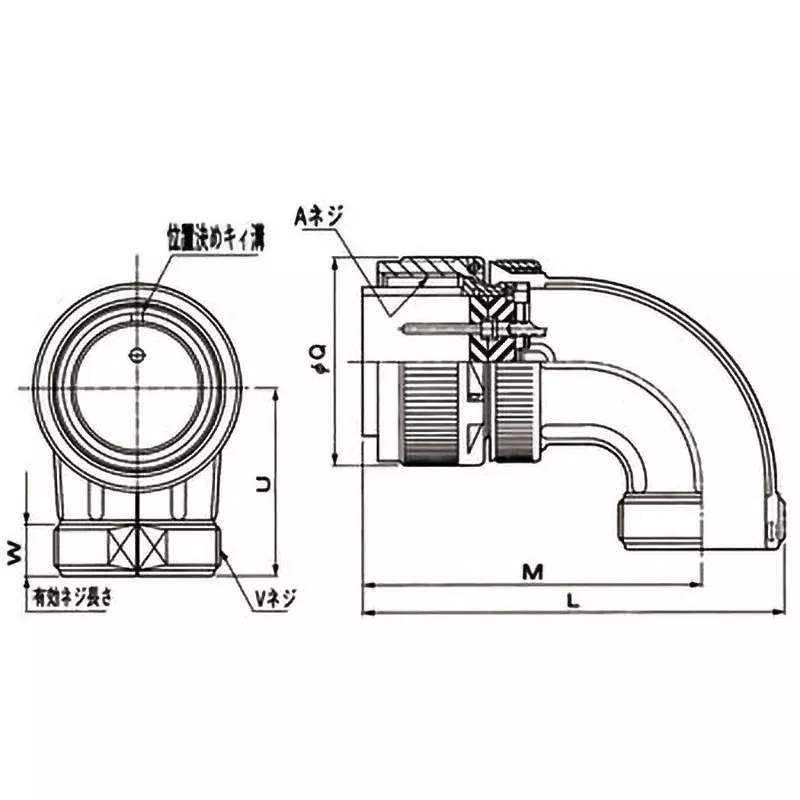

Dimensions A (mm) |
3/4-20UNEF-2B |
Monotaro ID |
34971815 |
Rated Current (A) |
13 |
No. of Pole |
2 Pole |
Connection Type |
Screw |
Country of Origin |
Japan |
Operating Temperature Range |
-55 to +125°C |
Import Country |
Direct Import from Japan |
Finish Type |
(Contact part) Silver plating |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Shell Size |
12S |
Pack of |
1 Pcs |
Contact Size |
#16 |
Material/Finish |
(Shell, Barrel, Coupling Nut, End Bell, Assembly Nut) Aluminum Alloy / Zinc Plated (Insulator) Synthetic Resin (Contact) Copper Alloy / Silver Plated (Linning Ring) Copper Alloy / Zinc Plated |
Dimension Q (mm) |
25.4(±0.8) |
Contact Shape |
Male |
Dimension W |
9.52 mm or more |
Dimension L (mm) |
50.8 or less |
Dimension V (mm) |
5/8-24UNEF-2A |
Sequence Number |
12S-3 |
Dimensions M (mm) |
41.7(±0.8) |
Dimension U (mm) |
25.4(±0.8) |
