| Type of Product | D-Sub Connector Plastic Hood Electromagnetic Interference |
| Model No | DB-C8-J10-F4-1R |
| Type | Long screw |
| RoHS Directive | Correspondence |
Type of Product |
D-Sub Connector Plastic Hood Electromagnetic Interference |
Model No |
DB-C8-J10-F4-1R |
Type |
Long screw |
RoHS Directive |
Correspondence |

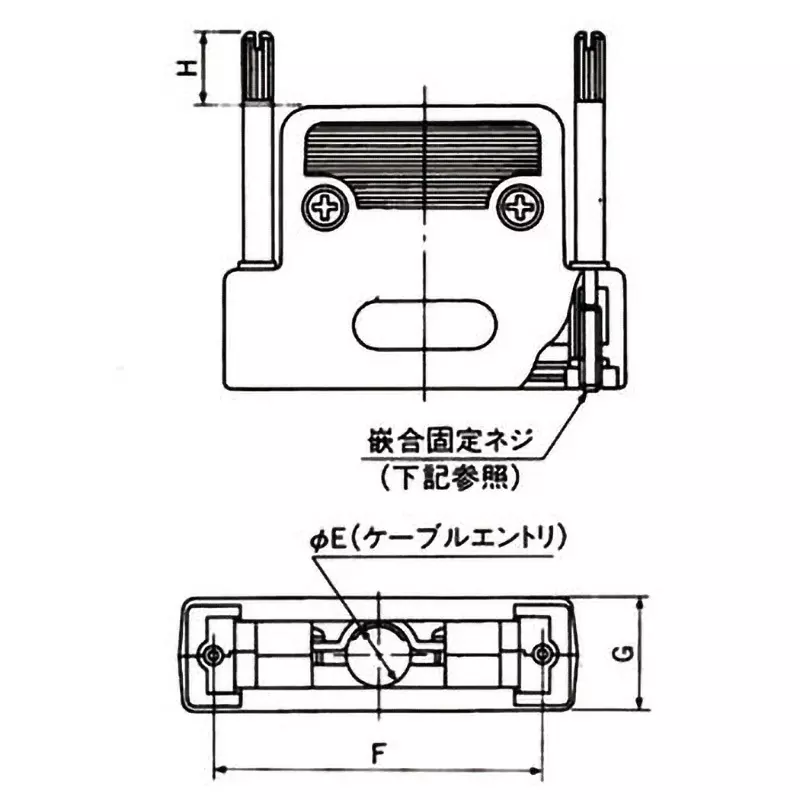

Dimensions A (mm) |
41.5(±0.5) |
Monotaro ID |
34986323 |
Screws |
Long screw M2.6 |
Dimensions E (mm) |
10(±0.5) |
Dimensions F (mm) |
47.04(±0.13) |
Dimensions g (mm) |
16(±1) |
Country of Origin |
Japan |
Operating Temperature Range |
-65to+125，-55to+105，-55to+125°C |
Import Country |
Direct Import from Japan |
Dimensions C (mm) |
40(±0.5) |
Dimensions B (mm) |
18(±0.5) |
Dimensions H (mm) |
About 10 |
Dimensions D (mm) |
58.8(±0.5) |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Shell Size |
Applicable / 25 pin |
Connector Shape |
Junction shell |
Pack of |
1 Pcs |
Screw Size |
(Fitting screw) M2.6 |
Suitable Cable Outer Dia. (Φmm) |
10 |
Material/Finish |
(Hood) ABS resin / nickel plating, (clamp saddle / fitting fixing screw) steel / nickel plating |
Trusco Part No. |
417-7932 |
