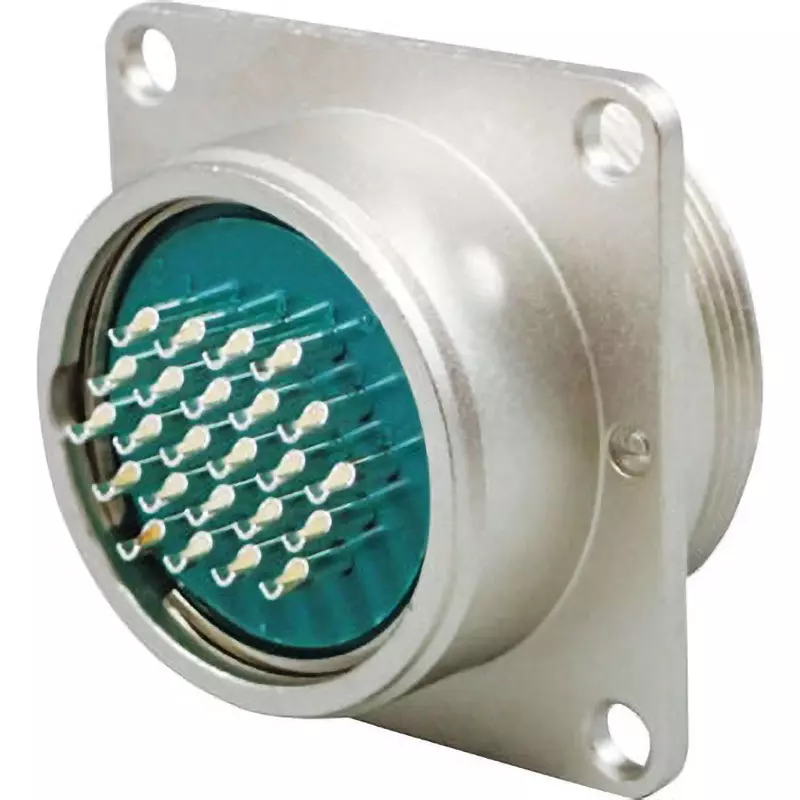

| Type of Product | Round Connector |
| Model No | SRCN2A25-24S |
| Withstand Voltage | AC1000Vr.ms (1 minute) |
| Material | Shell, barrel, coupling nut, end bell, clamp saddle: Aluminum alloy insulator: Synthetic resin (UL94V-0, green) <br> Contact: Copper alloy retaining ring: Copper alloy set screw: Steel cross-recessed pan head machine screw: Steel |
Type of Product |
Round Connector |
Model No |
SRCN2A25-24S |
Withstand Voltage |
AC1000Vr.ms (1 minute) |
Material |
Shell, barrel, coupling nut, end bell, clamp saddle: Aluminum alloy insulator: Synthetic resin (UL94V-0, green) <br> Contact: Copper alloy retaining ring: Copper alloy set screw: Steel cross-recessed pan head machine screw: Steel |
Type |
Socket insert |
Monotaro ID |
8518072 |
Contact Resistance |
5 mΩ |
Rated Current (A) |
5 |
No. of Pole |
24 pole |
Suitable Wire |
AWG: # 20 below the conductor cross-sectional area: 0.5 mm <sup>2</sup> or less |

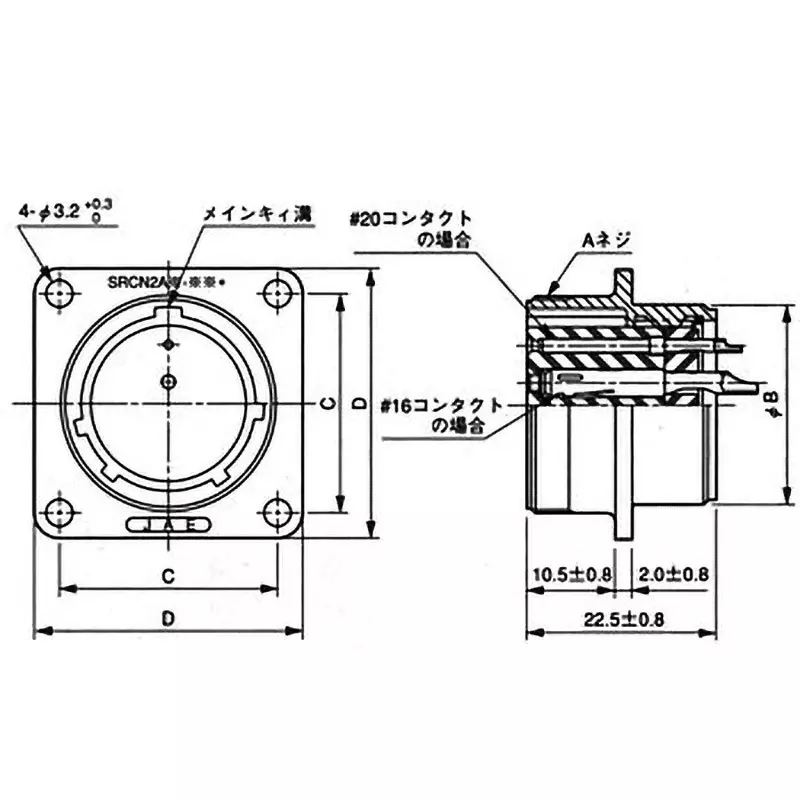

Dimension D (Φmm) |
35±0.5 |
Suitable For |
(Pin insert) SRCN6A25-24P |
Country of Origin |
Japan |
Operating Temperature Range |
-25 to +85°C |
Import Country |
Direct Import from Japan |
Finish Type |
Shell, barrel, coupling nut, end bell, clamp saddle: nickel plating (pear) <br> Contact: Silver plating Retaining ring: Nickel plating Set screw: Nickel plating (black) <br> Cross-recessed pan head screw: nickel plated |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Shell Size |
25 |
Connector Shape |
Panel mounting receptacle |
Pack of |
1 Pcs |
Dimension B (Φmm) |
28±0.3 |
Specifications |
Conforms to JIS C 5432 standard <br> UL certified product |
Dimension A |
M30x1 |
Terminal Connection Type |
For soldering |
Insulation_Resistance (MΩ) |
1000 |
Dimension C (Φmm) |
29.00±0.2 |
