Ships within 25 days
View
View
View
View

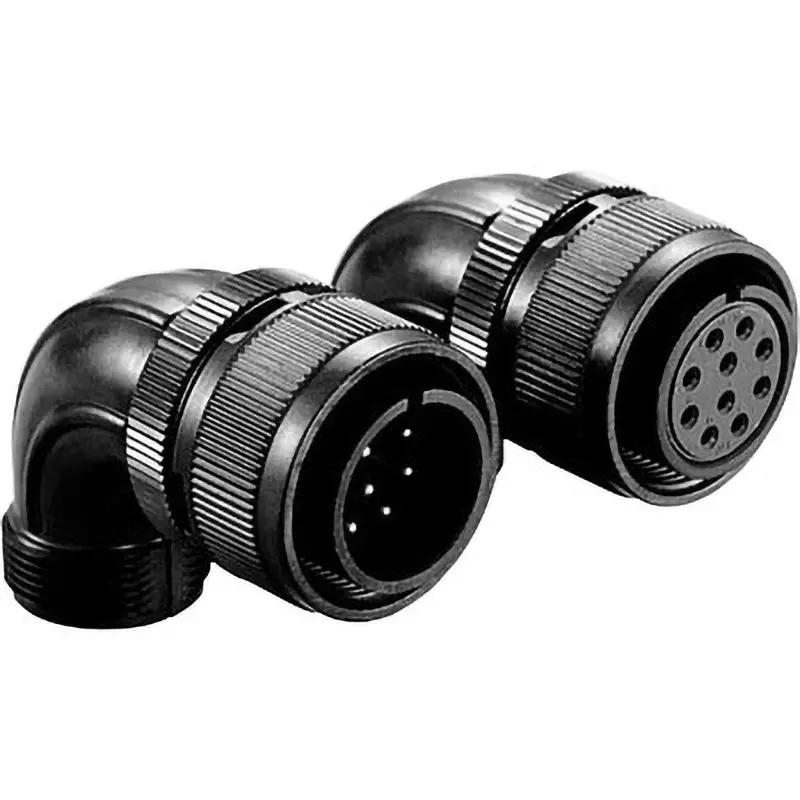

| Type of Product | Right Angle Plug / Socket Insert |
| Model No | N/MS3108B18-21P |
| Type | Round type |
| Rated Voltage (V) | AC500/DC700 |
Type of Product |
Right Angle Plug / Socket Insert |
Model No |
N/MS3108B18-21P |
Type |
Round type |
Rated Voltage (V) |
AC500/DC700 |
Dimensions A (mm) |
1-1/8-18UNEF-2B |
Monotaro ID |
18480903 |
Rated Current (A) |
23 |
No. of Pole |
3 Pole |
Connection Type |
Screw |
Country of Origin |
Japan |
Operating Temperature Range |
-55 to +125°C |
Import Country |
Direct Import from Japan |
Finish Type |
(Contact part) Silver plating |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Shell Size |
18 |
Pack of |
1 Pcs |
Contact Size |
#12 |
Material/Finish |
(Shell, barrel, coupling nut, end bell, assembly nut) Aluminum alloy / galvanized, (insulator) synthetic resin, (contact) copper alloy / silver plated, (linning ring) copper alloy / galvanized |
Dimension Q (mm) |
34.1(±0.8) |
Insulation_Resistance (MΩ) |
5000 mΩ or More |
Contact Shape |
Male |
Dimension W |
9.52 mm or more |
Dimension L (mm) |
68.3 or less |
Dimension V (mm) |
1-20UNEF-2A |
Sequence Number |
18-21 |
Dimensions M (mm) |
54.4(±0.8) |
Dimension U (mm) |
32.1(±0.8) |
