| Type of Product | Relay Connection Connector |
| Model No | ELR-04V |
| Withstand Voltage | AC 1500V, 1 minute |
| Material | Nylon 6/UL94V-0 |
Type of Product |
Relay Connection Connector |
Model No |
ELR-04V |
Withstand Voltage |
AC 1500V, 1 minute |
Material |
Nylon 6/UL94V-0 |
Type |
Re-sectorable housing |
Rated Voltage (V) |
Max 300 V AC/DC |
Monotaro ID |
34954141 |
Rated Current (A) |
Max 10 AC/DC |
Standard |
Recognised E 60389 Certified LR 20812 R75052 |
No. of Pole |
4 |
Color |
White |
Suitable For |
LLM-01T-P1.3E，LLM-41T-P1.3E |
Country of Origin |
Japan |
Operating Temperature Range |
-25 to +90℃ (including temperature rise during energization) |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Japan Solderless Terminals Mfg. Co., Ltd. |

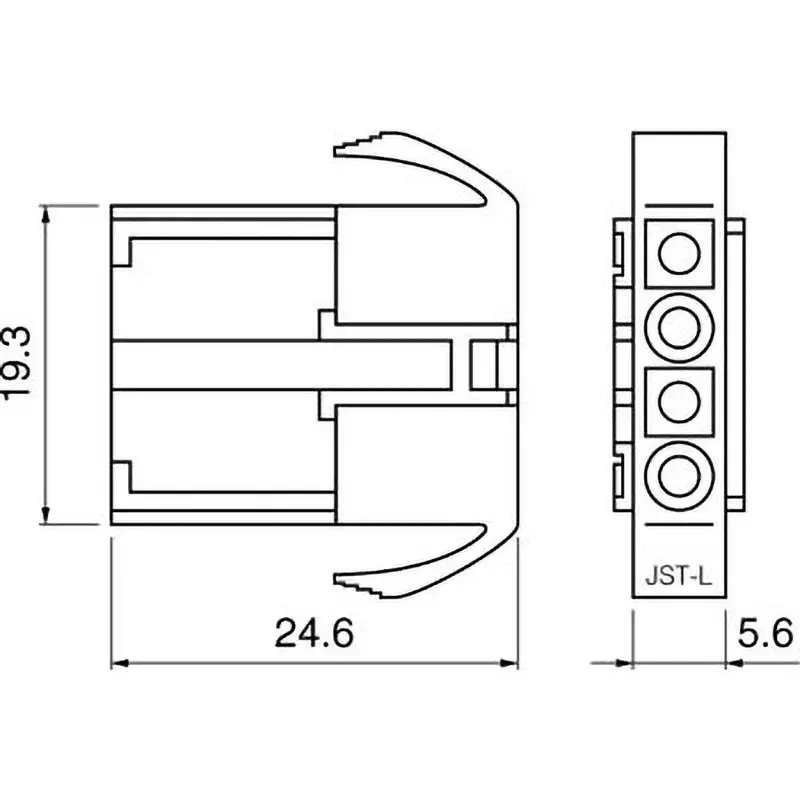

Dimension A (Φmm) |
5.6 |
Pack of |
10 Pcs |
Insulation Resistance (MOhm) |
1000 or more |
Contact Resistance (ohm) |
Initial: 7 mΩ or less After environmental test: 10 mΩ or less |
Dimension B (Φmm) |
24.6 |
Compatible Panel Thickness (mm) |
0.8 to 2.0 |
Specifications |
RoHS compliant product |
Trusco Part No. |
413-7973 |
Dimension C (Φmm) |
19.3 |
Wire Crimping Range (AWG#) |
26 to 16 |
