| Type of Product | Relay Connection Connector |
| Model No | SMR-12V-N |
| Withstand Voltage | AC 1500V, 1 minute |
| Material | Nylon 6/UL94V-0 |
Type of Product |
Relay Connection Connector |
Model No |
SMR-12V-N |
Withstand Voltage |
AC 1500V, 1 minute |
Material |
Nylon 6/UL94V-0 |
Type |
Receptacle housing (for pin contact) |
Rated Voltage (V) |
Max 250 V AC/DC |
Monotaro ID |
34954516 |
Rated Current (A) |
Max 3 AC/DC |
Standard |
Recognised E 60389 Certified LR 20812 R50120150 |
No. of Pole |
12 |
Color |
Natural (white) |
Country of Origin |
Japan |
Operating Temperature Range |
-25 to +85℃ (including temperature rise during energization) |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Japan Solderless Terminals Mfg. Co., Ltd. |

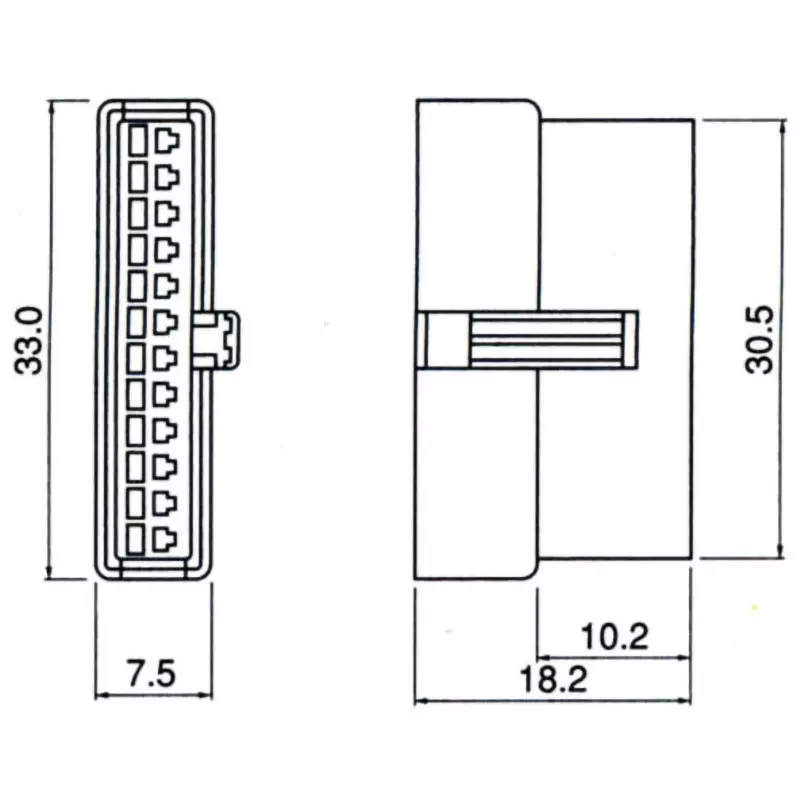

Dimension A (Φmm) |
33 |
Pack of |
10 Pcs |
Insulation Resistance (MOhm) |
500 or more |
Contact Resistance (ohm) |
Initial: 10 mΩ or less After environmental test: 20 mΩ or less |
Dimension B (Φmm) |
7.5 |
Compatible Panel Thickness (mm) |
0.5 to 2.0 |
Specifications |
RoHS compliant product |
Dimension C (Φmm) |
18.2 |
Wire Crimping Range (AWG#) |
28 to 22 |
Suitable Terminal |
SYM-001T-P0.6, BYM-001T-P0.6 |
Crimping Range |
0.08 to 0.33 mm² |
