| Type of Product | PCB Connector |
| Model No | XAP-14V-1 |
| Withstand Voltage | 1000 VAC for 1 minute |
| Material | Nylon 66 / UL94V-0 |
Type of Product |
PCB Connector |
Model No |
XAP-14V-1 |
Withstand Voltage |
1000 VAC for 1 minute |
Material |
Nylon 66 / UL94V-0 |
Type |
Standard |
RoHS Directive |
Correspondence |
Rated Voltage (V) |
250 V AC/DC |
Monotaro ID |
34953816 |
Rated Current (A) |
3 AC / DC, (When using AWG # 22) |
Standard |
Recognised E 60389 Certified LR 20812 R9851220 |
No. of Pole |
14 |
Color |
Natural (white) |
Suitable For |
Terminal: BxA-001T-P0.6, BxA-01T-P0.6 Post with base: S / B * B-xASK-1 (LF) (SN) |
Country of Origin |
Japan |
Operating Temperature Range |
-25 to +85℃ (including temperature rise during energization) |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Japan Solderless Terminals Mfg. Co., Ltd. |

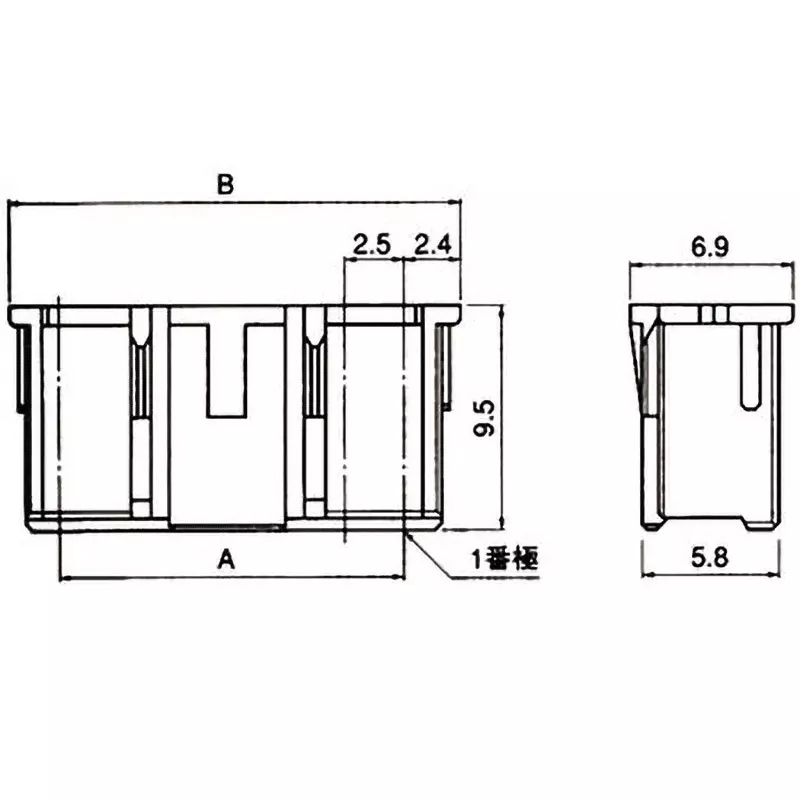

Dimension A (Φmm) |
32.5 |
Pack of |
10 Pcs |
Insulation Resistance (MOhm) |
1000 or more |
Contact Resistance (ohm) |
Initial: 10 mΩ or less After environmental test: 20 mΩ or less |
Dimension B (Φmm) |
37.299999999999997 |
Specifications |
RoHS compliant product |
Suitable Circuit Board Thickness (mm) |
1.6 |
Wire Crimping Range (AWG#) |
28 to 20 |
