| Type of Product | Wire to Board Connector |
| Model No | 5267-06A-X |
| Withstand Voltage | AC1000V / 1 minute |
| Material | Wafer: Nylon 66 (with glass), UL94V-0 pin: Brass, Tin plating on copper |
Type of Product |
Wire to Board Connector |
Model No |
5267-06A-X |
Withstand Voltage |
AC1000V / 1 minute |
Material |
Wafer: Nylon 66 (with glass), UL94V-0 pin: Brass, Tin plating on copper |
Type |
PCB header |
Rated Voltage (V) |
(Maximum) 250 |
Monotaro ID |
8560632 |
Rated Current (A) |
(Maximum) 3 |
Standard |
UL file No .: E29179CSA File No .: LR19980 |
No. of Pole |
6 |
Surface Treatment |
PC tail: Tin (Sn) Base: Copper (Cu) |
Housing Material |
Nylon 66 (with glass) |
Contact Material |
Brass (CuZn) / Tin (Sn) |
Suitable For |
Housing: 5264 |
Country of Origin |
Japan |
Operating Temperature Range |
-40 to 105 (including temperature rise due to energization) |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Molex |

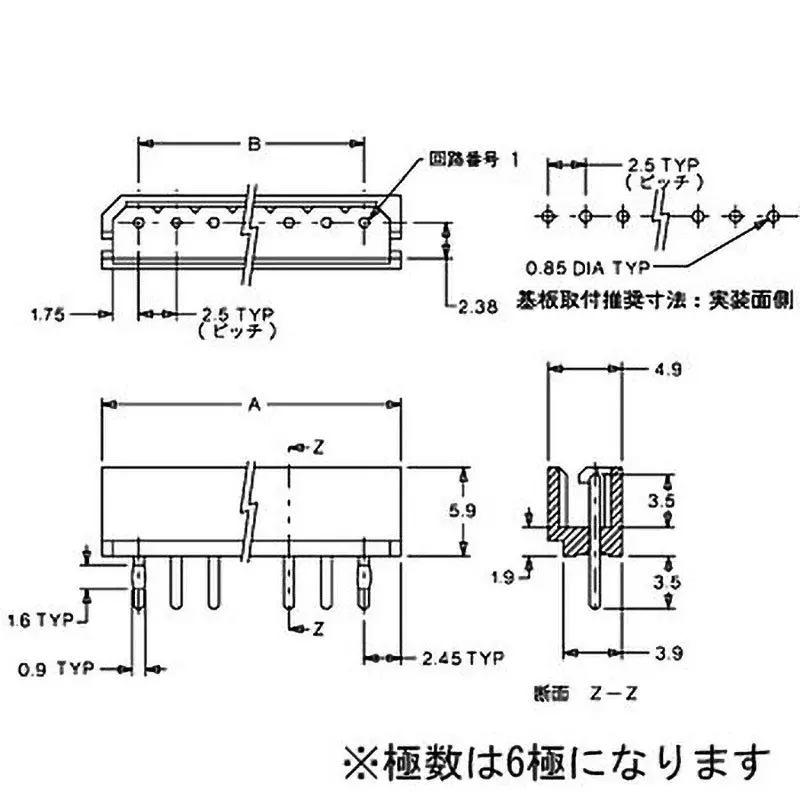

Cell Spacing (mm) |
2.5 |
Dimension A (Φmm) |
17.399999999999999 |
Pack of |
10 Pcs |
Length (mm) |
PC tail: 3.50 (.138 ″) |
Height (mm) |
5.90(.232″) |
Width (mm) |
4.90(.193″) |
Dimension B (Φmm) |
12.5 |
Specifications |
Compatible with ELV and RoHS |
Single or Double Strand |
1 |
