| Type of Product | Wire to Board Connector |
| Model No | 53258-0829 |
| Withstand Voltage | 1500V AC / 1 minute |
| Material | Wafer: PBTP (glass-filled) Pin: Brass, nickel base tin plating |
Type of Product |
Wire to Board Connector |
Model No |
53258-0829 |
Withstand Voltage |
1500V AC / 1 minute |
Material |
Wafer: PBTP (glass-filled) Pin: Brass, nickel base tin plating |
Type |
Wafer |
Rated Voltage (V) |
250 (maximum) |
Monotaro ID |
34886555 |
Rated Current (A) |
5.5 (maximum) |
Standard |
UL file No .: E29179CSA File No .: LR19980 |
No. of Pole |
8 |
Suitable For |
Housing: 51067 |
Country of Origin |
Japan |
Operating Temperature Range |
-40 to +105 (including temperature rise due to energization) |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Molex |
Cell Spacing (mm) |
3.5 |

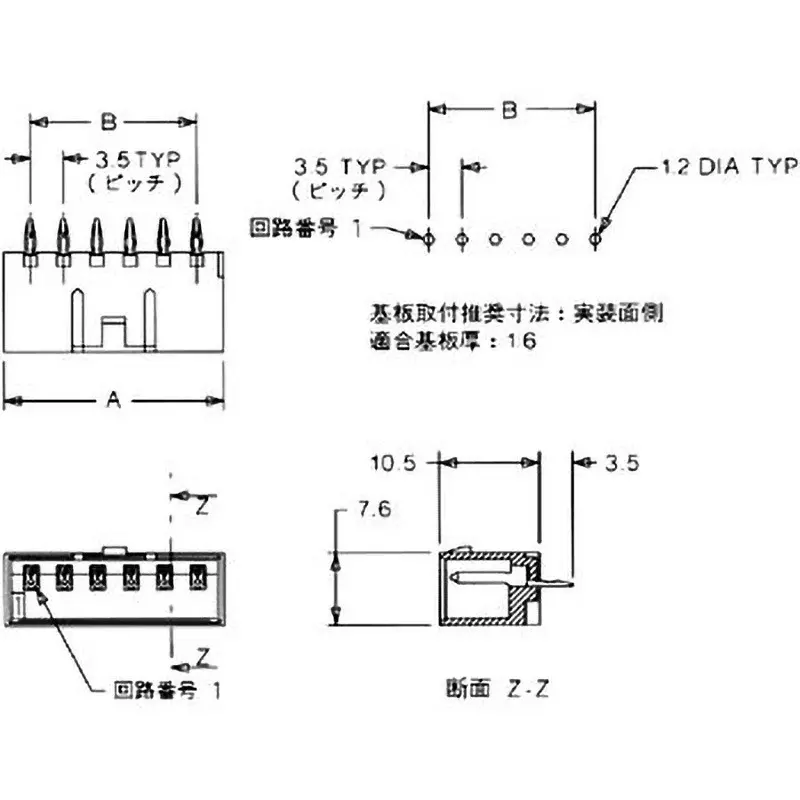

Dimension A (Φmm) |
30.1 |
Pack of |
10 Pcs |
Insulation Resistance (MOhm) |
1000 or more |
Contact Resistance (ohm) |
less than 10 |
Dimension B (Φmm) |
24.5 |
Flame Retardance |
UL94V-0 |
