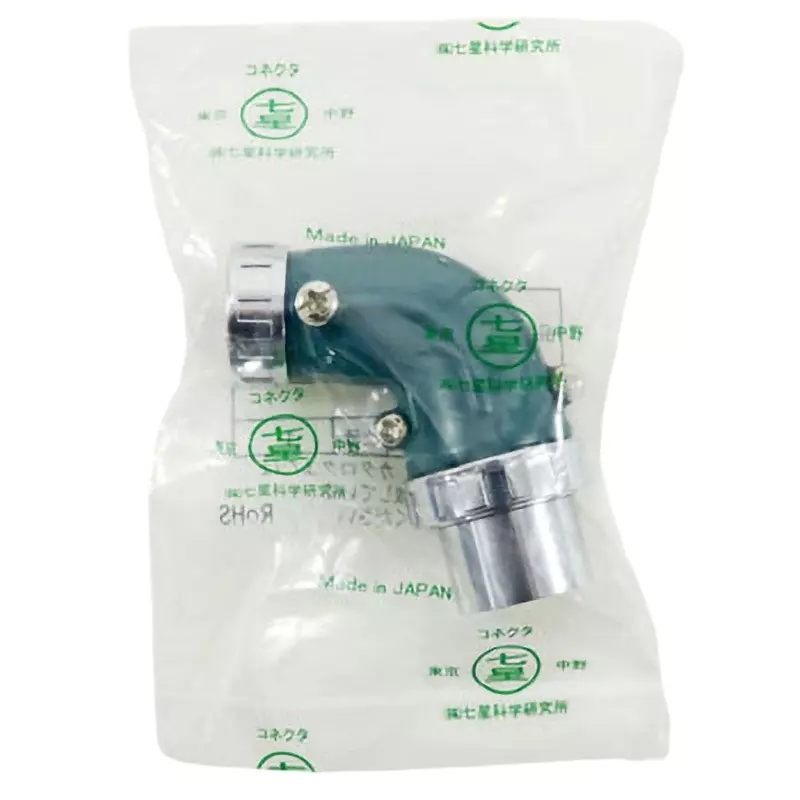

| Type of Product | Metal Joint Elbow Connector |
| Model No | NCS-253-LPM |
| Material | Shell: Zinc alloy, Chrome plating treatment, Insulator: Epoxy resin, Contact: Copper alloy, Nickel plating |
| Type | Round type |
Type of Product |
Metal Joint Elbow Connector |
Model No |
NCS-253-LPM |
Material |
Shell: Zinc alloy, Chrome plating treatment, Insulator: Epoxy resin, Contact: Copper alloy, Nickel plating |
Type |
Round type |
RoHS Directive |
Correspondence |
Rated Voltage (V) |
250 |
Monotaro ID |
10283105 |
Rated Current (A) |
10 |
No. of Pole |
3 |
Connection Type |
Screw |
Shape |
angle |
Country of Origin |
Japan |
Operating Temperature Range |
-40 to +120℃ |
Contact Type |
Male |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Nanaboshi Scientific Research Institute Co., Ltd. |
Shell Size |
25 |
Withstand voltage (V / min) |
2000 |
Connector Shape |
LPM |
Mass (g) |
46 |
Insulator Material |
Synthetic resin |
Suitable Cable Outer Dia. (Φmm) |
10.5 to 14 |
Material (Gasket) |
Synthetic rubber |
Conductor Cross Section Area |
2 mm² |
Trusco Part No. |
806-8076 |
