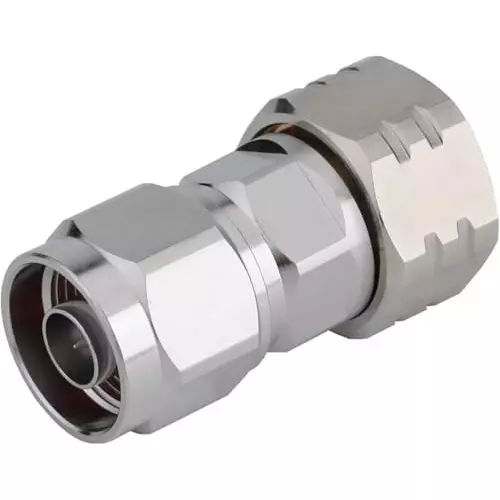

| Type of Product | 4.3/10 Mini DIN Adapter |
| Material | Brass |
| Contact Resistance | Outer Contact: ≤1 mΩ, Center Contact: ≤1 mΩ |
| Color | Silver |
Type of Product |
4.3/10 Mini DIN Adapter |
Material |
Brass |
Contact Resistance |
Outer Contact: ≤1 mΩ, Center Contact: ≤1 mΩ |
Color |
Silver |
Connector Type |

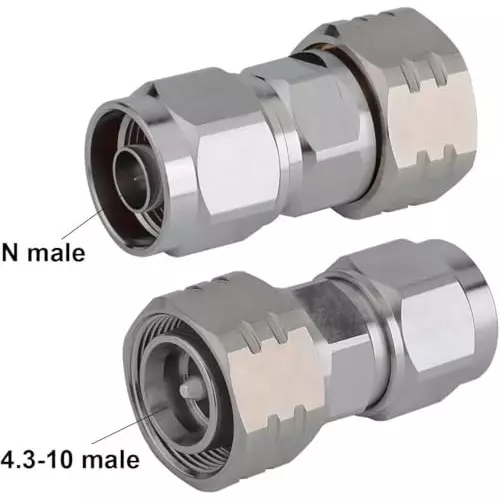

Male Plug to N-Male Plug |
Country of Origin |
India |
Insulation Material |
PTFE (Teflon) |
Impedance |
50 Ω |
Plating Type |
Tri-Alloy Plated |
Frequency |
DC 5.9 GHz |
Name of Manufacturer/Packer/Importer |
NBR Solutions |
Insertion Loss |
≤0.1 dB, PIM3: ≤ 160 dBc |
Compatible Device |
RF Applications, Coaxial Cable, Antennas, Wireless LAN Devices, Wi-Fi Radios External Antenna and so on |
Temperature |
-40 to +85°C |
VSWR |
≤1.10 |
Withstanding Voltage |
Dielectric: ≥2500 Vrms @50 Hz |
